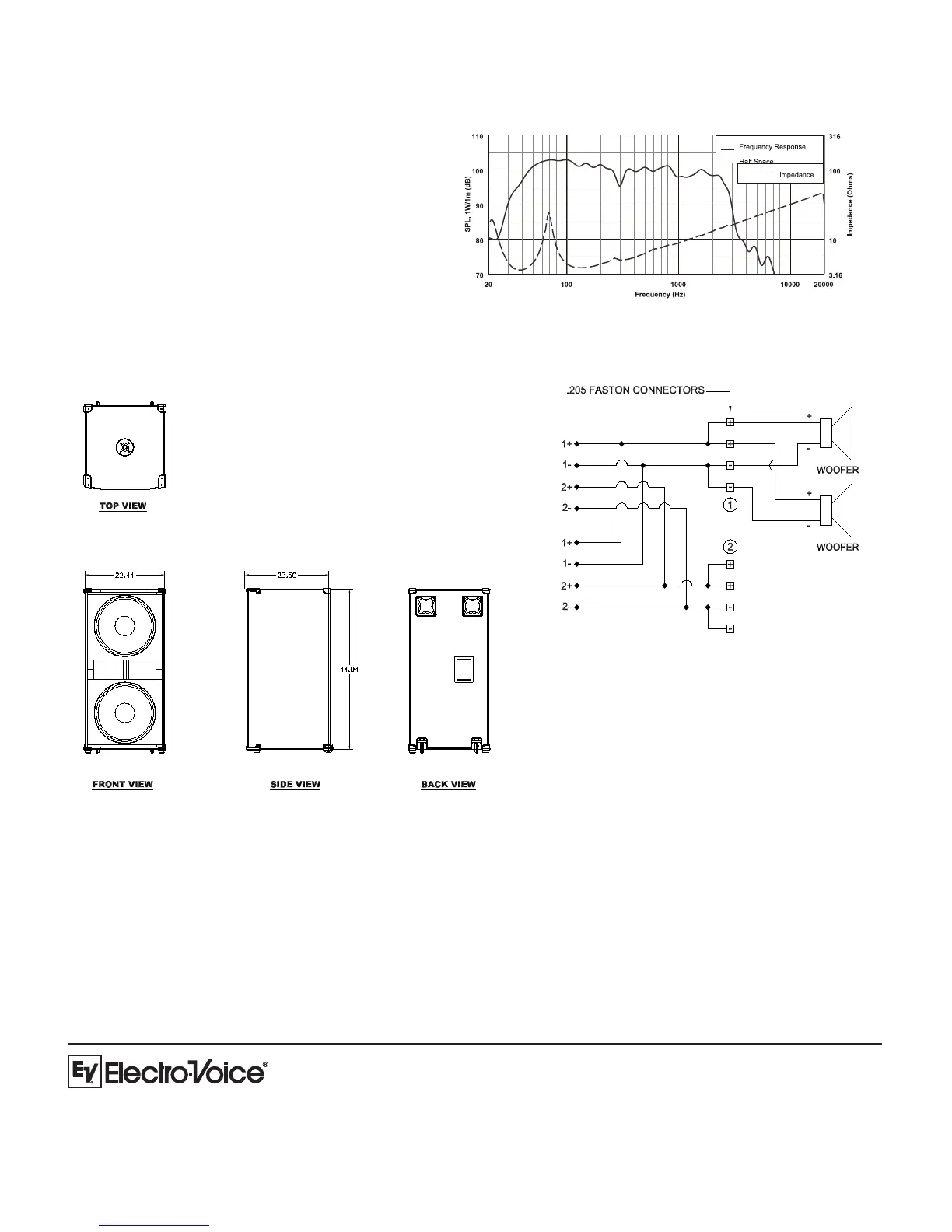

General Description (cont’): Frequency Response:
Dimension Drawings:
Performance Match:
• Eliminator i - 15-inch two-way
• Eliminator i Double - Dual 15-inch two-way
• AC-One loudspeaker controller
• Dx38 digital sound system controller
• Q66 stereo power amplifier
• P2000 stereo power amplifier
Eliminator kW Part Number:
• Eliminator kW - 301161-000
12000 Portland Avenue South, Burnsville, MN 55337
Phone:952/884-4051, Fax:952/884-0043
www.electrovoice.com
© Telex Communications, Inc. 7/2002
Part Number 38109-993 Rev A
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other International locations. For customer orders, contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 887-9212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
Block Diagram:
The Eliminator kW can be safely used with power amplifiers
capable of delivering up to 2000 watts into a 4-ohm load, but
is efficient enough to deliver outstanding performance with as
little as 400 watts. Recommended crossover frequency
range is from 80-160 Hz withminimum crossover slopes of
12-dB-per-octave. Like all other vented systems, it is
sensible to protect the Eliminator kW and maximize its
available output by inserting an active 35 Hz subsonic filter
with a minimun slope of 12-dB-per-octave into the signal
chain.
