7 RE3-RX receiver

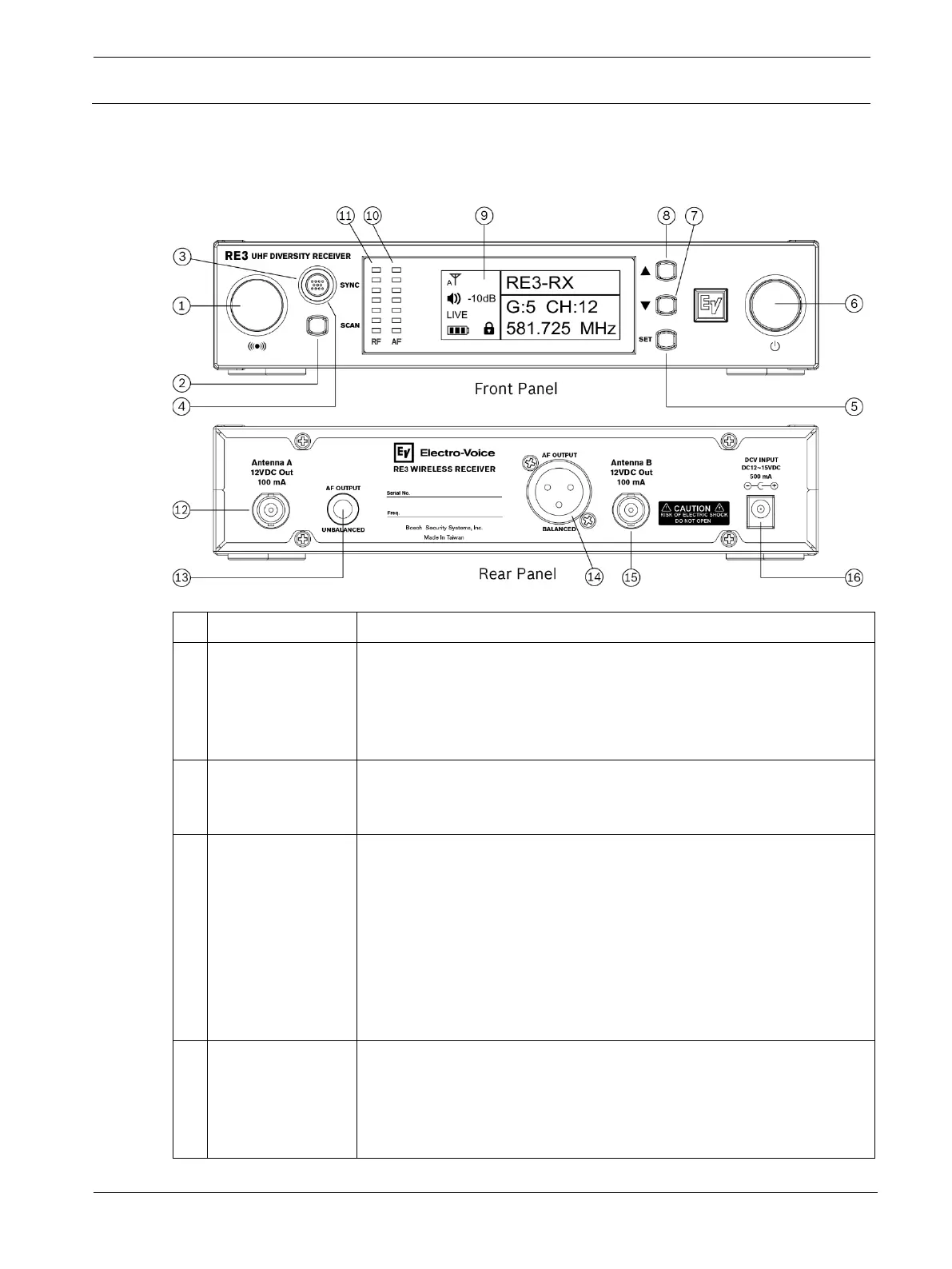

7.1 Product identification
Description, usage and notes
1 Sync signal emitter
This port emits the sync signal to the transmitter. When synchronizing
the transmitter to the receiver, aim the transmitter’s unobstructed sync
port directly toward this emitter. A direct line of sight is required.
Maintain a distance between two inches and twelve inches (or between
5cm and 30cm) for best sync performance.
2 SCAN button
Briefly pressing the SCAN button opens the frequency scan menu.
Pressing and holding the SCAN button for three seconds opens the
scan all groups option directly.
3 SYNC button
A dual-purpose action button.
Primary purpose: press to initiate synchronization of the receiver’s
stored transmitter settings to the transmitter while the receiver is not in
parameter edit mode.
Secondary purpose: As a menu escape button while in parameter
edit mode, press once to return to the previous menu without saving
any changes made. Pressing multiple times will escape back the
number of menus relative to the number of button pushes made with a
final destination of the home screen.
4 SYNC button LED
A circular LED indicator surrounding the SYNC button. The LED will
rapidly flash green during the sync operation and will glow solid green
when sync operation is successful. The LED will remain solid green
after a successful sync operation. If sync fails, the LED will flash green
slowly and constantly until a successful sync operation.
