Electro-Voice RE3 Series Installation Manual

46
en |
RE3-BPT bodypack transmitter
RE3 UHF
Wireless
2018
-12 | 01 | F.01U.362.808 Installation manual Electro-
Voice
The digit(s) to the right
of the (-) is the channel
number
To save changes:
Press SET while channel number is flashing.
StorE is displayed / returns to home screen.

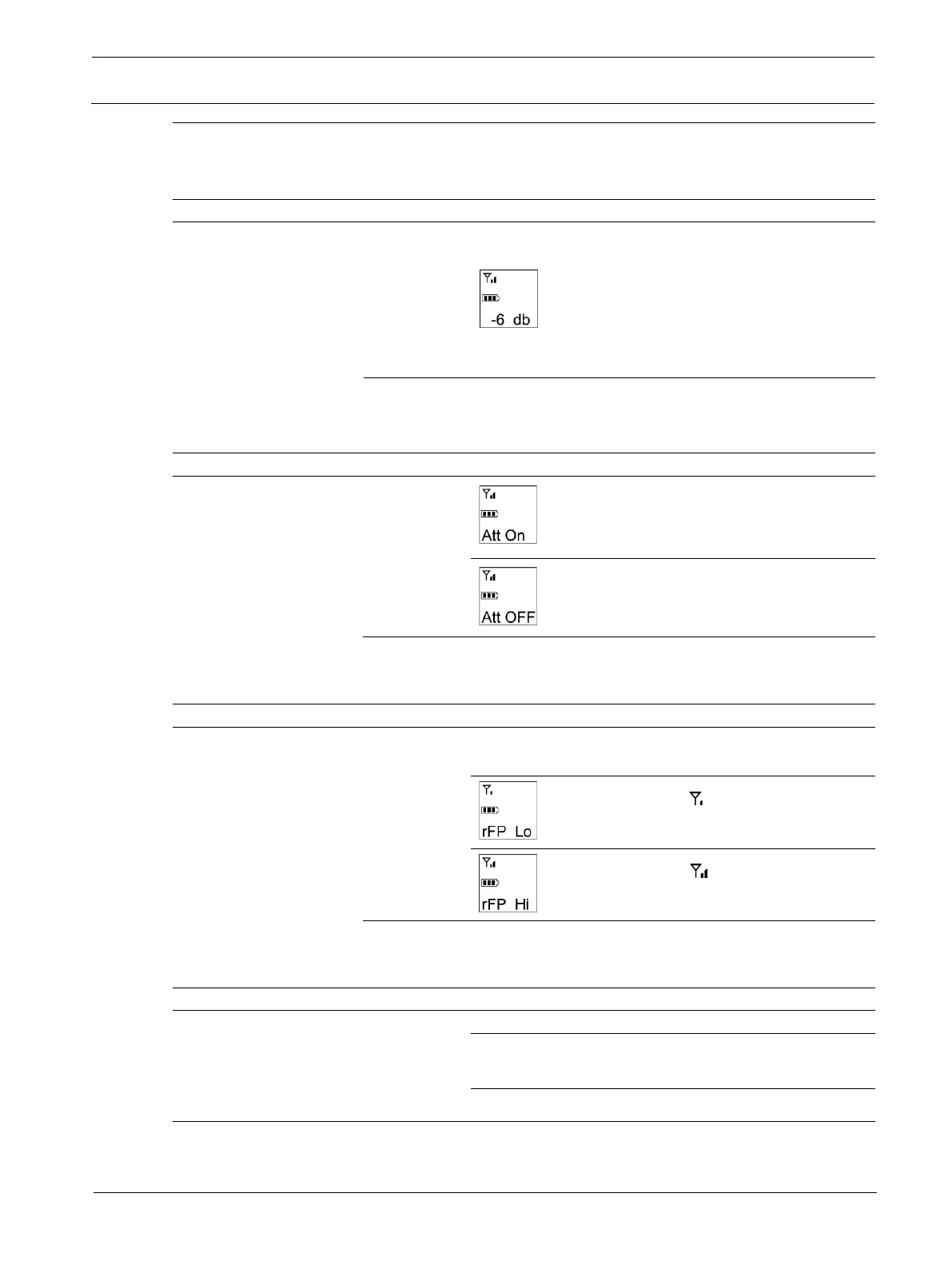

Sensitivity setup
Indication on display:
SEnSit
Displays current
sensitivity setting value
5
▲ increases the numeric value in
increments of 3dB.
▼ decreases the numeric value in
increments of 3dB.
Setting options (low to high): -15dB, -
12dB, -9dB, -6dB, -3dB, 0dB, 3dB,
6dB, 9dB, 12dB, 15dB.
To save changes:
Press SET while displaying sensitivity numeric value.
SENSIT is displayed briefly / returns to home screen.
Attenuation setup
Indication on display:
Att
When attenuation is set
to on, the transmitter
audio input stage is
attenuated by 20dB.
6
▲ changes OFF to On, applying 20dB
attenuation.
▼ changes On to OFF.
To save changes:
Press SET to store the attenuation status value.
StorE is displayed / returns to home screen.
RF Output Power
setup
Indication on display:
rFP
NOTE: Does not appear
in 8M Band menu
routine.
7
▲changes low to high.
▼changes high to low.
Low (rFP Lo) will appear on the
display indicating low RF power.
High (rFP Hi) will appear on the
display indicating high RF power.
To save changes:
Press SET while displaying RF power value.
StorE is displayed briefly / returns to home screen.
Auto Off setup
Indication on display:
AutoOF
8
Use ▲ or ▼ to navigate.
Options are: Off, 1 minute, 10 minutes,
and 30 minutes.
Displayed as OFF, 1, 10, or 30.
