42
RE3-BPT bodypack transmitter
RE3 UHF
-12 | 01 | F.01U.362.808 Installation manual Electro-

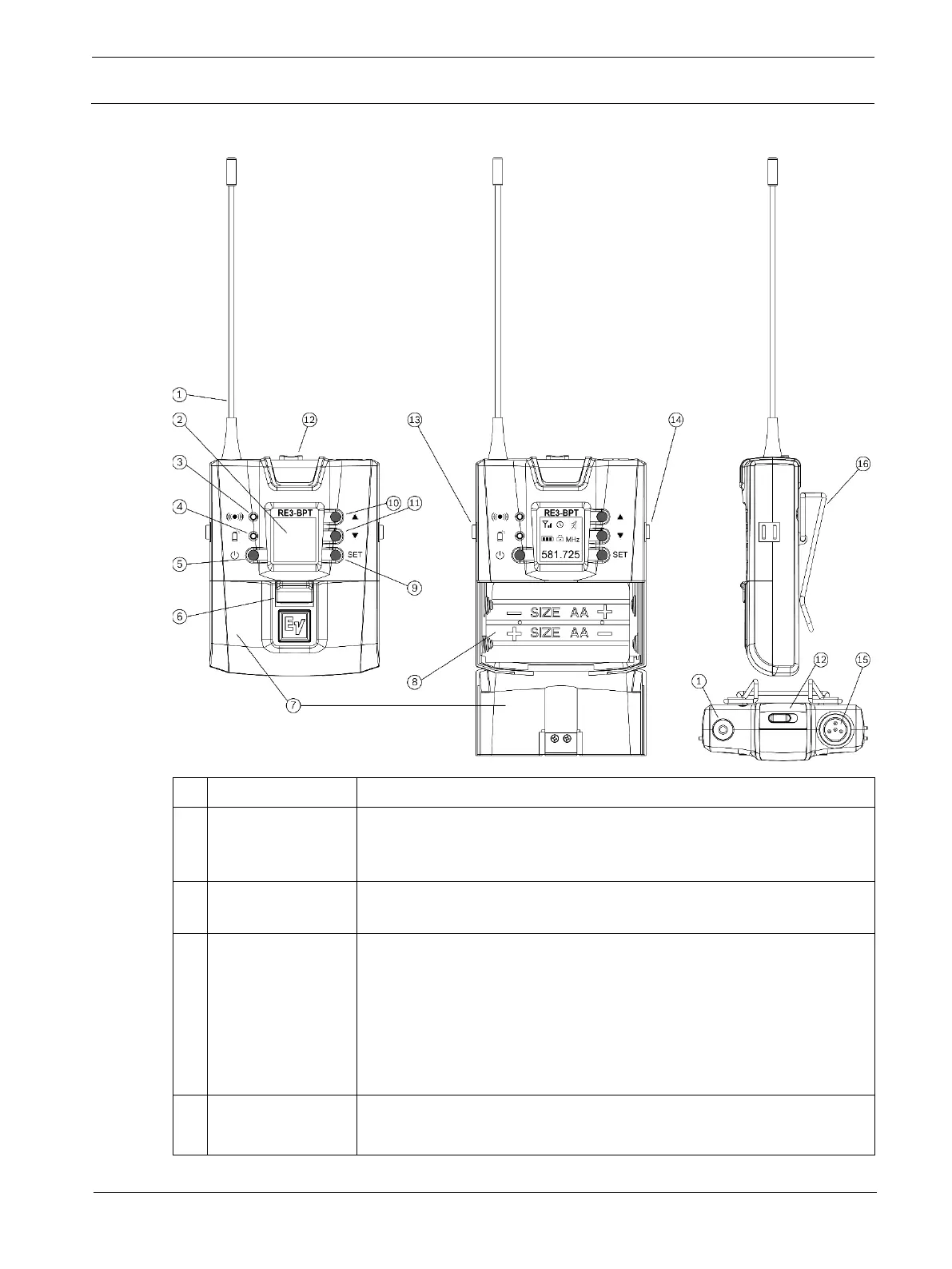

9.1 Product identification
Description, usage and notes
1 Antenna
Flexible antenna. The transmitter will function best when the antenna is
oriented vertically (pointing up), exposed to open air, and not in contact
with bare skin.
2 LDC display
Backlit LCD displays all operating information and menus. See display
section below for details.
3 Sync signal port
When syncing the transmitter to the receiver, aim the transmitter’s
unobstructed sync port directly toward the receiver’s sync emitter. A
direct line of sight is required. Maintain a distance between two inches
and twelve inches (or between 5cm and 30cm) for best sync
performance. The blue LED next to the battery alert icon will flash blue
during the sync operation and will glow solid blue for three seconds
when sync operation is successful.
4 Battery alert LED
This is a multi-purpose status alert LED: Sync / battery low. Glows
solid red when battery low. Flashing blue while syncing. Solid blue for
