Electro-Voice Sx80 - Sx80 One-Third-Octave Polar Responses; Sx80 Beamwidth Vs. Frequency

Sx80 175-Watt Two-Way Speaker System
Sx80 175-Watt Two-Way Speaker System
5

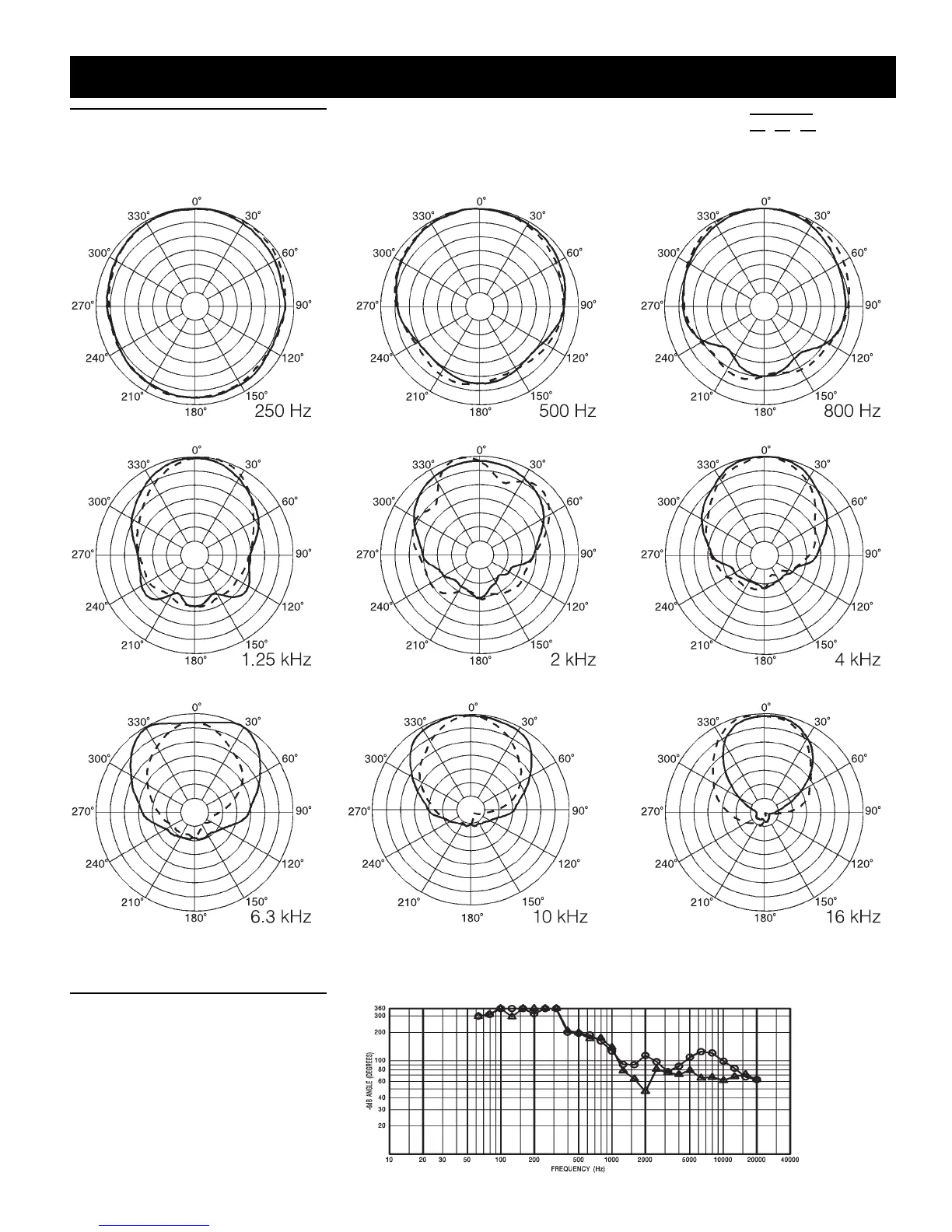

Figure 2— Sx80 One-Third-Octave
Polar Responses (full space anechoic
environment, 4 volts/6.10 meters (20
feet)
HORIZONTAL
VERTICAL
5 dB per division
Figure 3 Sx80 Beamwidth vs. Frequency
(full-space anechoic environment)
