3.3 Interface description
Ethernet Interface

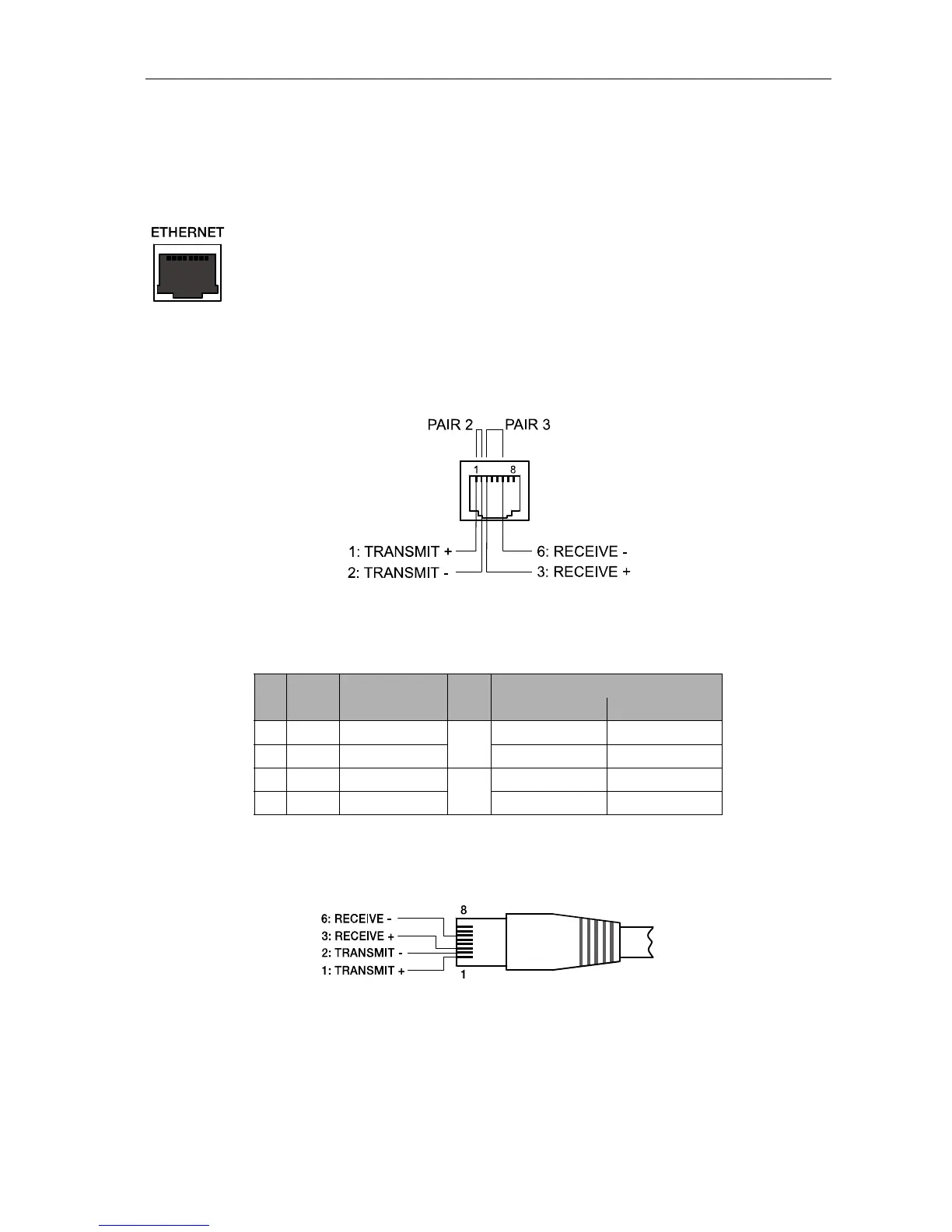

By connecting the N8000 system controller via the Ethernet interface, the
communication between the N8000 and one or several PC is possible. This allows
the configuration of N8000 via IRIS-Net software. Furthermore, the whole
connected system (consisting of N8000s and EV Precision Series Remote Control
Amplifiers) can be operated and monitored. By using appropriate network
hardware it is even possible to operate the N8000 via a wireless network (WLAN). The Ethernet
interface on the rear of N8000 is a RJ-45 connector (8P8C). Both 10Base-T and 100Base-TX
Ethernet standards are supported. The connections of the Ethernet interfaces can be seen in the
following figure and table.
The pin assignment of the Ethernet connector is shown in the following figure. The connector is
viewed from the contact side.
Pin Assignment of Ethernet jack
Pin Name Description Pair
Colour
T568A T568B
1 Tx+ Transmit+
2
Green striped Orange striped
2 Tx- Transmit- Green Orange
3 Rx+ Receive+
3
Orange striped Green striped
6 Rx- Receive- Orange Green
Pin Assignment of Ethernet plug
