Appendix
38
NetMax N8000 System Controller
Owner’s manual
System Examples

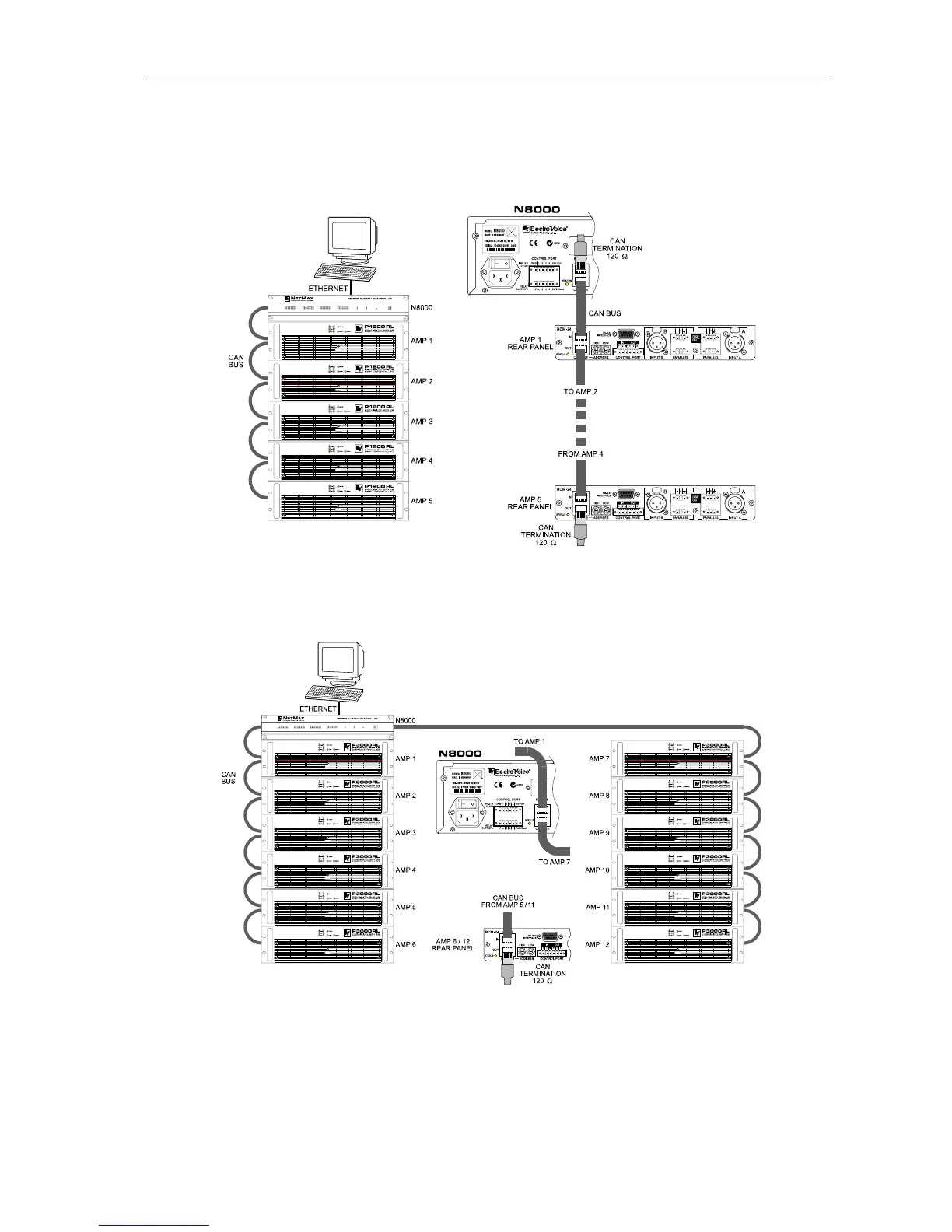

The following illustrations show examples of the data-bus wiring for different sizes of CAN-bus
networks..
.
System with 5 power amps and 1 N8000 at the beginning of the bus. Termina-
tion plugs at the N8000 (first unit on the bus) and at amp 5 (last unit on the bus).
System with 2 amp-racks and 1 N8000/PC in the middle. Termination plugs at
power amp 6 (first unit on the bus) and power amp 12 (last unit on the bus).
