Rigging Manual

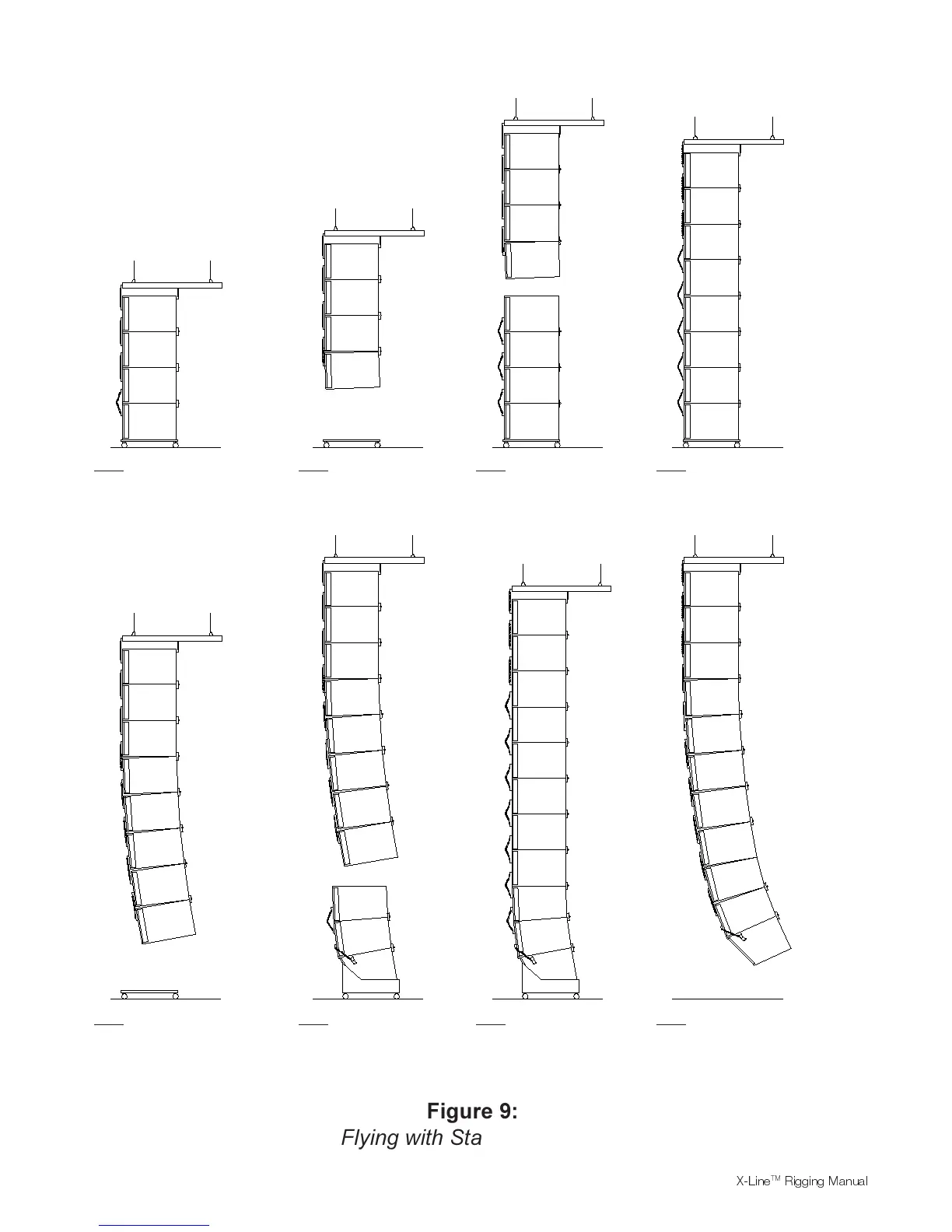

Figure 9:
Flying with Stacking Dollies
23
Step 4: Land the suspended array
on top of the next stack. Attach
the rear hinges between the two
stacks. Attach rigging chain at the
front between the two stacks to
achive the desired vertical angles.
Step 3: Roll another stack of boxes
into position under the suspended
array. Attach rigging chain at the
front to achive the desired vertical
angles for the next stack.
Step 2: Lift boxes off dolly.Step 1: Roll stack of boxes into
position and attach the top box to
the grid using the two grid straps at
the front and two grid hinges at the
rear. Attach rigging chain at the
front to achive the desired vertical
angle.
Step 8: Lift the entire array of
boxes.
Step 7: Land the suspended array
on top of the next stack. Attach
the rear hinges between the two
stacks. Attach rigging chain at the
front between the two stacks to
achive the desired vertical angles.
Step 6: Roll another stack of boxes
into position under the suspended
array. Attach rigging chain at the
front to achive the desired vertical
angles for the next stack.
Step 5: Lift the entire array of
boxes.
