Rigging Manual 7

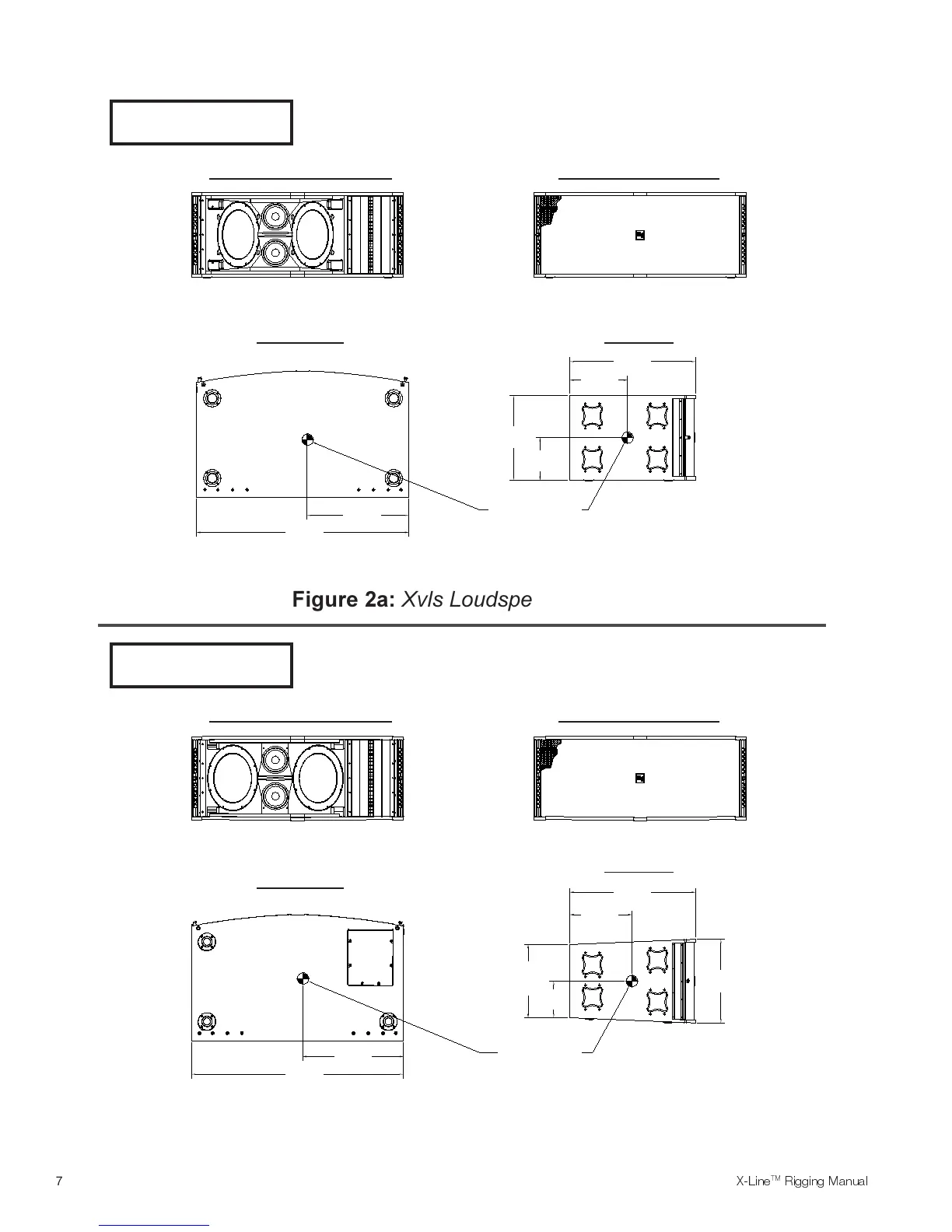

Figure 2a: Xvls Loudspeaker System
Figure 2b: Xvlt Loudspeaker System
13.30in
(338mm)
29.15in
(740mm)
9.73in
(247mm)
19.46in
(494mm)
49.00in
(1245mm)
Center of Gravity23.40in
(594mm)
Front View (Without Grille) Front View (With Grille)
Bottom View Side View
X-Line Xvls 90° x 5°
257 lbs (117 kg)
14.33in
(364mm)
29.11in
(739mm)
16.92in
(430mm)
Cent.
49.00in
(1245mm)
Center of Gravity
23.25in
(591mm)
Front View (Without Grille) Front View (With Grille)
Bottom View
Side View
X-Line Xvlt 120° x 8.5°
253 lbs (115 kg)
19.46in
(494mm)
8.46in
(215mm)
