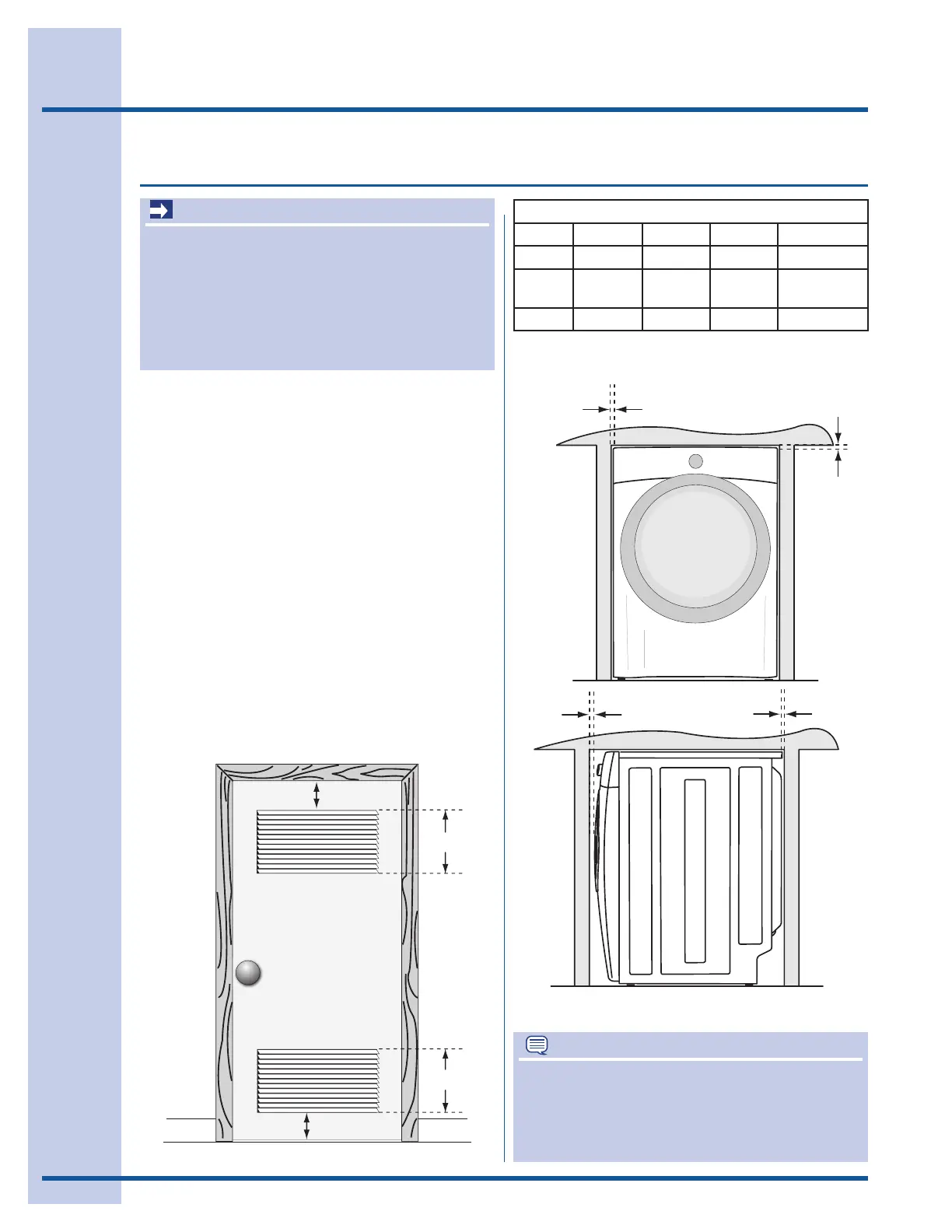

MINIMUMINSTALLATIONCLEARANCES-Inches(cm)
SIDES REAR TOP FRONT
Alcove 0”(0cm) 0”(0cm)* 0”(0cm) n/a
Under-
Counter
0”(0cm) 0”(0cm)* 0”(0cm) n/a
Closet 0”(0cm) 0”(0cm)* 0”(0cm) 1”(2.54cm)
Installation Requirements
Clearance requirements
60 sq. in.
(387.1cm²)
3”
(7.6cm)
60 sq. in.
(387.1cm²)
3”
(7.6cm)
0”
(0cm)
0”
(0cm)
1”
(2.54cm)
0”
(0cm)
IMPORTANT
DO NOT INSTALL YOUR DRYER:
1. Inanareaexposedtodrippingwateroroutside
weather conditions.
2. In an area where it will come in contact with
curtains, drapes, or anything that will obstruct
the flow of combustion and ventilation air.
3. Oncarpet.FloorMUSTbesolidwithamaximum
slopeof1inch(2.54cm).
INSTALLATION IN A RECESS OR CLOSET
1. A dryer installed in a bedroom, bathroom,
recessorcloset,MUSTbeexhaustedoutdoors.
2. No other fuel burning appliance shall be
installed in the same closet as the gas dryer.
3. Your dryer needs the space around it for proper
ventilation.
DO NOT install your dryer in a closet with a solid
door.
4. Closet door ventilation required: A minimum
of120squareinches(774.2cm²)ofopening,
equally divided at the top and bottom of the
door, is required. Openings should be located
3inches(7.6cm)frombottomandtopofdoor.
Openings are required to be unobstructed
when a door is installed. A louvered door with
equivalent air openings for the full length of the
door is acceptable.
closet door
NOTE
Toachieveaninstallationwith0”(0cm)clearance
forthebackofthedryer(forotherthanstraight
backventing),aquick-turn90°dryerventelbow
must be installed as described previously in this
manual.
F* or other than straight back venting, a quick-turn 90°
dryerventelbowmustbeinstalledtoachieve0”(0cm)
installation.
