Installation Requirements
38.00”
(96.5cm)
16.25”
(41.5cm)
18.25”
(46.5cm)
53.00”
(134.5cm)
1.4”
(3.5cm)
3.75”
(9.5cm)
13.50”
(34.5cm)
to center of rear vent
3.40”
(8.5cm)
gas supply
pipe on rear
of gas unit
50.6” (128.5cm)*
to clear open door
31.50” (80cm)*
to front of closed door
27.00”
(68.5cm)
centerline
height for
rear vent
electrical
supply on
rear of unit
freestand dryer
on floor
* T o obtain these minimal depth dimensions, dryer must either be vented straight back or
with a quick-turn 90° elbow. Connection of water inlet hose on Steam Models adds 3/4 in.
(2 cm) to installation depth. Upward venting of exhaust on pedestal-mounted or freestanding
dryer adds approximately 4 in. (10.2 cm) to installation depth. Downward venting of exhaust
on pedestal-mounted dryer adds approximately 1.7 in. (4.3 cm) to installation depth.
floor line
floor line
dryer mounted on
optional pedestal
75.75”
(192.5cm)
41.00”
(104cm)
39.00”
(99cm)
gas supply
pipe on rear
of gas unit
50.6” (128.5cm)*
to clear open door
31.50” (80cm)*
to front of closed door
centerline
height for
rear vent
electrical
supply on
rear of unit
* T o obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90° elbow.
Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth. Upward or downward venting
of exhaust on stacked dryer adds approximately 4 in. (10.2 cm) to installation depth.
27.00”
(68.5cm)

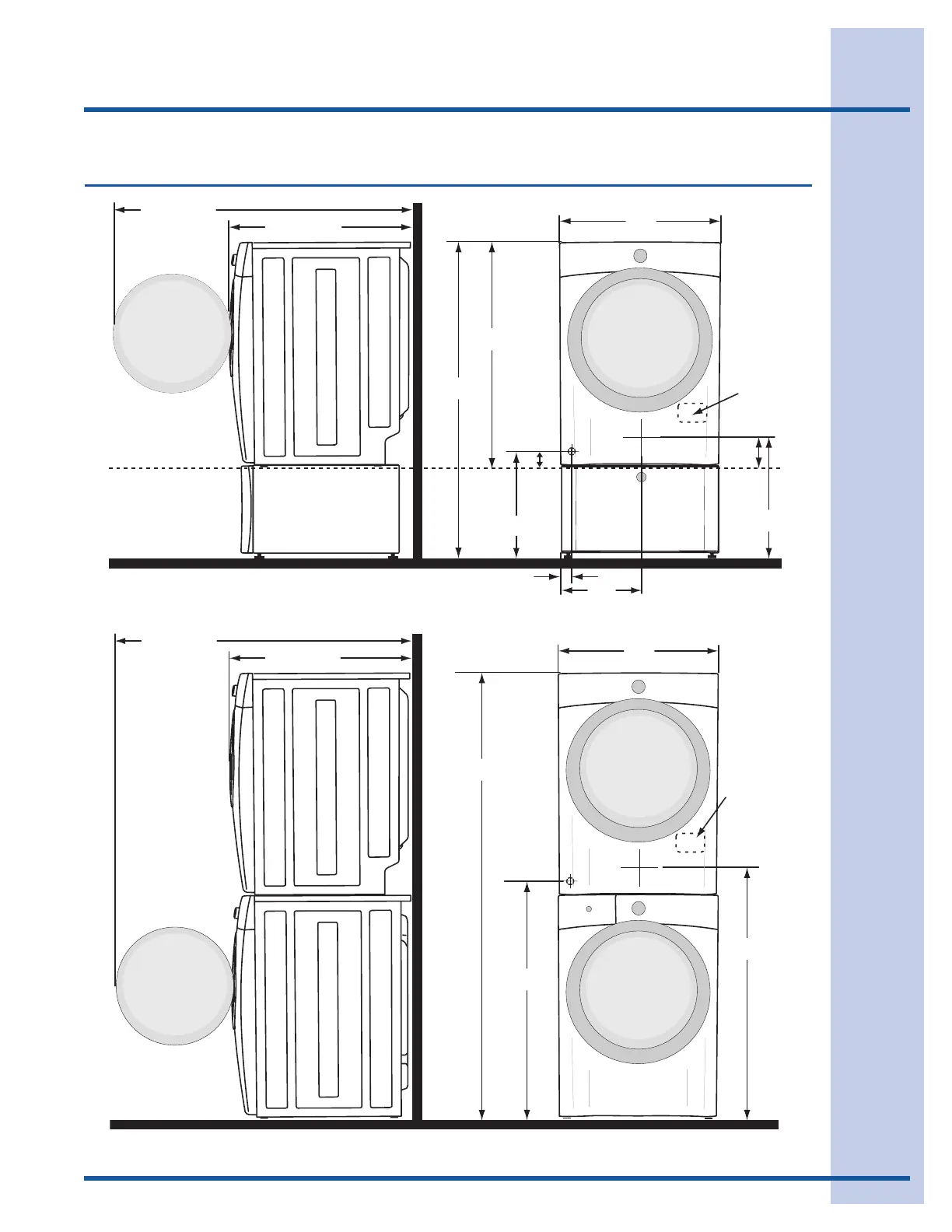

Installed dryer dimensions
