E8.1.1 Detergent concentration measurement
probe
For positioning the detergent concentration measure-
ment probe there is a hole “S1” (Ø 0.86’’ - 22 mm)
closed with a plug (Figure 11) in the wash tank, as
already indicated also in par. E6.2 “Installation dia-
grams”.

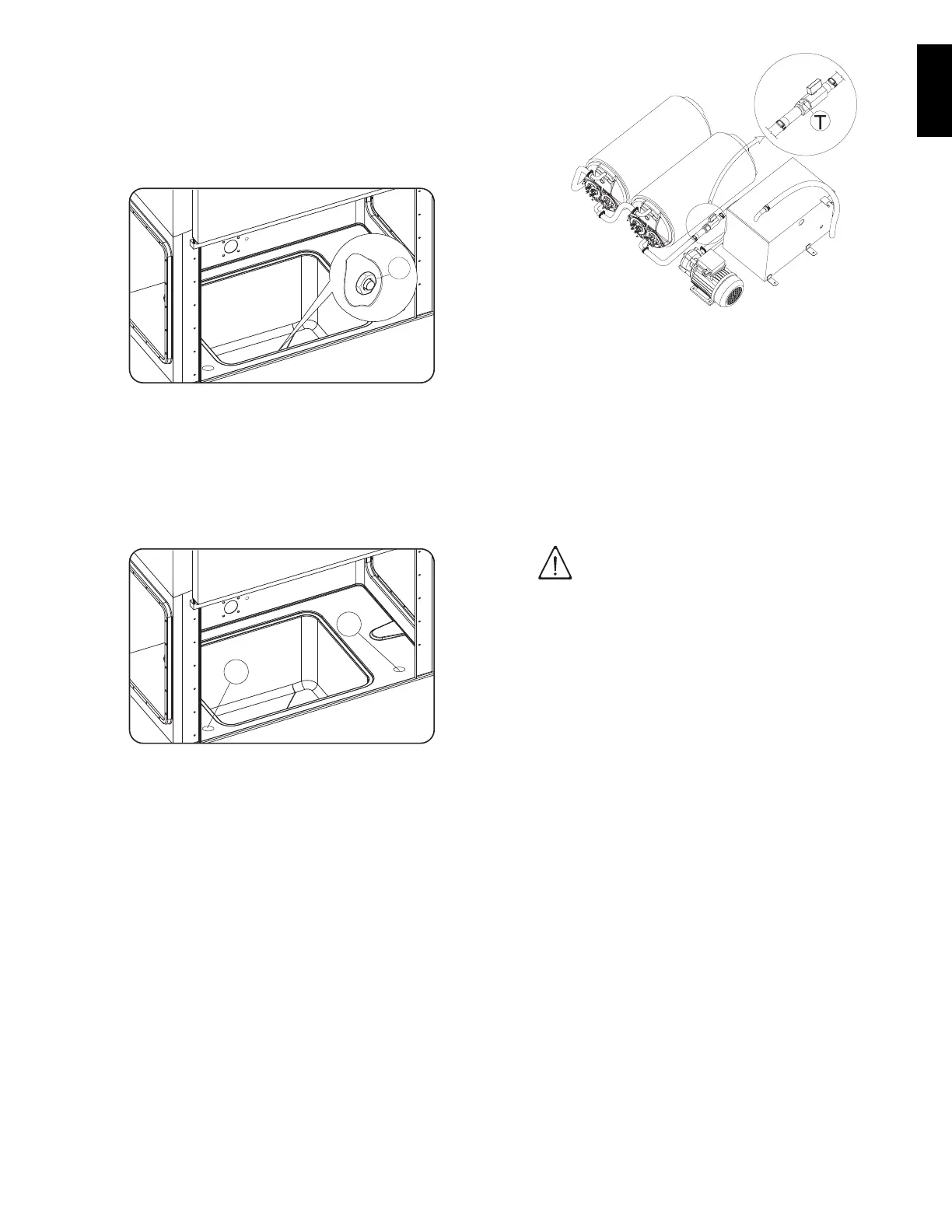

Figure 11 Hole for detergent probe
E8.1.2 Liquid detergent dispensers
Inside the wash tank there are two indents “S” (Ø
0.19’’ -
5 mm
) to be perforated for fitting a liquid detergent injec-
tor (Figure 12)
,
as already indicated also in par.
E6.2 “Installation dia-
grams”
.
Figure 12 Arrangement for liquid detergent
E8.1.3 Rinse aid dispensers
The machine is supplied with a nipple, a piece of pipe
and two clamps for connecting the rinse aid dispenser.
Carefully follow the instructions given below to correctly
carry out the connection for the rinse aid:
• remove the upper panel “B” (
Figure 10
);
Figure 13 Rinse aid connection
• connect the rinse aid dispenser pipe, unscrewing
plug “T” (
Figure 13)
, always paying attention to
potential plumbing leaks (tighten the clamps
securely);
• refit the upper panel “B” (
Figure 10
).
E8.2 Arrangement for electrical connection
The electrical connection of the dispenser devices must
be carried out by a specialized technician according to
that indicated in the wiring diagram on the machine.
IMPORTANT!
Do not make direct connections on the
printed circuits.
