E9 Fitting curtains
With the machine switched off and cold, fit or refit the curtains as illustrated below. The machines are represented in the
assembly diagrams firstly in the version with left rack loading and then in the version with right rack loading.

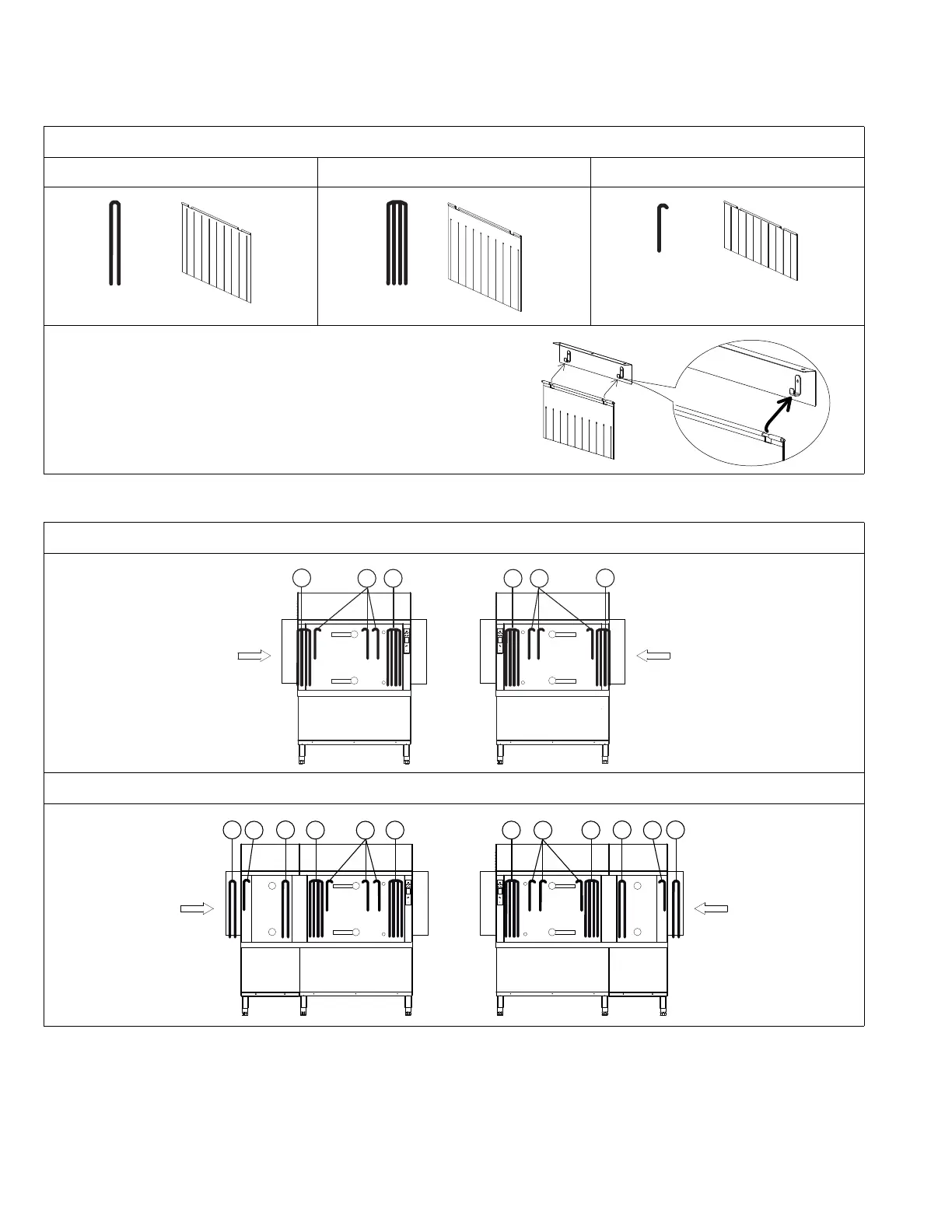

Figure 14 Diagram of curtain positioning on compact machines
Types of curtains on the machine
Double long (1) Quadruple long (2) Single short (3)
Important:
fasten the curtains with the flat part against the hook.
Rack-type dishwasher - 44”
Rack-type dishwasher - 66”
22 3 2 23
1
2
33
33
1 11
2 22
