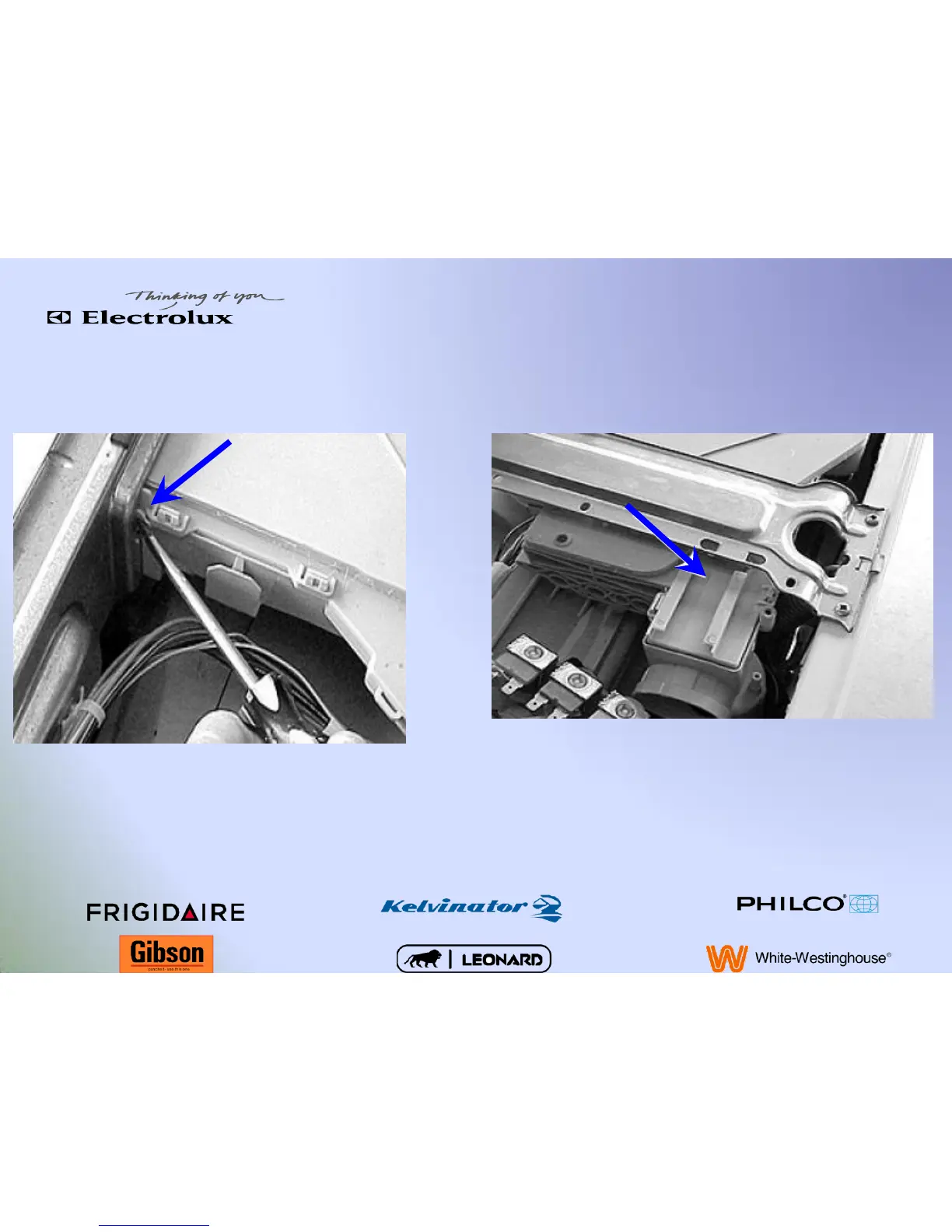

Dispenser R
emov
al
R
elease the (2) tabs, one on
each side, locking the housing
to
the console moun
ting panel
Slide the housing back un
til
the t
abs of the cent
er cross
bar r
eleases and
the dispenser
dr
ops dow
n.
19
21
