Model CLR2160
51

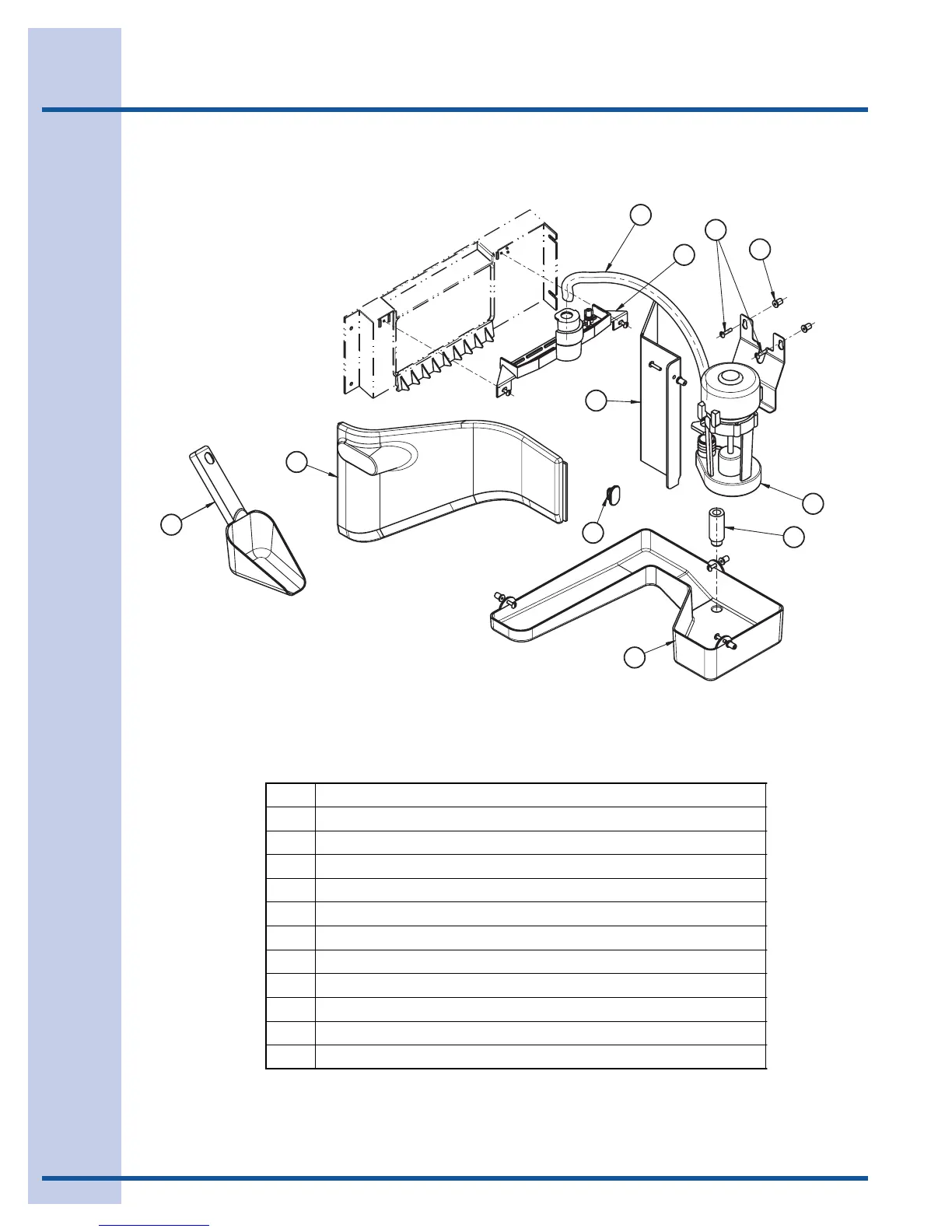

Figure 24
ULIN_S_0075_A
10
4
8
2
5
6
7
1
9
3
11
Item Description Part Number
1 STAND PIPE 31619
2 FRONT COVER 11868
3 WELL NUT (included with 31613-S) 41979
4 PRE-FORMED WHITE TUBE 31615-S
5 CIRCULATION PUMP COVER 11893
6 ICE SCOOP HANGER 42011
7 WATER TROUGH WITH DRAIN TUBE 11813
8 WATER DISPERSION RECEPTACLE 11812-S
9 CIRCULATION PUMP ASSEMBLY 31613-S
10 ICE SCOOP 31614
11 SCREWS (included with 31613-S) 41981
