15

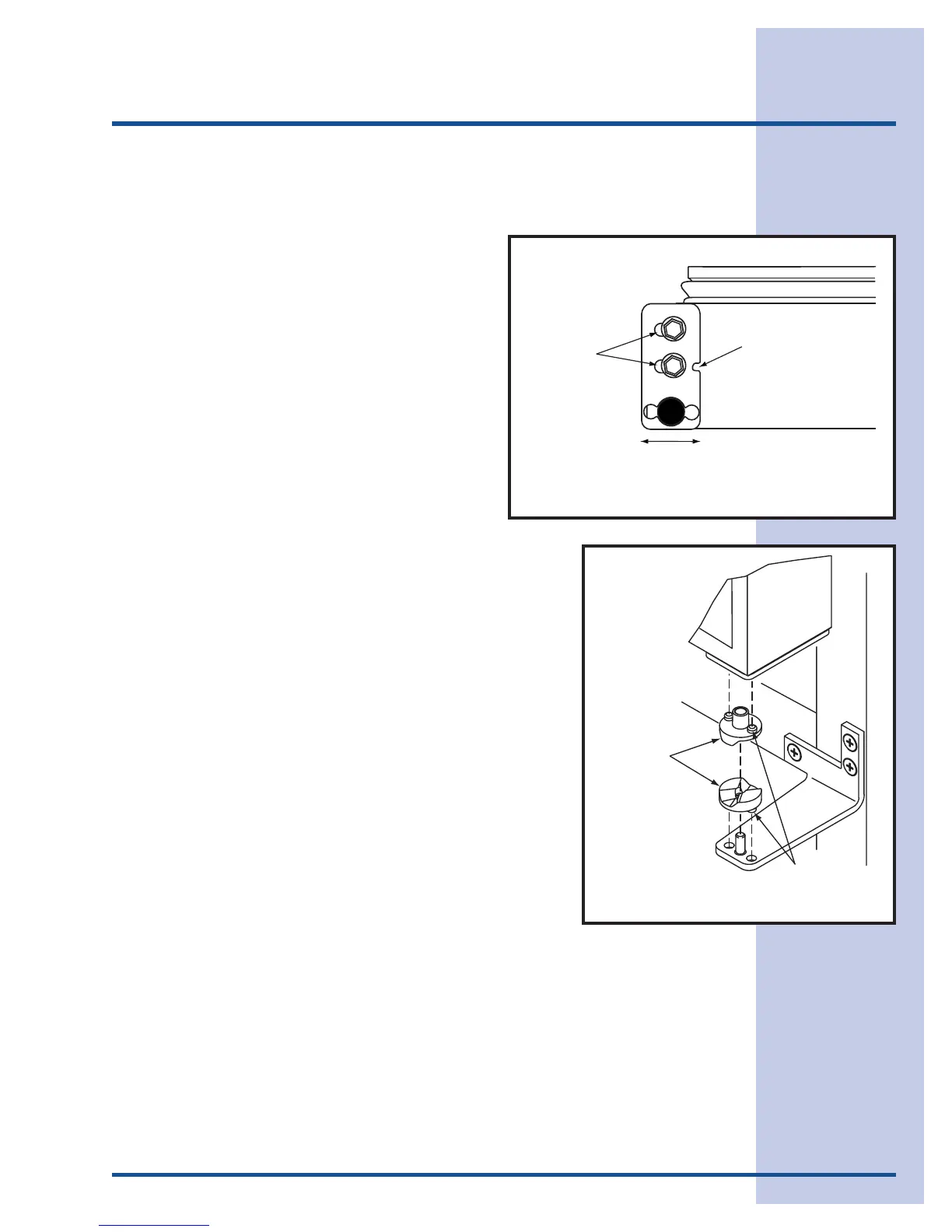

Door Adjustment
4 If door edge opposite the hinges needs to
move up, move plate toward outside of
door. If door edge needs to move down,
move plate toward inside of door (see
Figure 16). Repeat until top edge of door is
parallel with top of cabinet and tighten
screws securely.
5 After adjustment is complete, remove the
door closers from the bottom hinge, clean
thoroughly and apply petroleum jelly to the
mating surfaces of the closers (see
Figure 17). Be sure that bosses on closers
align with holes in hinge and hinge plate.
Mount door and install top hinge pivot pin.
UL312
DOOR
CLOSERS
BOSS
Figure 17
SLOTTED
MOUNTING
HOLES
NOTCH
LOWER
OUTSIDE
DOOR EDGE
RAISE
OUTSIDE
DOOR EDGE
CLRCO001a
Figure 16
