Product description
All the pictures in this manual are for
explanation purpose only. They may be
slightly different from the air conditioner
you purchased.
The description in the control is
based on a typical model. The
functions are the same in your air
conditioner, even if there are some
differences in the appearance.

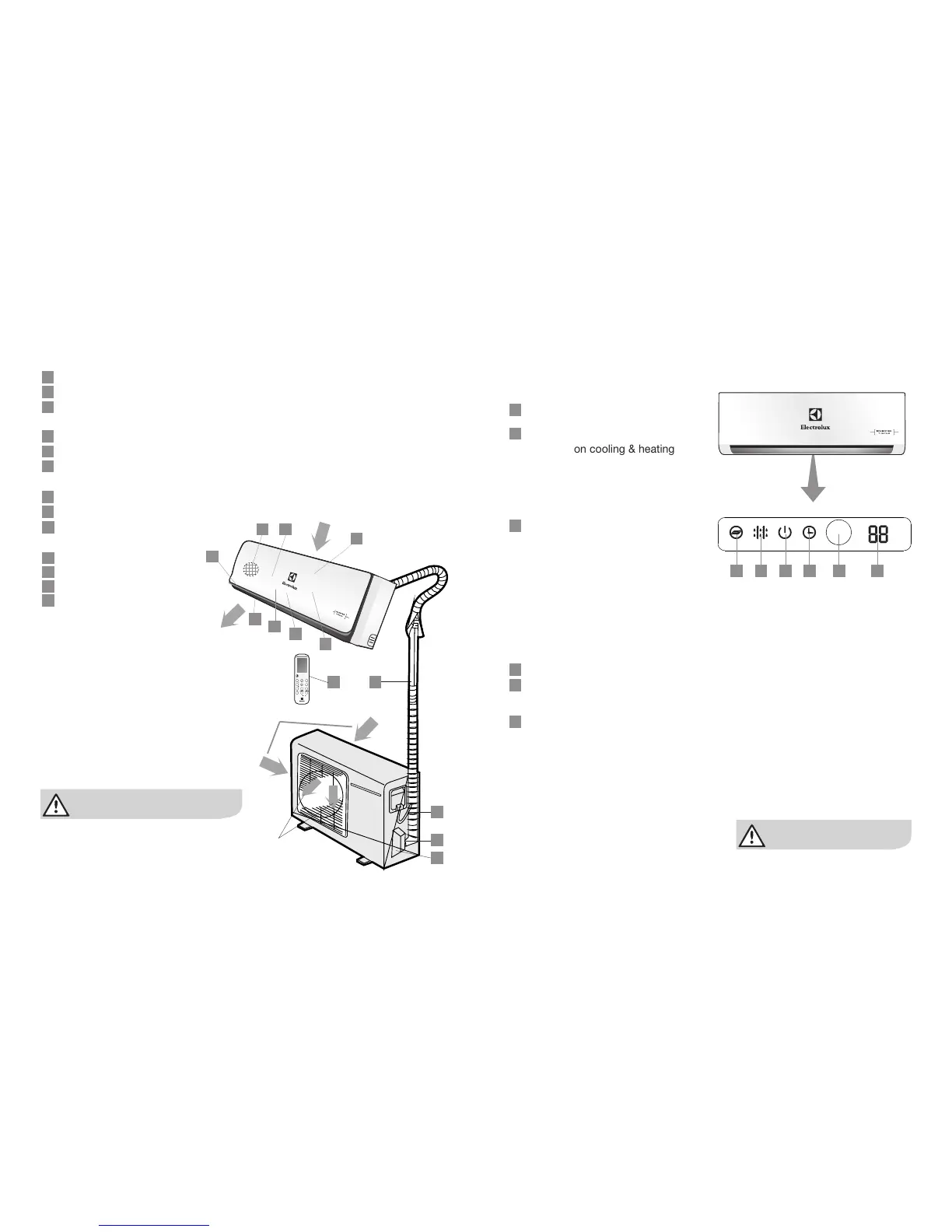

Display panel
(indoor unit)
TIMER
Lights up during Timer operation.
DEFROST indication lamp
(Enabled on cooling & heating
models only): Lights up when the
air conditioner starts defrosting
automatically or when the warm air
control feature is activated in
heating operation.
Temperature indicator
Usually it displays the temperature
settings. When change the setting
temperature,this indicator begins
to flash, and stops 20 seconds
later.
It displays the room temperature
when the air conditioner is in FAN
only operation.
Displays the malfunction code or
protection code.
Signal receiver
Clean air indicator (only some
models) Lights up when CLEAN
AIR feacture is activated.
OPERATION indication lamp
(only some models)
This lamp illuminates when the air
conditioner is in operation.
1
4
2
3
Front panel frame
Front panel
Air filter
(inside front panel)
Horizontal airflow grille
Vertical airflow grille
Temperature sensor
(inside front panel)
Panel
Infra-red signal receiver
Drain hose connector and
refrigerant gas connector
Remote control
Connector cable
Detection valve
Drain hose and refrigerant
connecting pipe
1
2
3
4
5
6
7
8
9
10
11
12
13
5
6
Air outlet
Air inlet
Outdoor unit
11
9
12
31 electrolux product description
product description electrolux 32
13
10
Air outlet
6
Air inlet
2
4
3
2
5
1
8
7
5 32 6 1 4
MODE
SWING
SWING
TEMP
SHORTCUT
FAN
SPEED
TIMER
OFF
RESET LOCK
TIMER
ON
