14 INSTALLATION
BUILDING-IN
Installing the machine into kitchen furniture with proper characteristics will ensure a
correct operation of the equipment.
Complying with the safety rules, ensure a proper protection against any contact with
the electric components and with the parts protected only by functional insulation, by
housing the machine correctly into the furniture.
All components that guarantee protection, even a cover panel (for instance, when the
machine is positioned at one of the ends of the modular furniture), should be firmly
fixed so that they cannot be removed without tools.
Install this machine at a certain distance from refrigerators or freezers, because the
heat it emitts can impair their functioning.

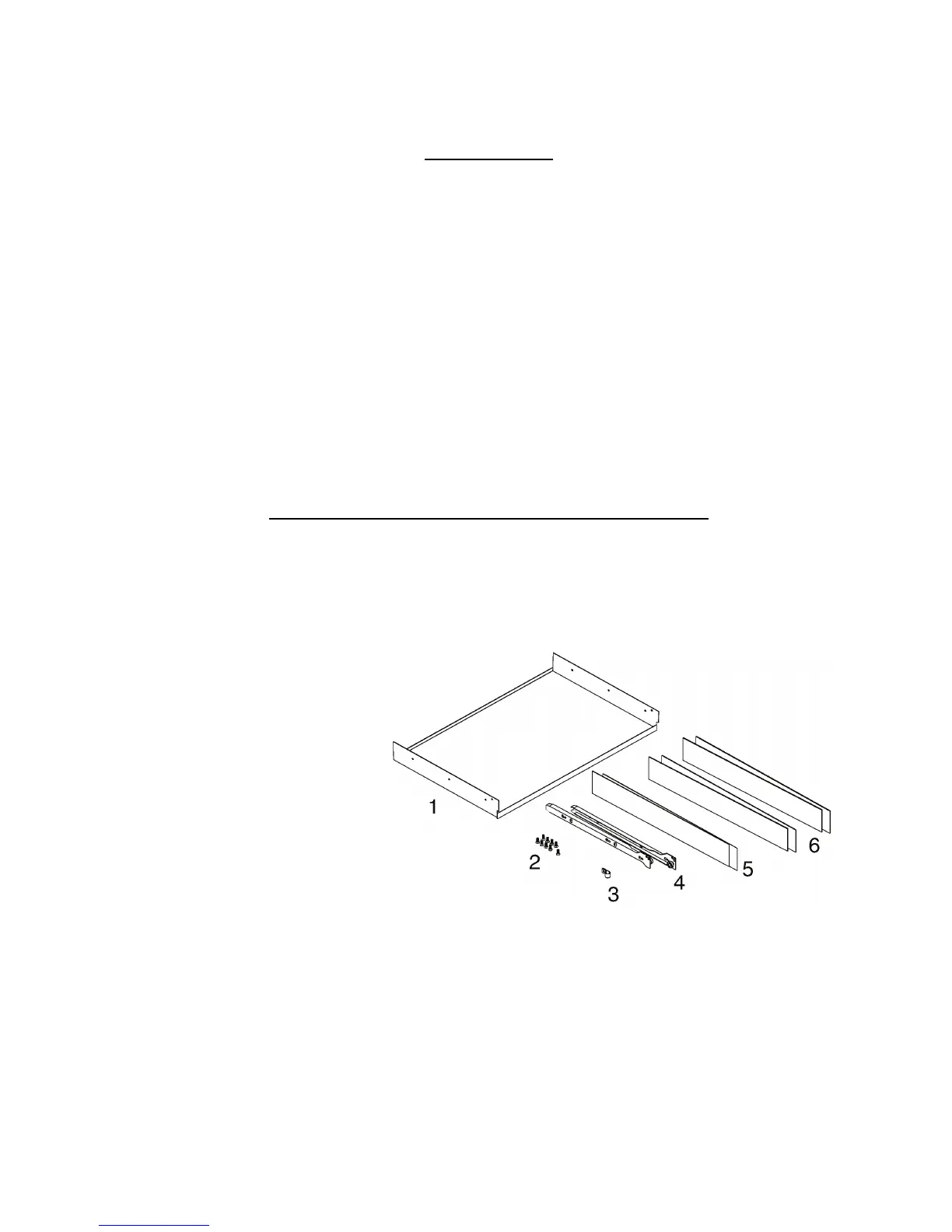

COMPONENTS FOR INSTALLING THE MACHINE
This coffee machine and drawer can be installed into cabinets with height of 450 mm
and width ranging from 560 mm to 570 mm. The machine is equipped with the
following components for the installation:
1. 1 fixing base
2. 9 self-threading screws
3.9X19
3. 1 cable clamp
4. 2 side slides
5. 2 side-plates of 1 mm
6. 4 side-plates of 2 mm
