CONNECTING TO THE MAINS
TERMINAL
We recommend you use a new length of
6mm
2
twin core and earthed cable to ensure
your safety.

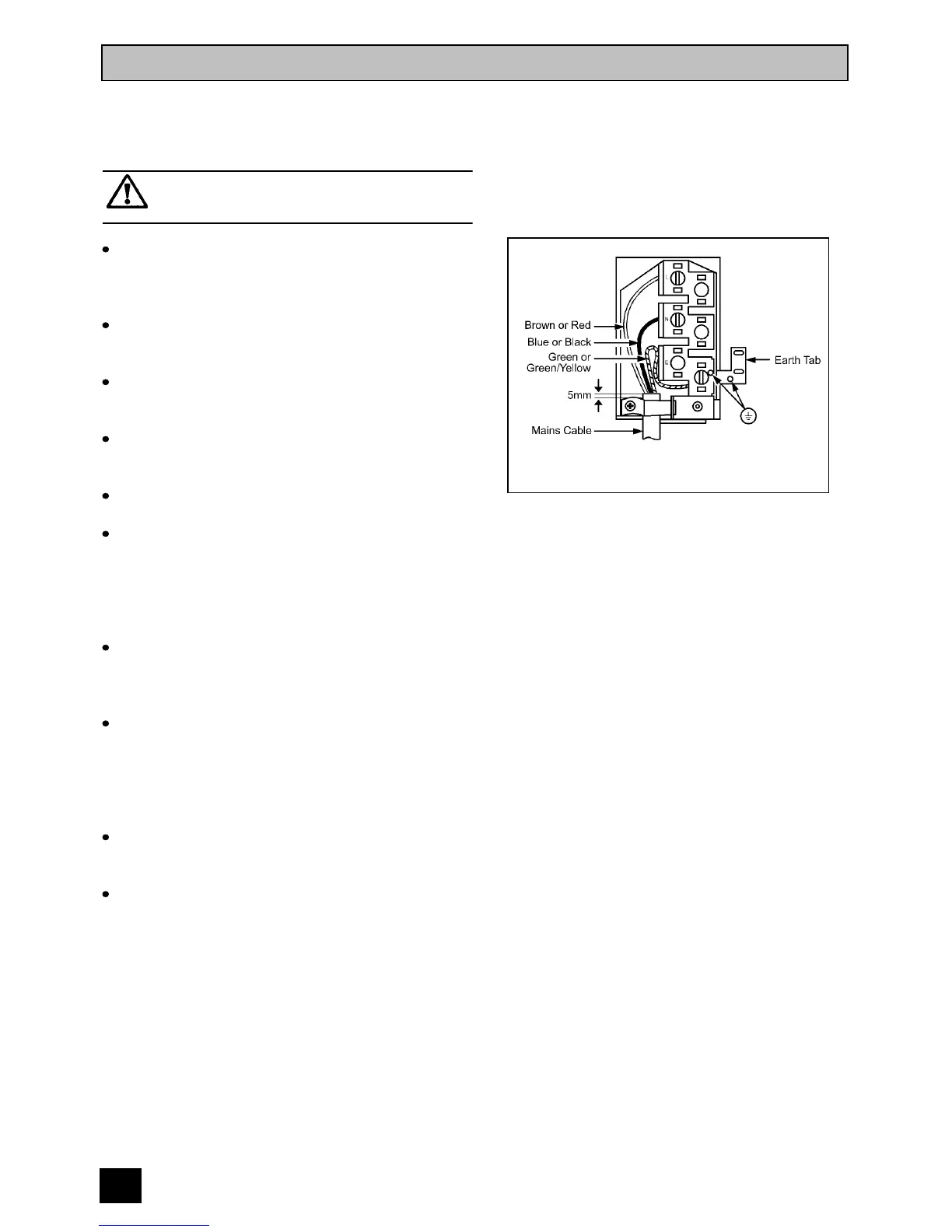

Make connection as shown in Fig. 12 by
proceeding as follows:-
Preform wires to the appropriate shape to suit
fitting into the mains terminal block.
Strip inner insulation on wires using
wirestrippers.
Twist the bared wires using pliers.
Cut bared wires 10mm away from the end of
the inner insulation. Where uninsulated Earth
wires are used ensure they are suitably
sheathed to leave 10mm bare wire to fit into
the terminal.
Clamp bare wires into the relevant terminal
and check they are held by tugging each one
in turn.
Clamp the mains cable securely ensuring
5mm of the outer insulation is inside the
terminal block and that the wires are not
taught but not so slack as to cause any
fouling. See Fig. 12.
Connect the remaining end of the mains
cable to the cooker point / junction box.
Place fuse / miniature circuit breaker in circuit
and switch on at mains.
46
INSTALLATION INSTRUCTIONS
Warning: This cooker must be earthed.
Fig. 12
