- 10 -
03.2004 R.K. 599 519 400 EN

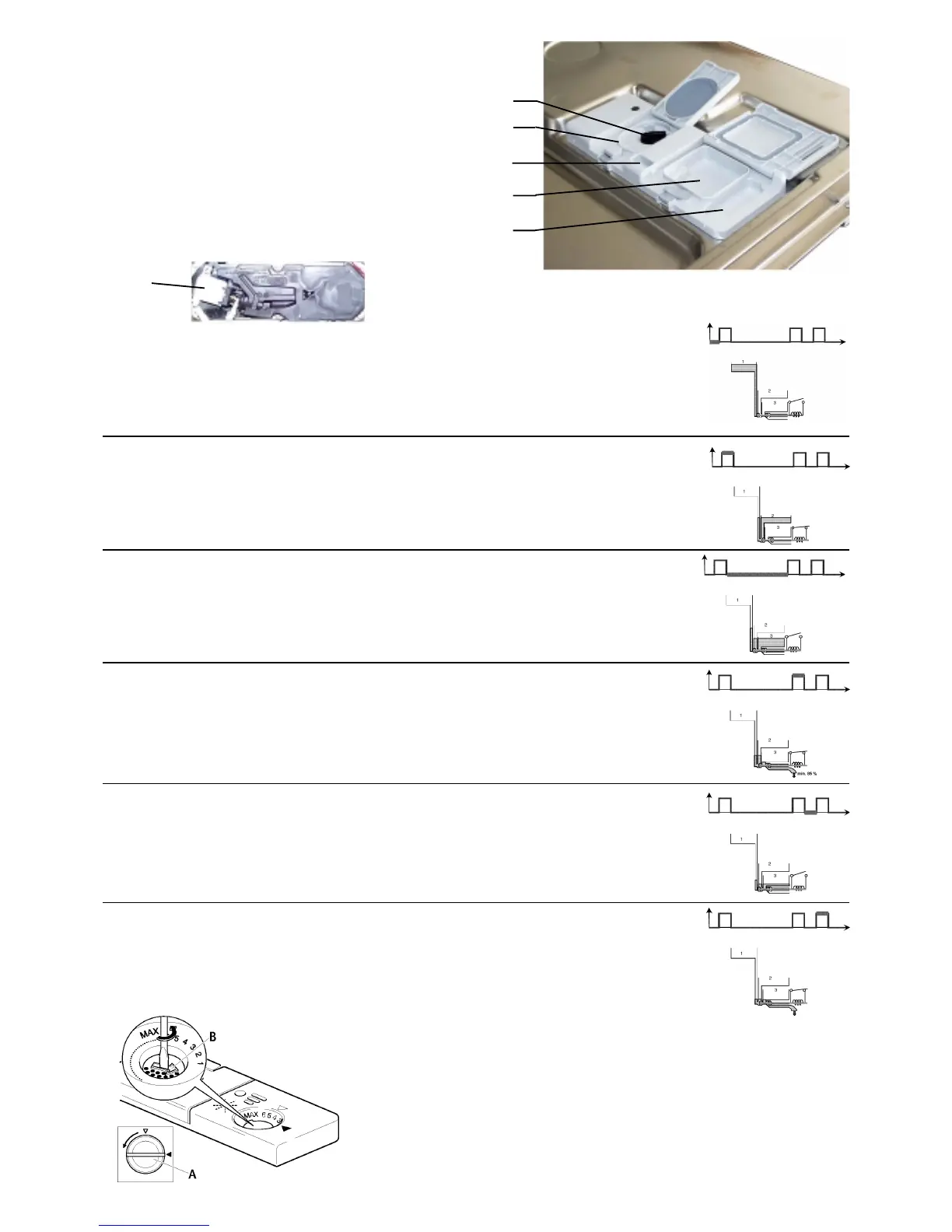

4.5 Detergent dispenser
Dosing of detergent
prewash 10 ml
wash 20 - 30 ml
Dosing of rinse aid
position 1 - 6 2 ml - 7 ml
Capacity
140 ml
dosing of rinse-aid
maximum filling level
outlet of rinse-aid
detergent tray
detergent tray for pre wash
coil
ON
OFF
Zeit
The detergent compartment 1 is filling corresponding to the set dosing quantity when the door
is open. Possibly existing rinse-aid in compartments 2 and 3 flows back into the storage tank
of the rinse-aid. The detergent trays are filled up. The door will be closed and the detergent
for prewash will be rinsed out through the slots in the detergent dispenser cover.
During the washing cycle the coil is switched on and the detergent compartment cover
releases the detergent. The rinse-aid flows from compartment 1 into compartment 2.
After switching off the coil, the rinse-aid flows from compartment 2 into compartment 3.
During the rinse cycle, the coil will be switched on when the rinse is warmed and the rinse-
aid runs from compartment 3 into the rinse tank. At the same time, the remaining rinse-
aid (15 %) runs from compartment 1 into compartment 2.
With the coil switched off, the rinse-aid flows from compartment 2 into compartment 3.
During the rinse cycle, the coil is always switched on twice. When it is switched on the
second time, the remaining rinse-aid flows into the rinse tank.
ON
OFF
Zeit
ON
OFF
Zeit
ON
OFF
Zeit
ON
OFF
Zeit
ON
OFF
Zeit
coil
Setting the rinsing agent dosage
1. Open the dispenser by turning the cover cap (A) to the left.
2. In order to increase the dosing amount, turn the dosing arrow to the left
by means of a coin or screwdriver. In the works, the setting has been to
Position 4 (ideal setting is position 2 4).
3. Close the dispenser.
