- 9 -
03.2004 R.K. 599 519 400 EN

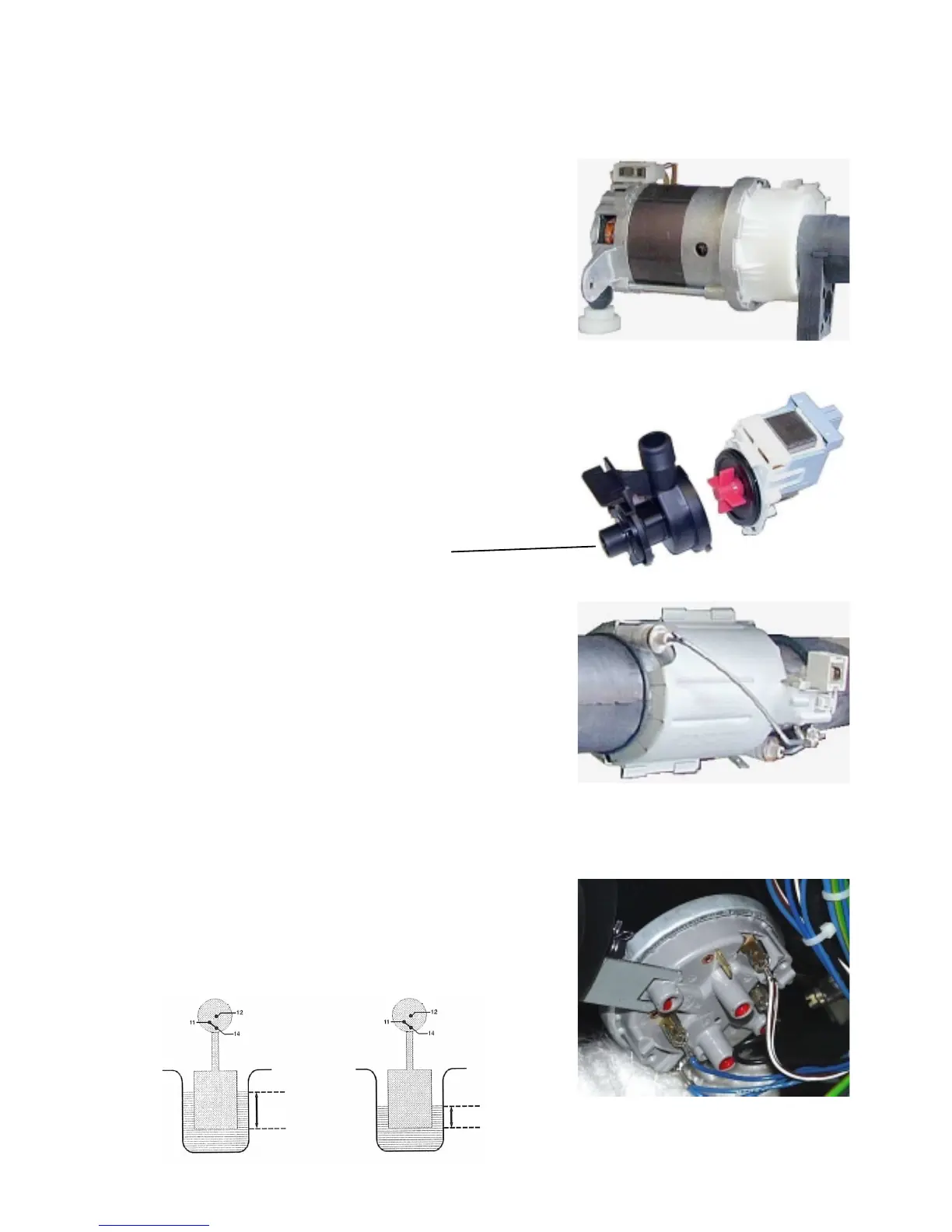

4.2 Drain Pump
The drain pump is driven by a synchronous motor.
Power output 26 W.
Pump rate 15 l/min.
Flap trap
4.3 Flow Heater
The flow heater heats the water to the required temperature. During the
wash cycle, water is contantly passing through the flow heater.
Power output 2100 W
Resistor 25 W
Protector 98 °C ± 5 K
Thermal fuse 260 °C
4. Components
4.1 Circulation Pump
The circulation pump is driven by an asynchronous motor with an
auxiliary winding. The auxiliary winding ist in circuit with a 3 mF
capacitor. A tacho generator is used for speed control.
There are three speeds for rinsing.
1600 1/min,to 2800 1/min, Power output50 W.
Coil resistances
Main winding 38 Ohm
aux. winding 110 Ohm
Tacho ca. 220 Ohm
4.4 Pressure Switch
The pressure switch controls the water level.
Without water, contact 11 - 12 is closed.
Niv 1 = Switch point 75 mmWS / Reset point 30 mmWS
Niv 2 = Switch point 97 mmWS / Reset point 70 mmWS
75 / 97 mm
30 / 70 mm
