5.2 Door area

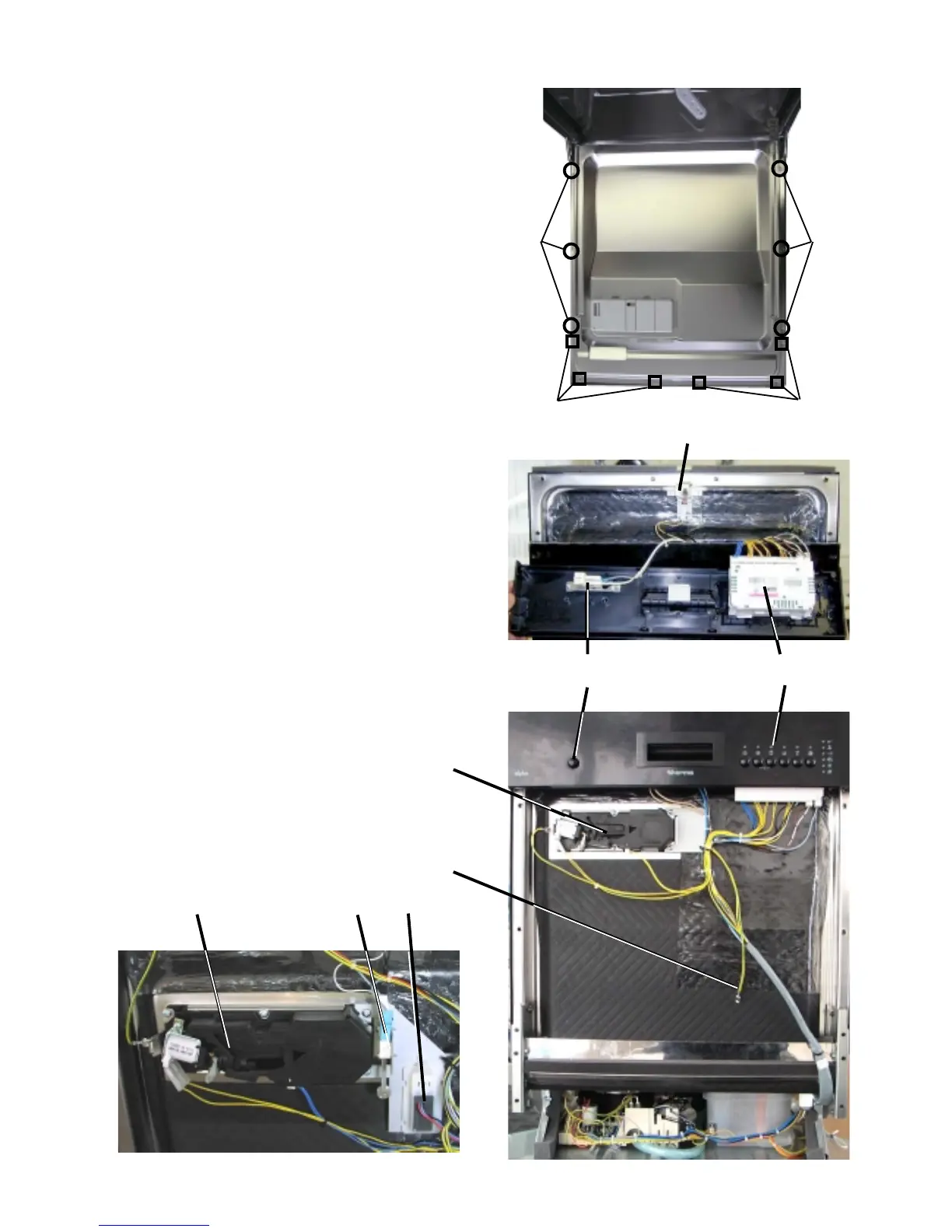

Unscrew the six screws (A). Press the panel
upwards by a small amount and take it off.
Now you have easy access to door lock,
main switch, and the electronic.
Unscrew the six screws
(B). Pull door sheet metal
(outer door) upwards out of hinge.
1 ON/OFF-switch
2 Electronic
3 Door lock
4 Detergent dispenser
5 Spray arm detection (with "SL" only)
6 Earth lead.
7 optional microswitch for interior lighting
