5.3 Service position

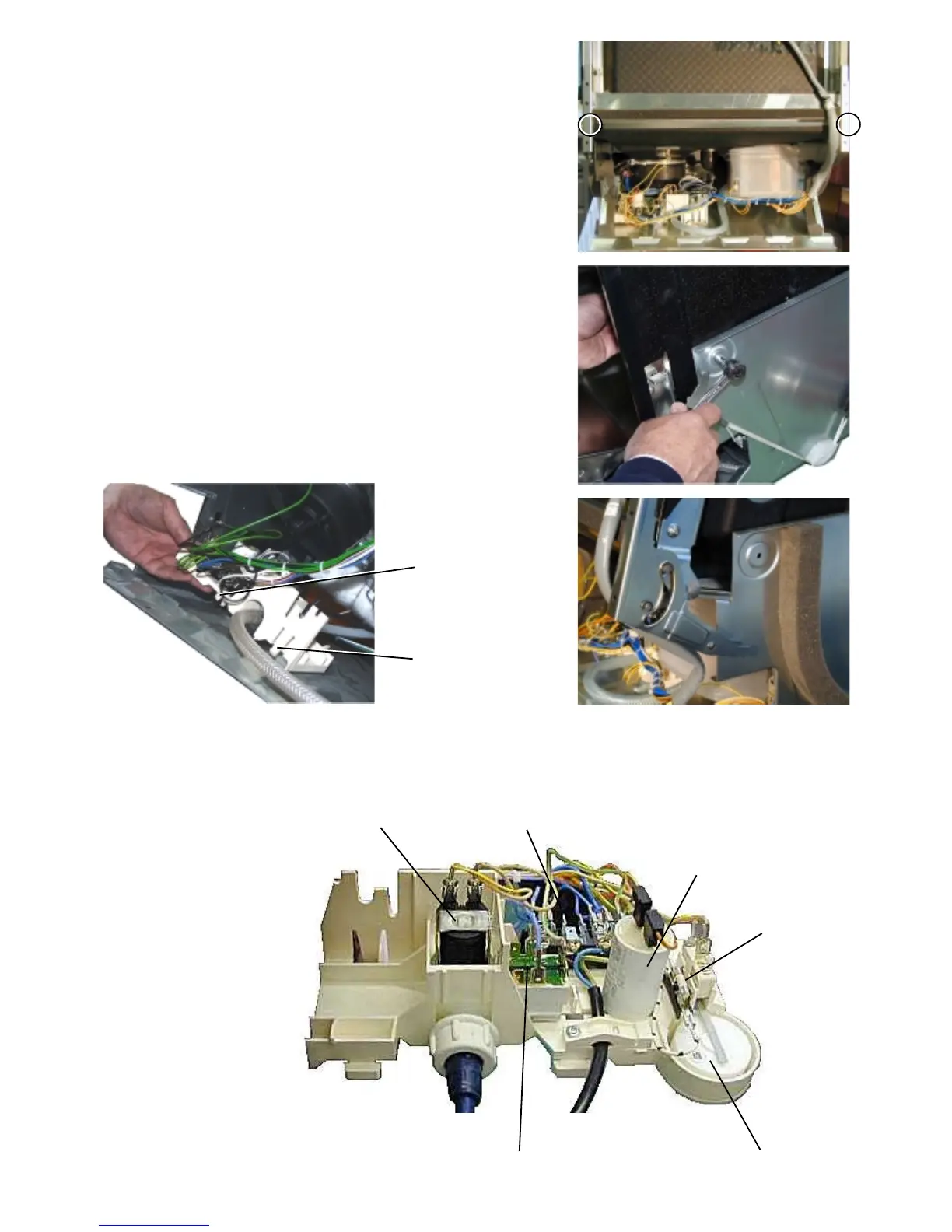

To provide access from the front for exchanging the softening
equipment, if necessary, put the machine in service position.
- Unhinge door springs
- Unscrew front screws at trough/pump compartment (A).
- Unscrew rear screws at trough/pump compartment.
- Unhinge support for recycling pumps
- Detach cable duct fixtures at pump compartment.
- Fold up the trough in service position.
- You can also unclick and draw out the support unit to the front in
other positions than the "service position".
A
A
Holding notch
Support unit
Holding notch
Overflow switch
Fuse for feeble
currents
Inlet valve
Noise limiter
Condenser of
recycling pump
Connection terminal
