- 18 -
03.2004 R.K. 599 519 400 EN

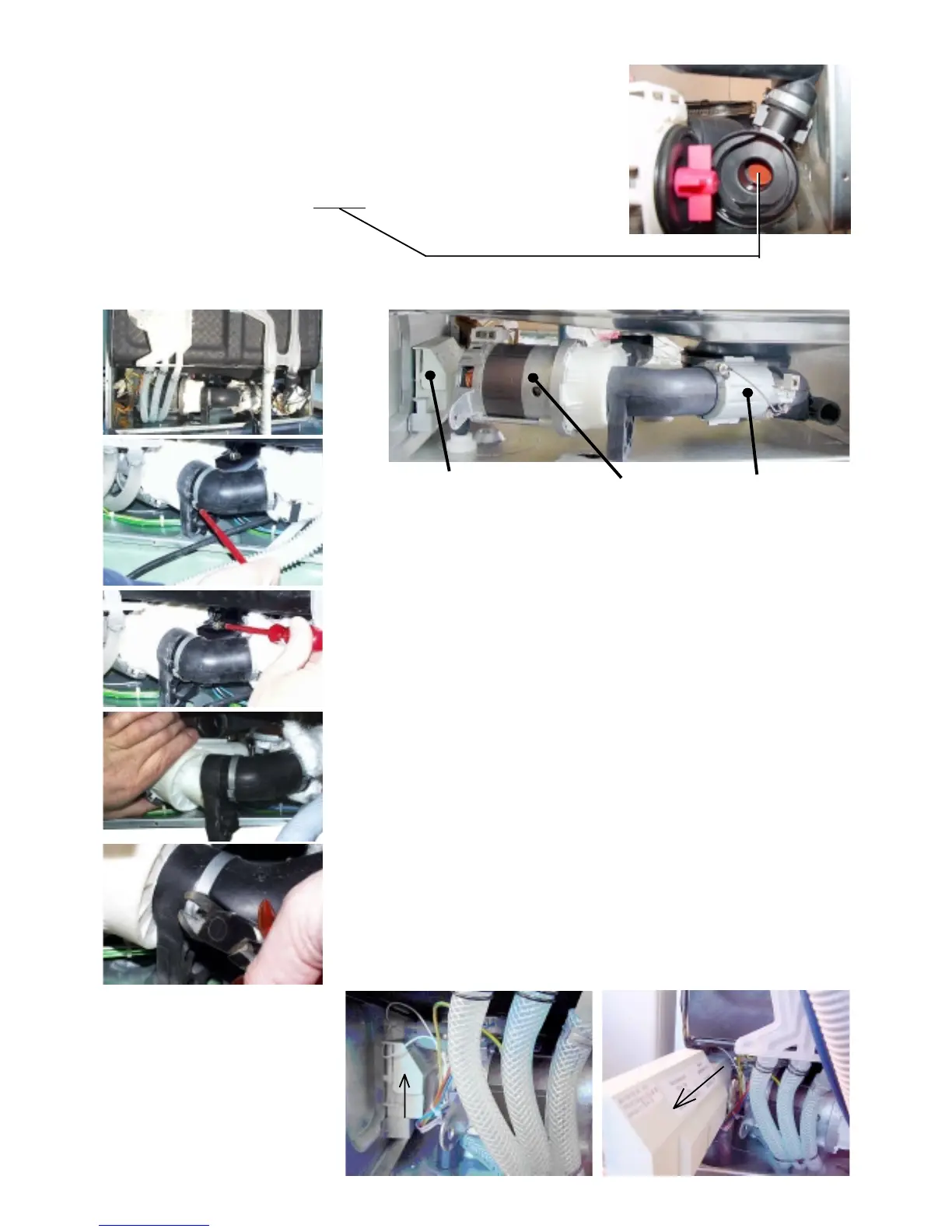

5.7 Drain pump
When you have removed the rear base sheet, you can take off the
discharge pump by turning to the left (bayonet socket) .
Here you can clearly see the
flap trap installed in the suction area
apart from the nonreturn valve.
5.8 Power electronic - Circulation pump - Flow heater
1 Fitting position of recycling pump and heater
2 Fold out the band clamp (2).
3 Unscrew the screw connections. Detach hoses (3).
4 Unlock pump support from base. Now you can take
out the recycling pump (4).
When mounting the recycling pump, note the following:
- You can re-use the strap-type hose clamp if you
press it together with a diagonal cutting nipper (5).
If you cannot re-use this clamp, use a new screwed
clamp.
- Carefully install the rubber foot and the hose fixture.
These 3 components can be exchanged from the rear.
1
2
3
4
5
Power electronic
Unclick and draw out
to the backside.
