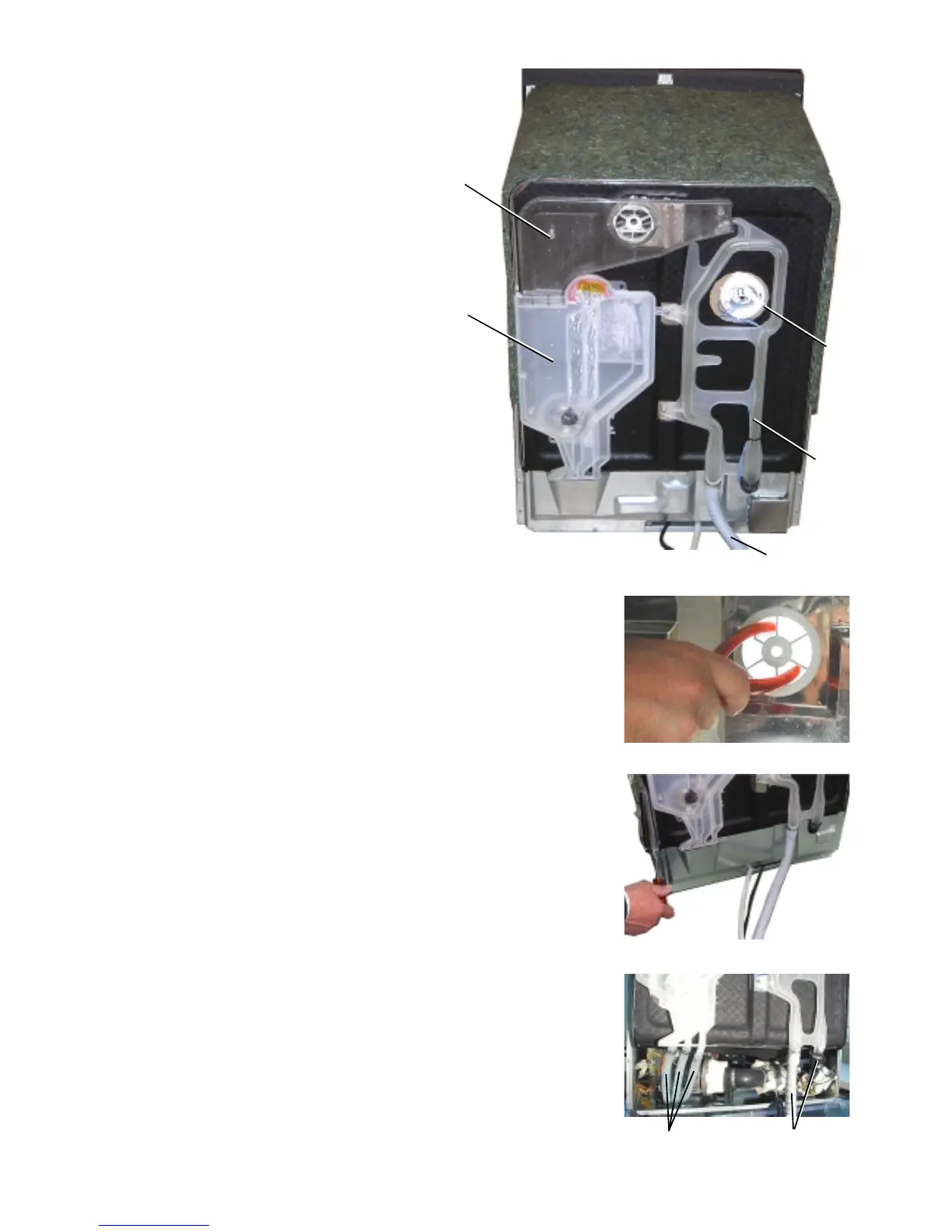

5.5 Back side view
- Drier casing (1)
- Regeneration dosage (2)
- Back suction safety device (3)
- Drain hose (4)
- Interior lighting ( SL) (5)
5.6 Dismount the regeneration dosage device
with drying unit:
- Turn the bayonet socket on the drying unit steam inlet to the left
and unclick. A suitable tool would be a pair of nippers inserted
inverted (5).
- Unscrew the cover plate (6).
- Detach the hoses (7).
- Remove the fastening screw and pull off the regeneration
dosage device along with the drier unit.
- If you wish to remove the flap trap, you also have to remove the
associated hoses (8).
1
2
3
4
6
7
8
5
5
