- 27 -
.
1.
3.
S0
LD0
LED’s blinken
S0
LD0
S1
Tasten S1/S3 für ca. 4 Sek. halten bis LD1-LD3 blinken!
S2
LD2
LD1
LD3
S1
2.
S0
LD0
LD2
LD1
LD3
blinken
S2
S1
LD3
Fertigungsprüfprogramm
läuft ab
PAA
PAA
4.
S0
LD0
blinkt
LD3
PAA
PAA
General information
- Calling the service functions is executed in all designs resp. key arrangements analogously.
- For that you always have to use the keys S0, S1, S2 and S3 independent of their variant-depending
program load.
- In the service function mode the key S3 is ALWAYS responsible for calling the manufacturing test
routine.
It is generally valid:
For calling all service functions you always have first to actuate the function keys S1 and S3 before
switching on the appliance by ON/OFF switch S0!
The keys have to remain pressed about 4 seconds to activate the function.
This procedure is intentionally different to that for the customer functions.

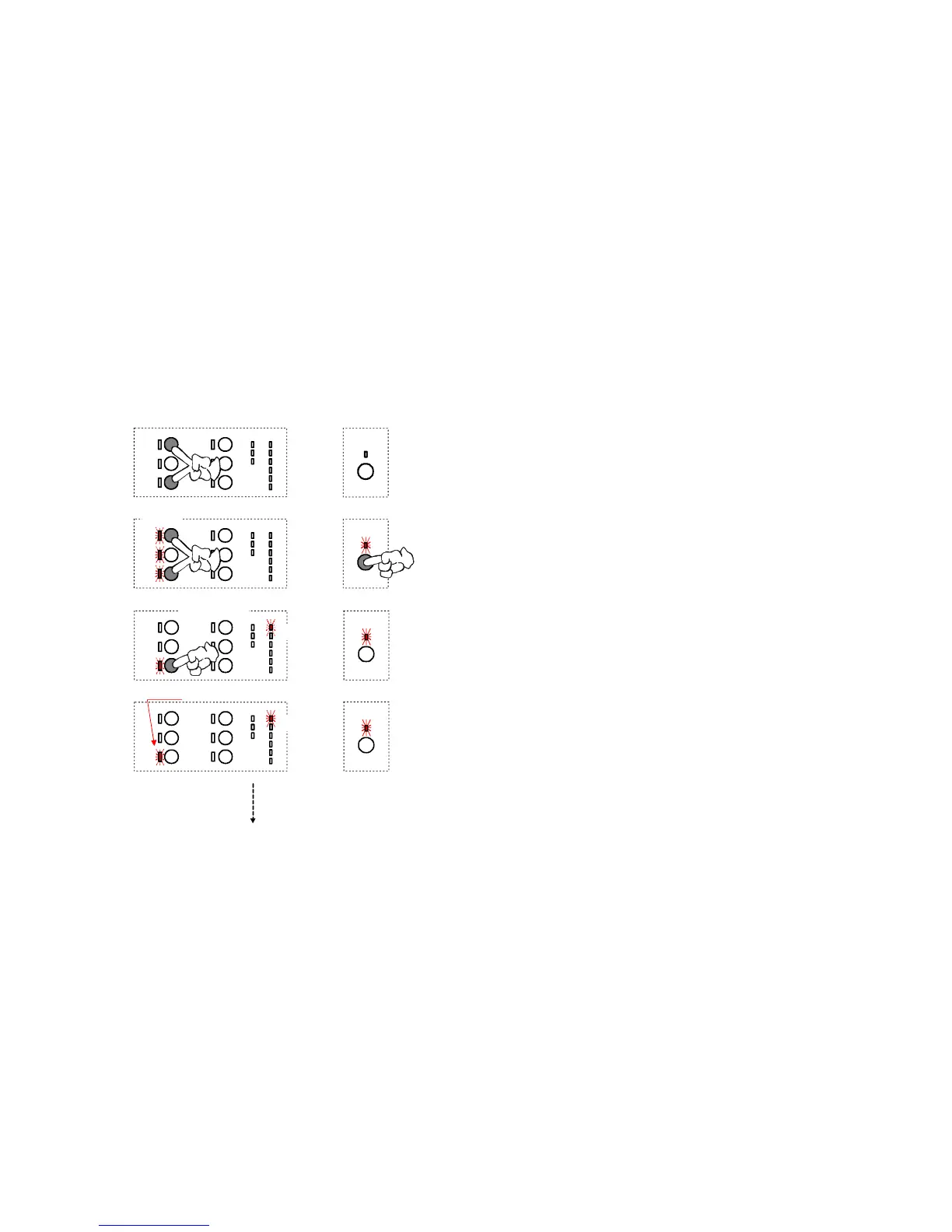

Calling the function manufacturing test routine
1. Press keys S1 and S3 simultaneously and ...
2. ... and switch on the appliance by ON/OFF switch S0.
For that keep the keys S1 and S3 pressed simultaneously
until the 3 confirmation LEDs LD1, LD3 and LD3 are
flashing.
(A temporary flashing up of LEDs is possible and is no fault!)
3. By actuating the function key S3 you can call the
manufacturing test routine. The key LED LD3 continues
flashing, the LEDs LD1 and LD2 go out.
The
corresponding PAA LED will flash until the program starts
automatically.
4. The test routine starts automatically.
The key-LED LD3 continues to flash, the
corresponding PAA-LED is lit.
From that moment the same input philosophy is valid for
the manufacturing test routine as for normal washing
cycles
 cycle run and cycle end
(see description page B 5 )
 delete cycle in advance
(see description page B 6 )
 interrupt program
(see description page B 8)
8.1.3 Service function / manufacturing test routine:
