Electrolux EDW 1503 - Dishwasher Installation and Dimensions; General Installation and Water Connection

- 3 -
03.2004 R.K. 599 519 400 EN

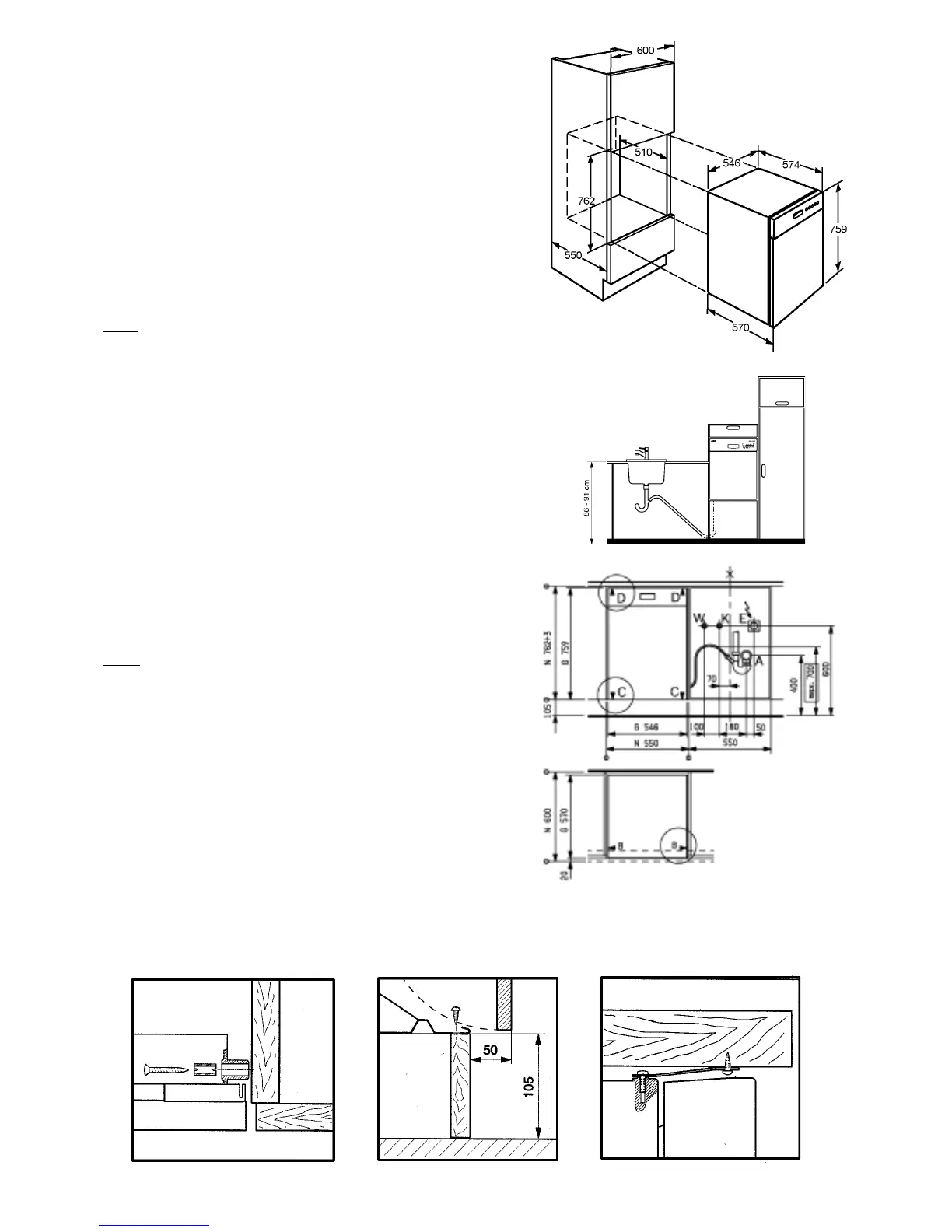

1. Maße / Installation / Einbauhinweise
General
The dishwasher is supplied ready for installation, i.e. with power
cable, discharge hose and admission hose with incorporated sieve
and sealing.
Installation is at the connections provided for this purpose in the
adjacent cupboard (not directly behind the appliance!).
Observe the regulations of the local waterworks and electrical
power supply facilities!
Do not lay down the appliance! The built-in water softener contains
water which could drain off.
Water installation
Inlet:
You can connect the appliance to both cold and hot water
(max. 65 °C).
Water pressure: 1 to 10 bars
A shut-off control element of connection ¾ should be provided by the
Customer.
The inlet hose consists of high-quality plastic with approved compressive
and buckling resistance. A sieve is incorporated on the connection
side to eliminate contamination from the supply network, as well as a
rubber seal.
When making the connection, take care that sieve and seal are in their
correct positions.
After opening the shut-off control, no water is allowed to leak from the
threaded joint!
With hot water connection in particular, slightly retighten the screwed
joint after some minutes of operation (do not use force) once the
connection has sufficiently heated up.
Drain:
Install the flexible drainage hose without buckles.
Installation is at the drain trap of the sink drain pipe installed in the
adjacent cupboard.
The appliance is provided with a non-return device which allows for
installation height of the appliance even above drain trap level.
The highest point of the drainage hose may never exceed the overall
height of the appliance.
A= Ablauf
G= Gerätemaß
K= Kaltw.Anschluß
N= Nischenmaß
W= Warmw.Anschluß
E= Steckdose
Installation
- Align the dishwasher and secure
it at both sides in the upper part of
the washing compartment shell.
Optional fitting positions: at
the base
- Optional accessories available:
Additional lugs at the cover
(Part No. 153 0402-0113)
