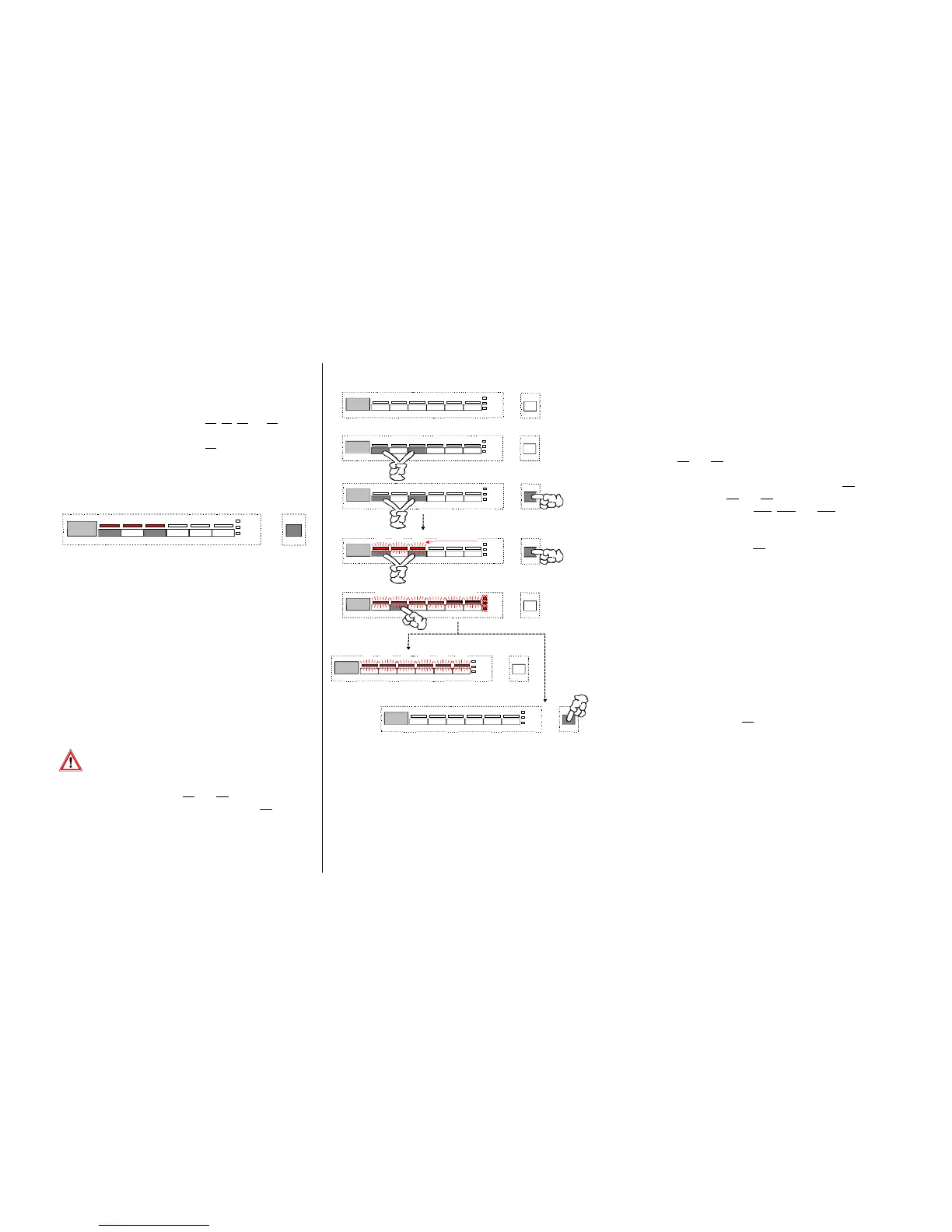

8.3.2. EDW 1503 Service function / LED test with integr. deletion of the fault memory:
General information Calling above-mentioned service function
w Calling the service functions is executed in all designs
Calling the functions
resp. key arrangements analogously.
"LED test with integrated deletion of the fault memory"
w For that you always have to use keys S0, S1, S2 and S3
independent of their variant-depending program load.
1. Appliance in switched-off condition
w In the service function mode, the key S2 is ALWAYS
responsible for the function "LED test with integrated
2. Press keys S1 and S3 simultaneously and ...
deletion of the fault memory".
3. / 4. ... and switch on the appliance by ON/OFF switch S0.
For that keep the keys S1
and S3 pressed simultaneously
until the 3 confirmation LEDs LD1
, LD2 and LD3 are flashing.
(A temporary flashing up of LEDs is possible and no fault!)
5. By actuating the function key S2 you now can call the
function.
All LEDs and "188" in the display are flashing about 30 seconds.
Leaving the function / deletion of the fault memory
When all above-mentioned LEDs resp. the display have been
flashing for about 30 seconds, the function will be left
automatically.
All LEDs of the program and option keys are lit. The indication
in the display goes out. The appliance is in the "prestart"
mode again.
The function can be left even earlier by switching off the
appliance by ON/OFF key S0
.
In any case, the service fault memory is deleted.
For calling all service functions you always have first
to actuate the function keys S1
and S3 before
switching on the appliance by ON/OFF switch S0.
The keys have to remain pressed about 4 seconds
to activate the function.
This procedure is intentionally different to that for the
customer functions.
2.
S1 S3
1.
S0
LD1 LD2 LD3 LD4 LD5 LD6
S1
S2 S3 S4 S5 S6
LD10
LD11
LD12
3.
S1 S3 S0
3-4 Sekunden
5.
188
S2
4.
S1 S3 S0
LD1 LD2 LD3
alle blinken
Display und alle LED blinken
... AUS nach 30sek. automatisch
S0
S0
... AUS durch manuelle Betätigung über Ein/Aus
LD1 LD2 LD3 LD4 LD5 LD6
EDW 1503 / VGA
LD1
LD2 LD3
S1 S3
1
99
S0
36
