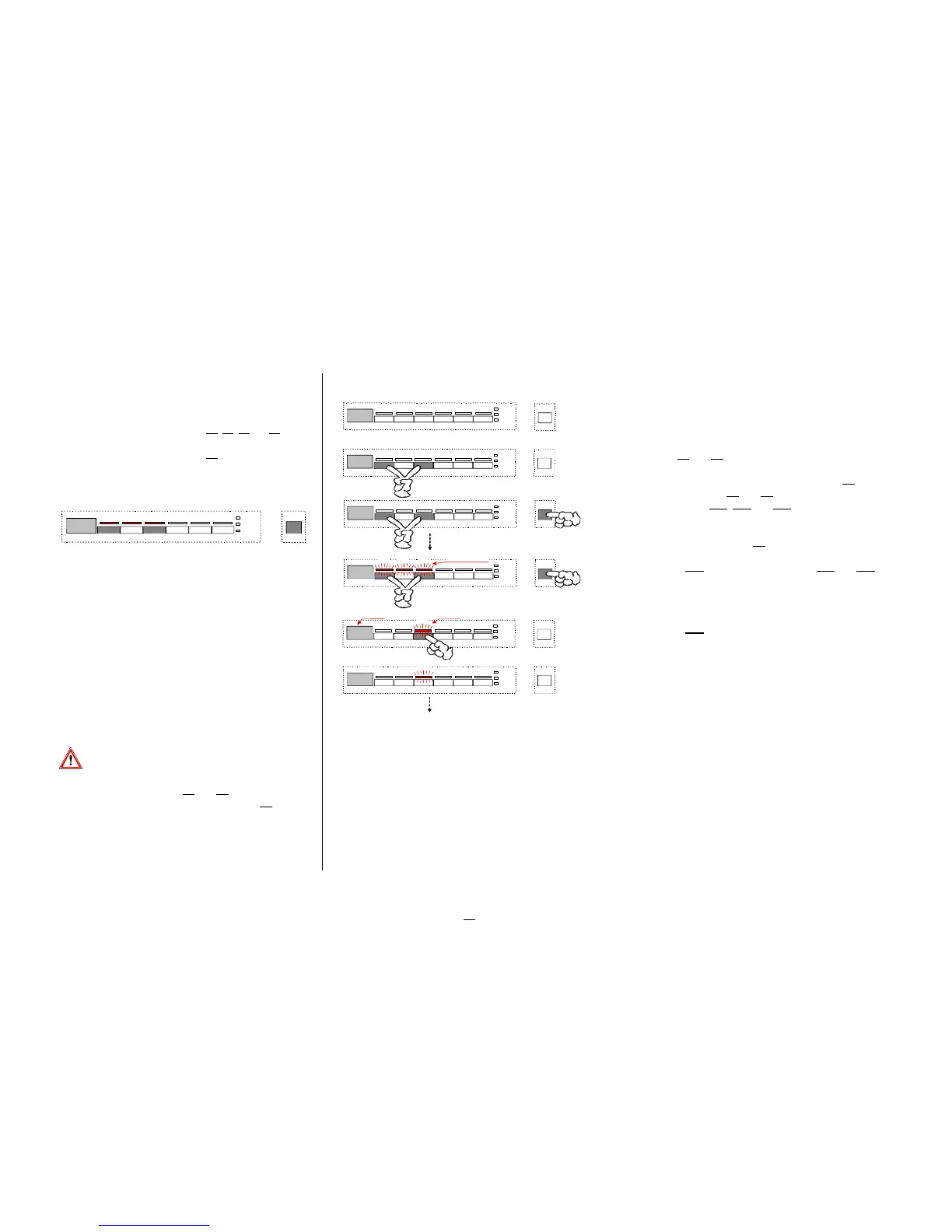

8.3.3. EDW 1503 Service function / manufacturing test routine:
General information Calling above-mentioned service function
w
Calling the service functions is executed in all designs
Calling the function "manufacturing test routine"
resp. key arrangements analogously.
w
For that you always have to use keys S0
, S1, S2 and S3
1.
Appliance in switched-off condition
independent of their variant-depending program load.
w
In the service function mode, the key S3
is ALWAYS
2.
Press keys S1 and S3 simultaneously ...
responsible for calling the "manufacturing test routine"
3. / 4. ... and switch on the appliance by ON/OFF switch S0.
For that keep the keys S1
and S3 pressed until the 3
confirmation LEDs LD1
, LD2 and LD3 are flashing.
(A temporary flashing up of LEDs is possible and no fault!)
5. By actuating the function key S3 you can call the
manufacturing test routine.
The key LED LD3
continues flashing, LEDs LD1 and LD2
go out. The presumable run time is indicated in the
display flashing.
6. The test routine starts automatically.
The key LED LD3
continues flashing.
The display is now indicating the expected run time.
From that moment the same input philosophy is valid for the
manufacturing test routine as for normal washing cycles.
F
cycle run and cycle end
(see description page B 5 )
F
delete cycle in advance
(see description page B 6 )
F
interrupt program
(see description page B 8 )
It is generally valid:
For calling all service functions you always have first
to actuate the function keys S1 and S3 before
switching on the appliance by ON/OFF switch S0!
The keys have to remain pressed about 4 seconds to
activate the function.
This procedure is intentionally different to that for the
customer functions.
2.
S1 S3
1.
S0
LD1 LD2 LD3 LD4 LD5 LD6
S1
S2 S3 S4 S5 S6
LD10
LD11
LD12
3.
S1 S3 S0
3-4 Sekunden
5.
21
LD3
S3
blinkt
6.
21
LD3
Fertigungsprüfprogramm läuft
4.
S1 S3 S0
LD1 LD2 LD3
alle blinken
Display blinkt
EDW 1503 / VGA
LD1
LD2 LD3
S1 S3
1 99
S0
