8.4.2. Service menu / Error code and actuator test
2.
Ä
The error memory can be read out by pressing the Ok/Start button.
Ä
Ä
The error descriptions are explained in chapter 21.
Ä
3.
Ä
The actuator test is activated the next time the Ok/Start button is pressed.
Ä
Ä
With each additional push of the button, the next stage is called up as follows.
2 AKTUATORS 4
Triggering of the regeneration valve
2 AKTUATORS 5
Triggering of the drain pump
2 AKTUATORS 6
Triggering of the inlet valve
(Filling to the level - should the level already exist do not fill)
2 AKTUATORS 7
Triggering of the heater element
(Only carried out when the level is detected)
2 AKTUATORS 8
Triggering of the circulation pump
2 AKTUATORS 9
Triggering of the detergent dispenser
2 AKTUATORS 10
Triggering of the dryer ventilation
2 AKTUATORS 11
Triggering of the autodosage currently unused
2 AKTUATORS 12
Triggering of the water hardness sensor currently unused
Ä
4.
Leaving the function
By pressing the Reset button, the function is quitted and "SELECT
PROGRAM" appears in the text field of the display -
or this occurs should no button be pressed within 60 seconds
- or the dishwasher is deactived with the On/Off button.

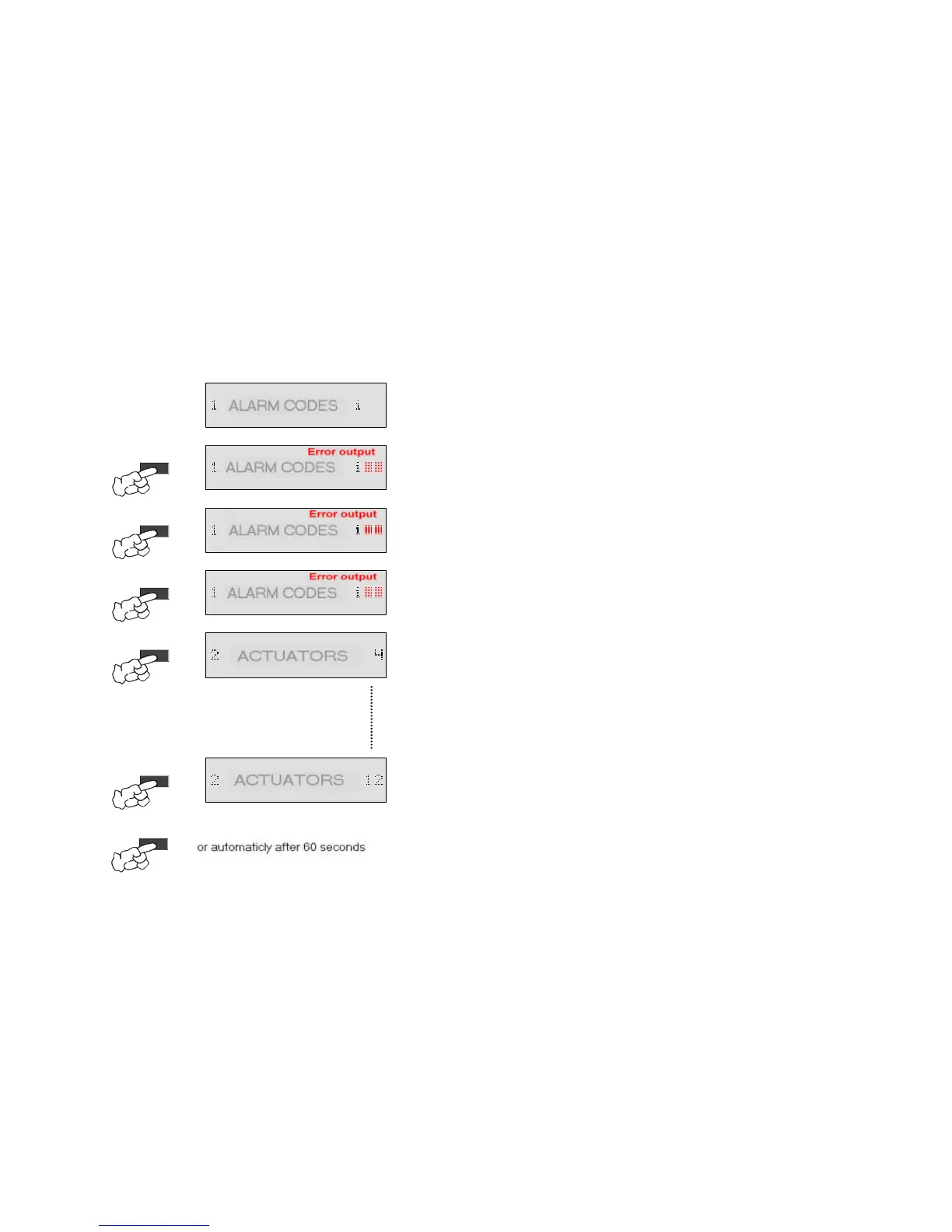

"1 ALARM CODE" appears in the display text line and the coded error is
displayed next to the "i" . (Iin the example only red fields)
An additional 2 errors can be read out the next two times the
Ok/Start button is pressed.
"2 ACTUATORS " appears in the display text line and the actuator which is
triggered is indicated with a number.
All 3 error memories and the complete actuator test can be called up
any number of times by scrolling.
1.
2.
4.
OK / START
OK / START
3.
OK / START
RESET
oder automatisch nach 60sek.
OK / START
OK / START
Ausgabe Fehler 1
Ausgabe Fehler 2
Ausgabe Fehler 3
