Technical Support – RA Chapter 3

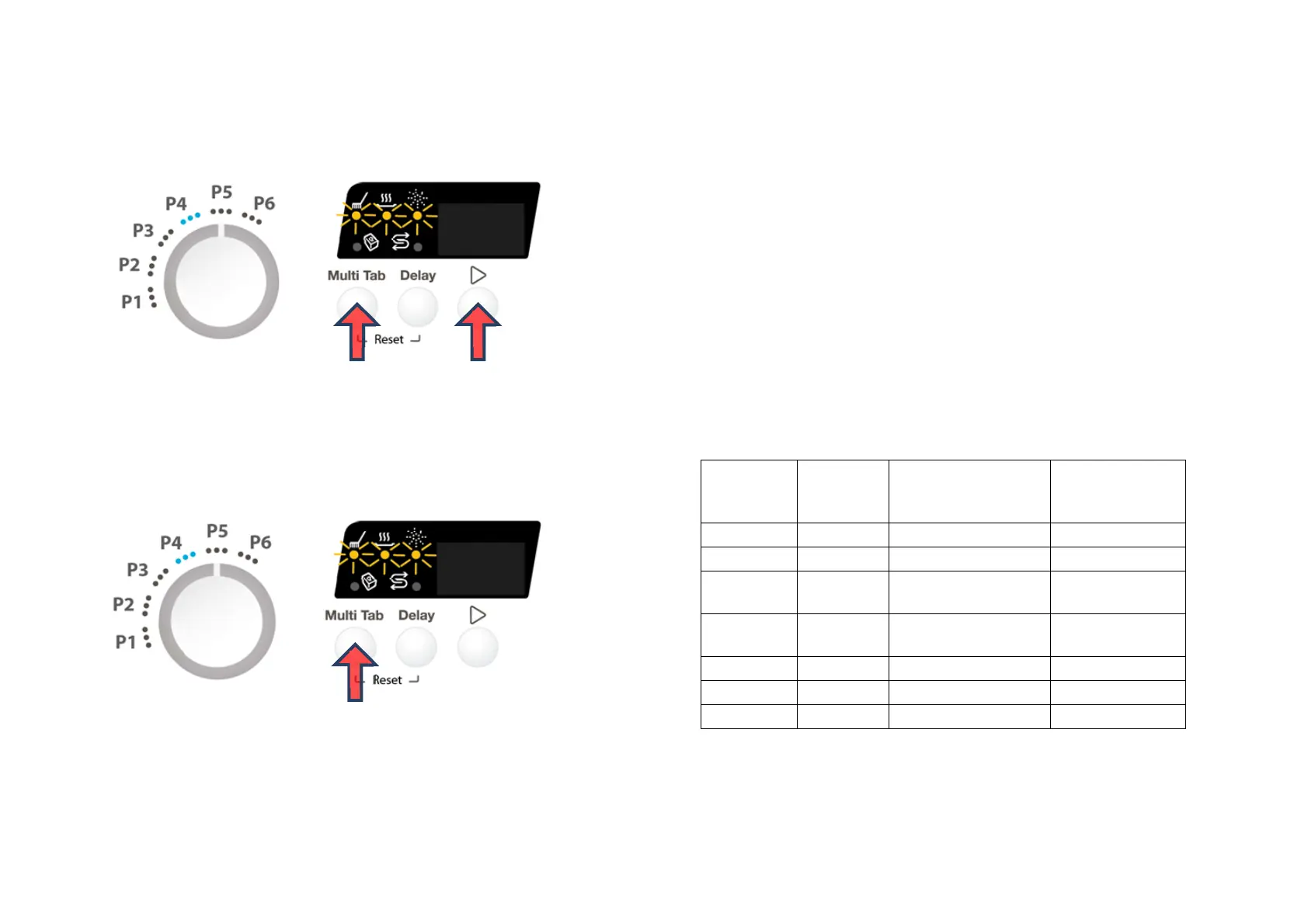

Press and hold button S1+S3 simultaneously while switching the
appliance on, keep holding the buttons for 4 seconds.
L1, L2 and L3 blink to indicate that Service mode is accessed.
Alarm Reading and Actuator Test
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S1 to show the first alarm code.
 L1 blinks to indicate the machine is in Alarm Reading.
 The first alarm code saved is shown in the display.
2. Press button S1 again to show the second alarm code.
3. Press button S1 once more to show the third alarm code.
4. Press button S1 the fourth time to move to Actuator Test. Press
button S1 repeatedly will sequentially turn on one actuator at a
time.
 L1 is turned off. L2 blinks to indicate the machine is in
Actuator Test.
 The actuator number is shown in the display.
5. Press button S1 when actuator number 10 is activated, the
machine will cycle back to Alarm reading and show the first
alarm code saved.
6. Switching off the appliance will exit Service mode.
Number of
S1 Pressed
Actuator
Number
in Display
Actuator Comment
4 4 Regeneration Valve
5 5 Drain Pump
6 6 Inlet Valve
Off
when water
level reached
7 7 Heater
On only if water
level reached
8 8 Wash Pump
9 9 Dispenser
10 10 Auto door opening
