Electrolux EEFDG317TIW - Installation Instructions

13
Installation Instructions

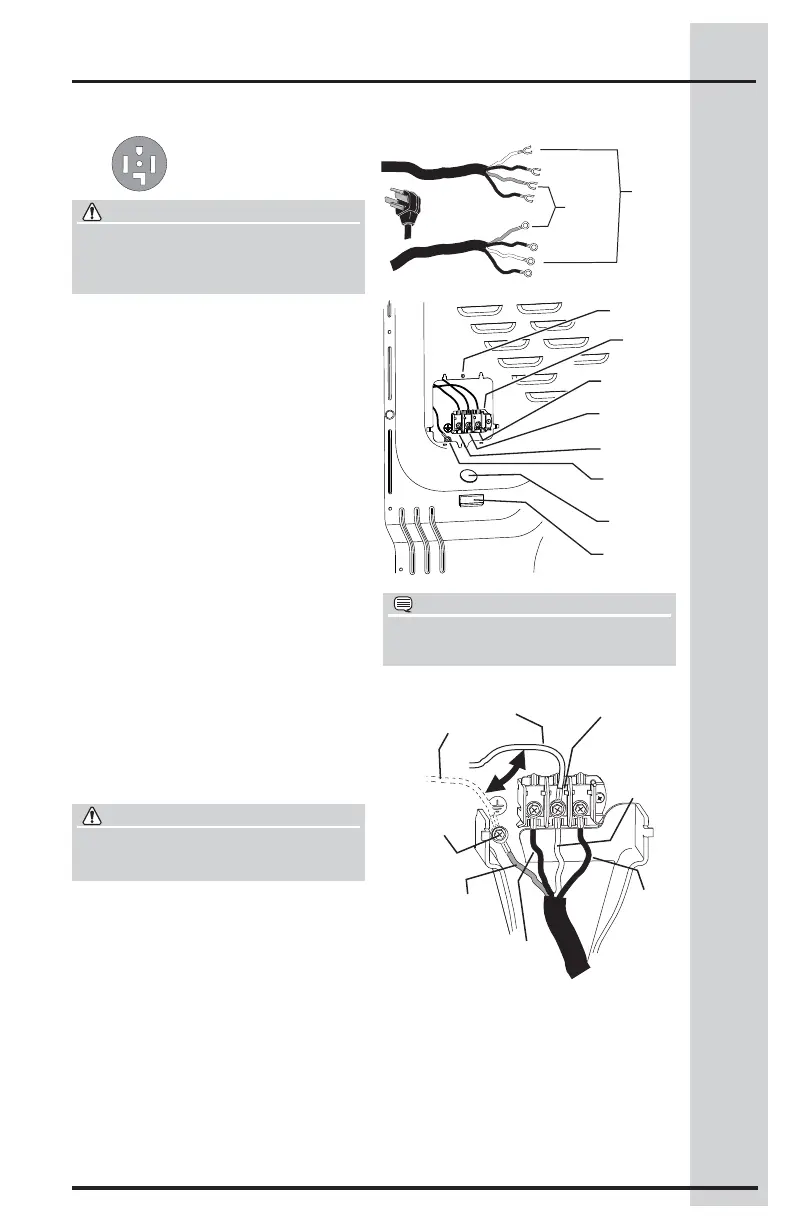

Electrical connection (non-Canada) - 4 wire cord
Internal ground
Internal ground
(GREEN screw)
(GREEN screw)
Install
Install
UL-approved
UL-approved
strain relief here
strain relief here
Terminal screw
Terminal screw
recovery slot
recovery slot
Line 1
Line 1
(BRASS terminal)
(BRASS terminal)
Neutral
Neutral
(SILVER terminal)
(SILVER terminal)
Line 2
Line 2
(BRASS terminal)
(BRASS terminal)
Access cover
Access cover
screw
screw
Terminal
Terminal
block
block
4-wire receptacle
(NEMA type 14-30R)
1. Turn off power supply to outlet.
2. Remove the screw securing the terminal block
access cover in the lower corner on the back
of the dryer.
3. Install a UL-approved strain relief
according to the power cord/strain relief
manufacturer’s instructions in the power
cord entry hole below the access panel. At
this time, the strain relief should be loosely
in place.
4. Thread an UNPLUGGED, UL-approved, 30
amp. power cord, NEMA 14-30 type DRT or
SRDT, through the strain relief.
5. Disconnect the internal (WHITE) dryer
harness ground wire from the (GREEN)
ground screw next to the terminal block.
6. Attach the ground (GREEN) power cord
wire to the cabinet with the ground (GREEN)
screw. Tighten the screw securely.
7. Move the internal dryer harness ground
(WHITE) wire to the terminal block and
attach it along with the neutral (WHITE)
power cord wire conductor to the center,
SILVER colored terminal on the terminal
block. Tighten the screw securely.
8. Attach the RED and BLACK power cord
conductors to the outer, BRASS colored
terminals on the terminal block. Tighten both
screws securely.
Neutral
Neutral
(WHITE wire)
(WHITE wire)
30 AMP
30 AMP
NEMA 14-30
NEMA 14-30
Ground
Ground
(GREEN wire)
(GREEN wire)
9. Follow manufacturer’s guidelines for fi rmly
securing the strain relief and power cord.
10. Reinstall the terminal block cover.
Move internal ground (WHITE)
Move internal ground (WHITE)
wire to neutral (SILVER)
wire to neutral (SILVER)
terminal for 4-wire system.
terminal for 4-wire system.
Neutral
Neutral
terminal
terminal
GREEN
GREEN
ground screw
ground screw
BLACK or
BLACK or
RED power wire
RED power wire
BLACK
BLACK
or RED
or RED
power wire
power wire
GREEN
GREEN
ground wire
ground wire
WHITE
WHITE
neutral wire
neutral wire
NOTE
If a terminal screw falls during cord installation,
it can be retrieved in the terminal screw
recovery slot below the access panel.
WARNING
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/
conductor at connections.
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before
servicing could result in personal injury or even
death.
