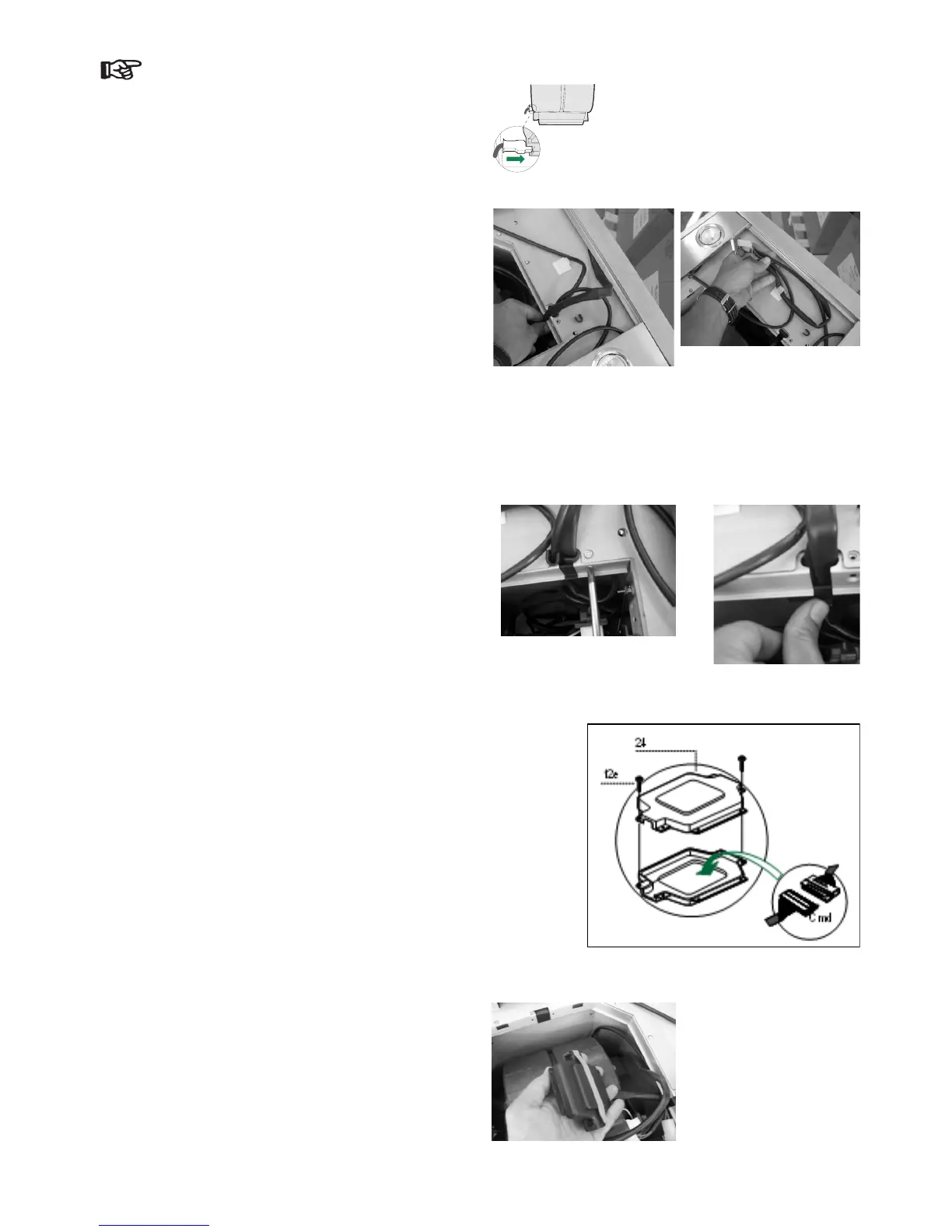

Electrical Connection
• Connect the Hood to the Mains power supply, inserting
a two-pole Switch with a contact aperture of at least
3 mm.
• Remove the Metal grease lters (see par. on “Mainte-
nance”) and make sure that the power supply Cable
is properly inserted in the Suction fan socket.
• Take the wires indicated in g.1 and pass them through
the slot formed on the galvanized diffuser support,
as shown in g.2.
• Position the nishing plug 27 over the housing in
the diffuser support, xing it using a screw 12e (2.9
x 9.5) and applying the 2 cable clamp elements 26
as indicated in gs. 3 and 4.
• Connect the Controls Connector g. 5.
• Store both the Connectors in the Protective box 24 and
close it with 2 Screws 12e (2.9 x 9.5), provided.
• Remove the protective lm from the double-sided
adhesive on the connection box, and x it inside the
motor compartment g. 6.
1
2
3
4
5
6
