RANGEHOOD INSTALLATION (CONT)
installation of telescopic covers
Separate the inner and outer flue covers. Carefully
reassemble the upper and lower flue covers sections by
sliding the inner into the outer flue cover. Carefully lower
the assembled upper and lower flue covers onto the top
of the rangehood body. and insert the flue cover into the
rangehood body approximately 5mm. Fix upper flue cover
to the wall mounting bracket with screws supplied. Ensure
that the upper section is extended.
NOTE: Carefully remove the plastic protective coating,
if present, from the flue covers. Pay particular attention
when removing protective plastic coating from decals.
IMPORTANT!
Care must be taken to ensure the screws are not cross
threaded when attaching the upper flue cover. If installed
in recirculating mode, insert the carbon filter
To complete the rangehood installation, insert the three
Your Electrolux rangehood is now ready to use.

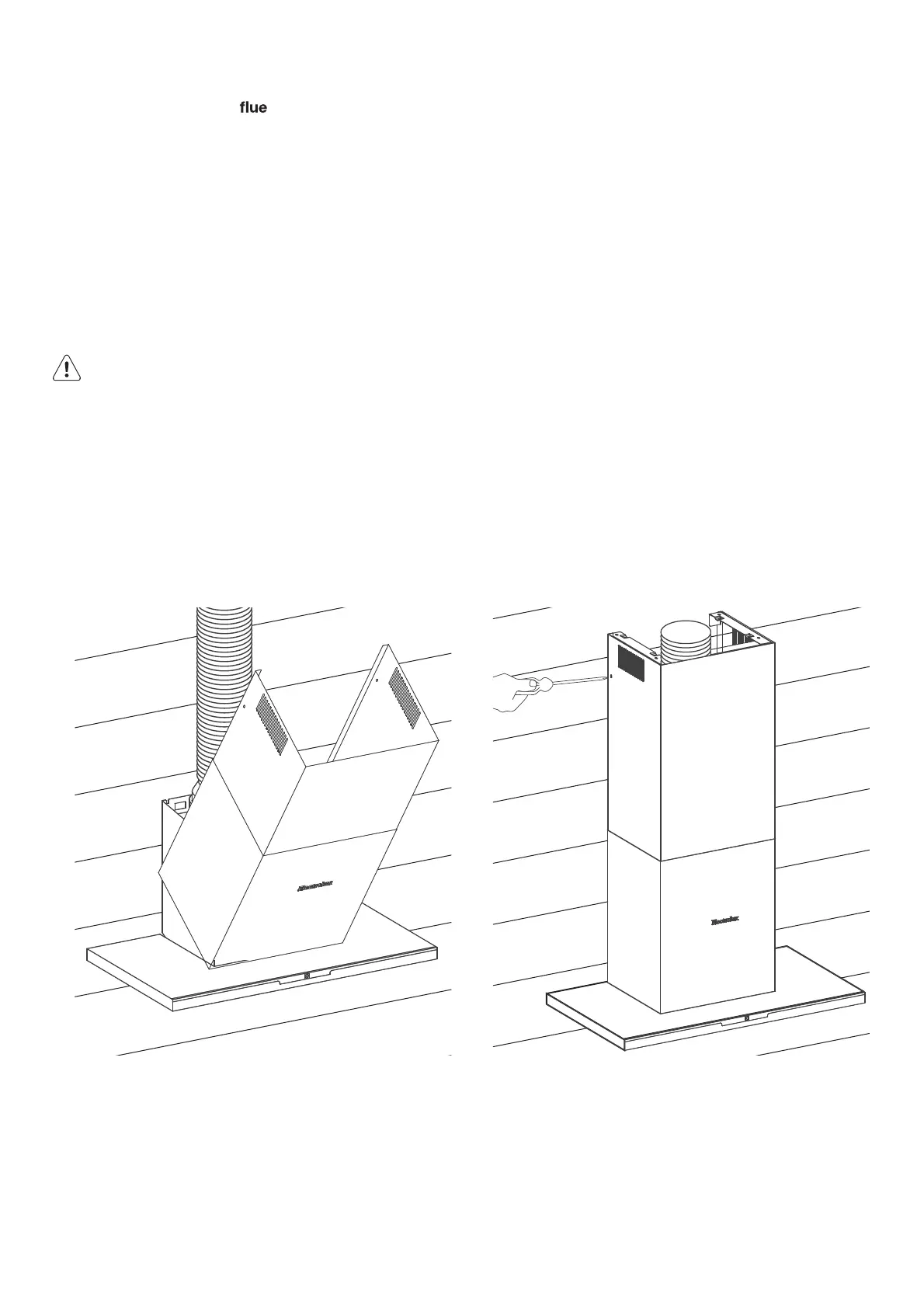

Fig. 13 Fig. 14
filters to the underside of the hood body. Place back edge
of filter into position and push up front edge so that the
filter clips into place.
