13
Mounting accessories included
1 allen spanner for torx screws
1 deflector
4 spacers for 16mm side walls
2 screws 2,9 x 13 to fix flange or deflector
4 screws 4,5 x 16 mm for fixing to side walls
1 Flange Ø 120 mm
1 charcoal filter frame + 2 screws 3,5x9,5
Preparing the wall unit ceiling
Extraction mode
• Before installing the hood, drill a hole in the
roof of the wall unit
(see Fig. 7). This hole is to allow passage of the
outlet pipe and the power cable, and to facilitate
servicing.
• The wall unit must have a minimum body depth
(without door) of 300 mm with recessed light
screen and min. 370 mm with flush-mounted
light screen. The unobstructed internal height
must be at least 370 mm.
Recirculation mode
• Before installation of the hood in the wall unit,
a 115x115 mm hole for the deflector should be
cut in the ceiling of the wall unit. Fig. 8.
• Depending on the wall unit height, you need for
return air operation a pipe union or additionally
a non-flammable length of pipe as far as the
ceiling of the wall unit.
Outlet hole
Extraction mode
• When used as an extractor unit, the hood must
be fitted with a 120mm diameter hose.
• Fix the flange on the hood outlet hole. Bajonett
attachment. Fig. 9
Recirculation mode
• Fix the deflector on the outlet hole of the hood
(Fig. 10) or on top of the wall unit ceiling. Fig.
11.
190
238
172

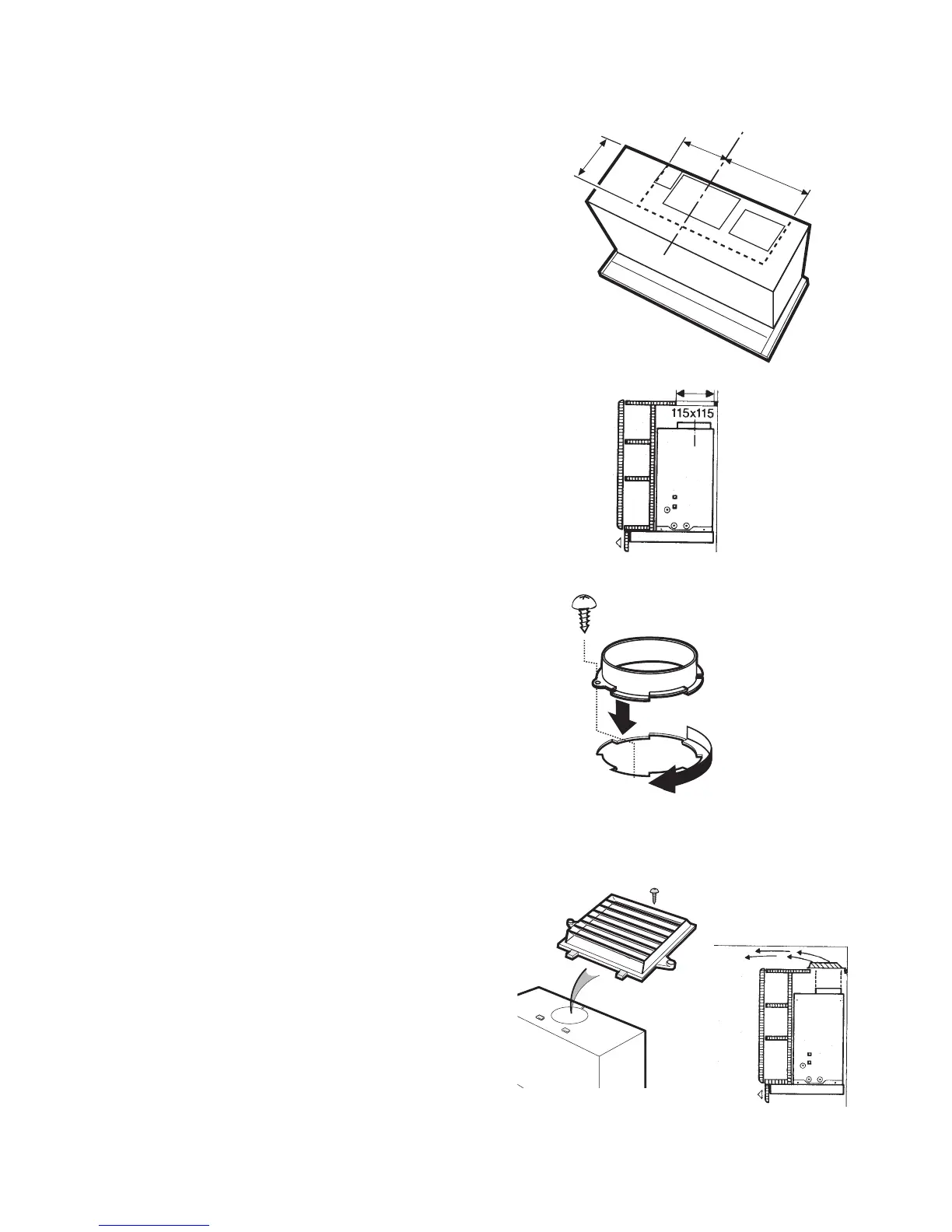

Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11
