15
Fitting the charcoal filter for
recirculation mode
If the extractor hood is installed as a return air
appliance (Recirculation
mode - air outlet above the wall unit), the charcoal
filter (available from
your local Service Force Centre) must be fitted
before the grease filters are fitted.

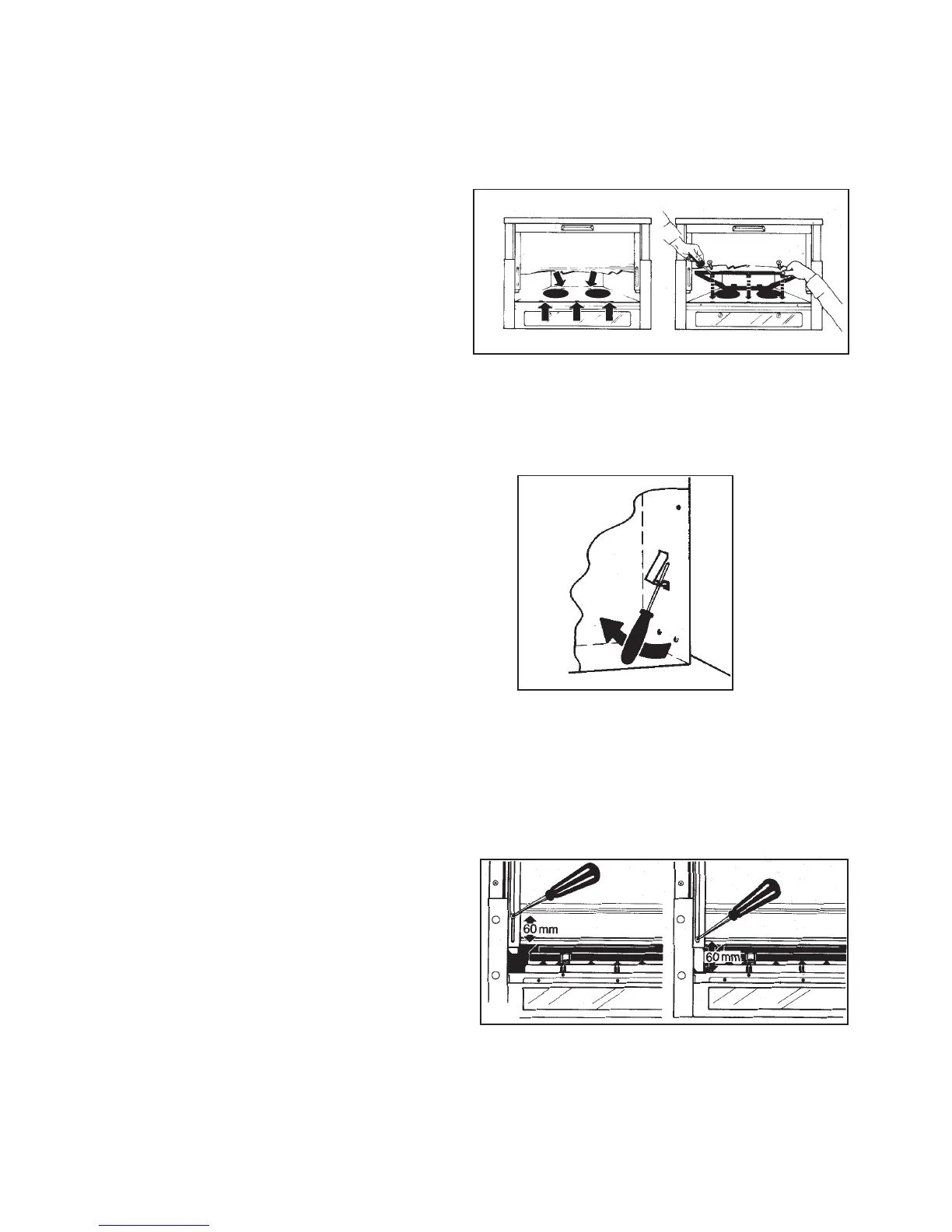

Installation sequence:
1. Insert the holding frame for the charcoal filter
in the shaft of the hood with the 2 lugs facing
upwards and then clip into the lower holes.
2. Fix the holding frame on the lower part of the
housing of the hood with the 2 screws supplied.
Fig. 14.
3. Fit the charcoal filter (see paragraph “Charcoal
filter”)
4. Refit the grease filters. Push-in the visor.
Removing the hood from the wall
unit
If, for technical reasons (extraction mode/
recirculation mode conversion) the extractor hood
has to be removed from the wall unit, proceed as
follows:
• Fully withdraw the visor and remove the grease
filter.
• Loosen the 4 or 6 mounting screws of the hood
(wall unit mounting).
• To loosen both mounting claws (installation
aids), place a max 3 mm dia. Phillips screw-
driver in the spring opening and simultaneously
press the springs inwards (towards the
appliance housing). Fig. 15.
Important: Hold the hood firmly!
Adjusting the extractor part (E -
Fig. 1) - Fig. 16
On wall units with a body depth of 275 mm to 335
mm, the visor depth can be adjusted as follows:
• Remove both grease filters.
• Loosen the screws on both end-stop brackets
and set the visor depth (min. 275 mm, max. 335
mm).
• Refit the screws.
• Refit the grease filters.
Fig. 14
Fig. 15
Fig. 16
