3.9 Installing hob under the
hood
If you install the hob under a
hood, please see the
installation instructions of the
hood for the minimum
distance between the
appliances.

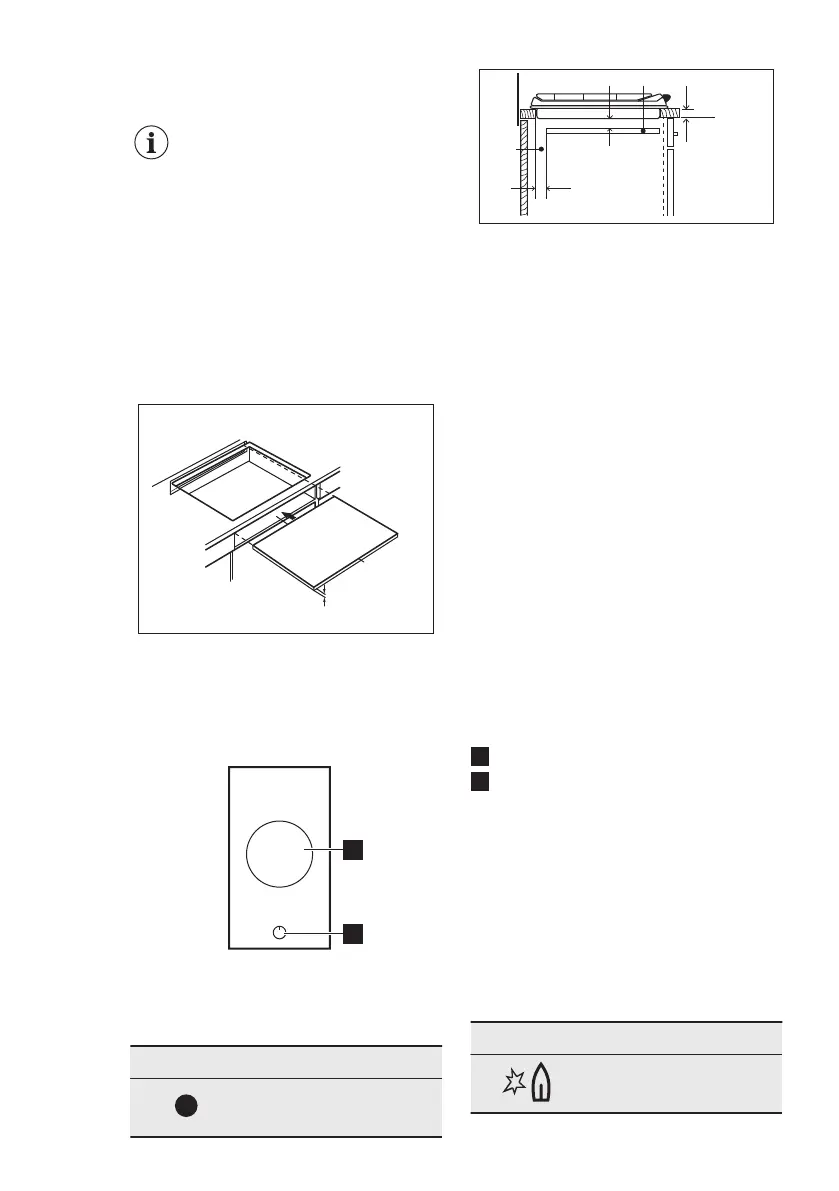

3.10 Possibilities for insertion
The panel installed below the hob must
be easy to remove and let an easy
access in case a technical assistance
intervention is necessary.
Kitchen unit with door
min 30 mm
60 mm
B
A
min 20 mm
(max 150 mm)
A. Removable panel
B. Space for connections
Kitchen unit with oven
The electrical connection of the hob and
the oven must be installed separately for
safety reasons and to let easy remove
oven from the unit.
4. PRODUCT DESCRIPTION
4.1 Cooking surface layout
1
Multi Crown burner
2
Control knob
4.2 Control knob
Symbol Description
no gas supply / off posi‐
tion
Symbol Description
ignition position / maxi‐
mum gas supply
ENGLISH 11
