ARESI1006
Copyright 2018 ELECTROLUX HOME PRODUCTS PTY LTD Technical Services
Overview of UI’s
• An internal user interface (UI) to control a French door/Multi door product. This UI is
responsible to control the cavities, functions.
• An external user interface (UI) located LH fridge door 4 buttons I&W is responsible for
dispenser features.
• An internal user interface (UI) located on the top drawer, used to control the setting of the
VCZ drawer.

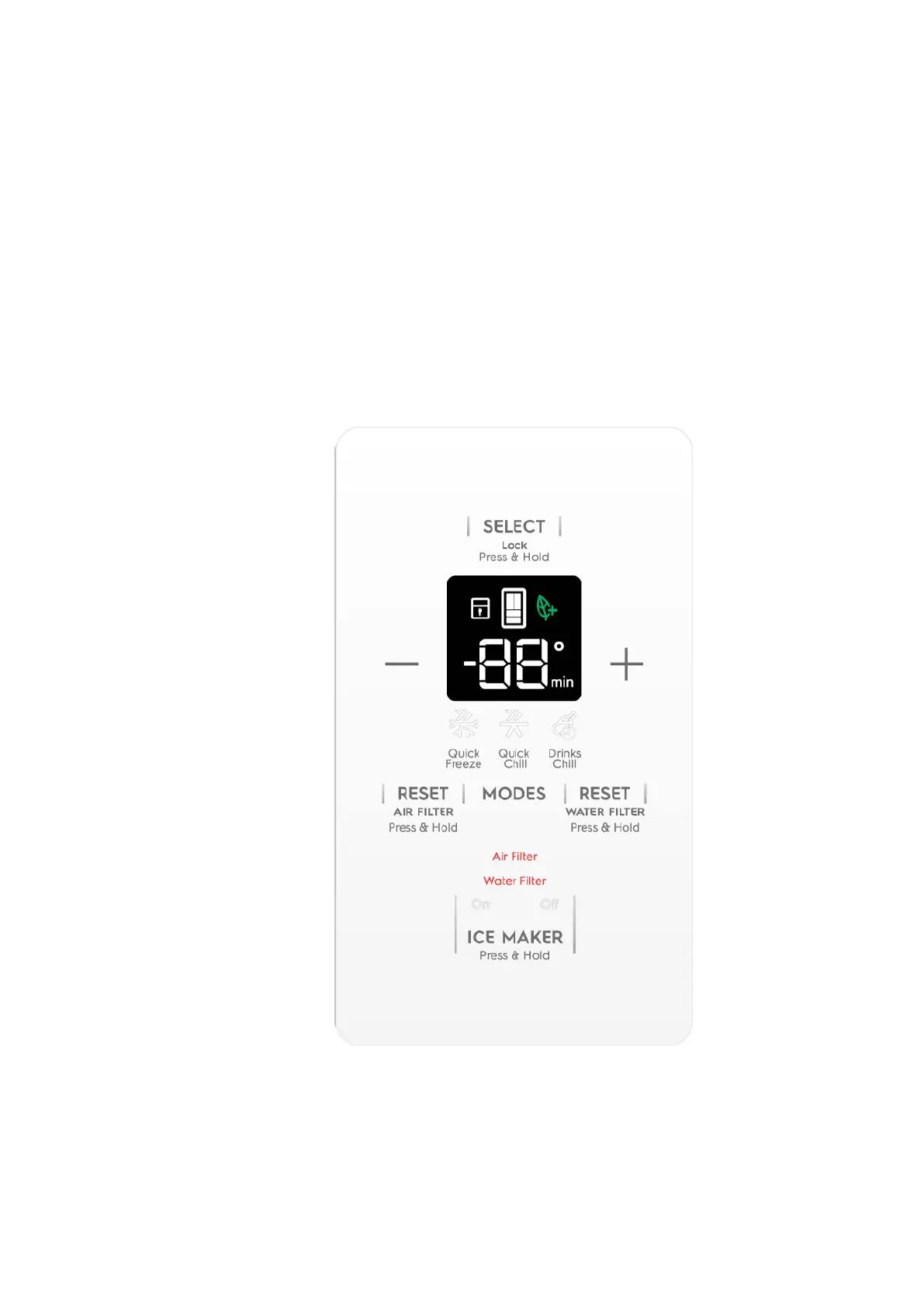

Internal UI – Overlay
Electrolux:
