Electrolux EHE6899SA - List of Functions in the Diagnostic mode

ARESI1006
 Copyright 2018 ELECTROLUX HOME PRODUCTS PTY LTD Technical Services
6. A tone will plat to confirm, when enter you are in the Diagnostic mode
7. To EXIT from diagnostic mode, press and hold + and – buttons for 10 seconds. The
appliance will restart in normal mode.
List of Functions in the Diagnostic mode:
Displayed
code
Function
Test
Action
Available
Behavior Expected
-
First Screen
-

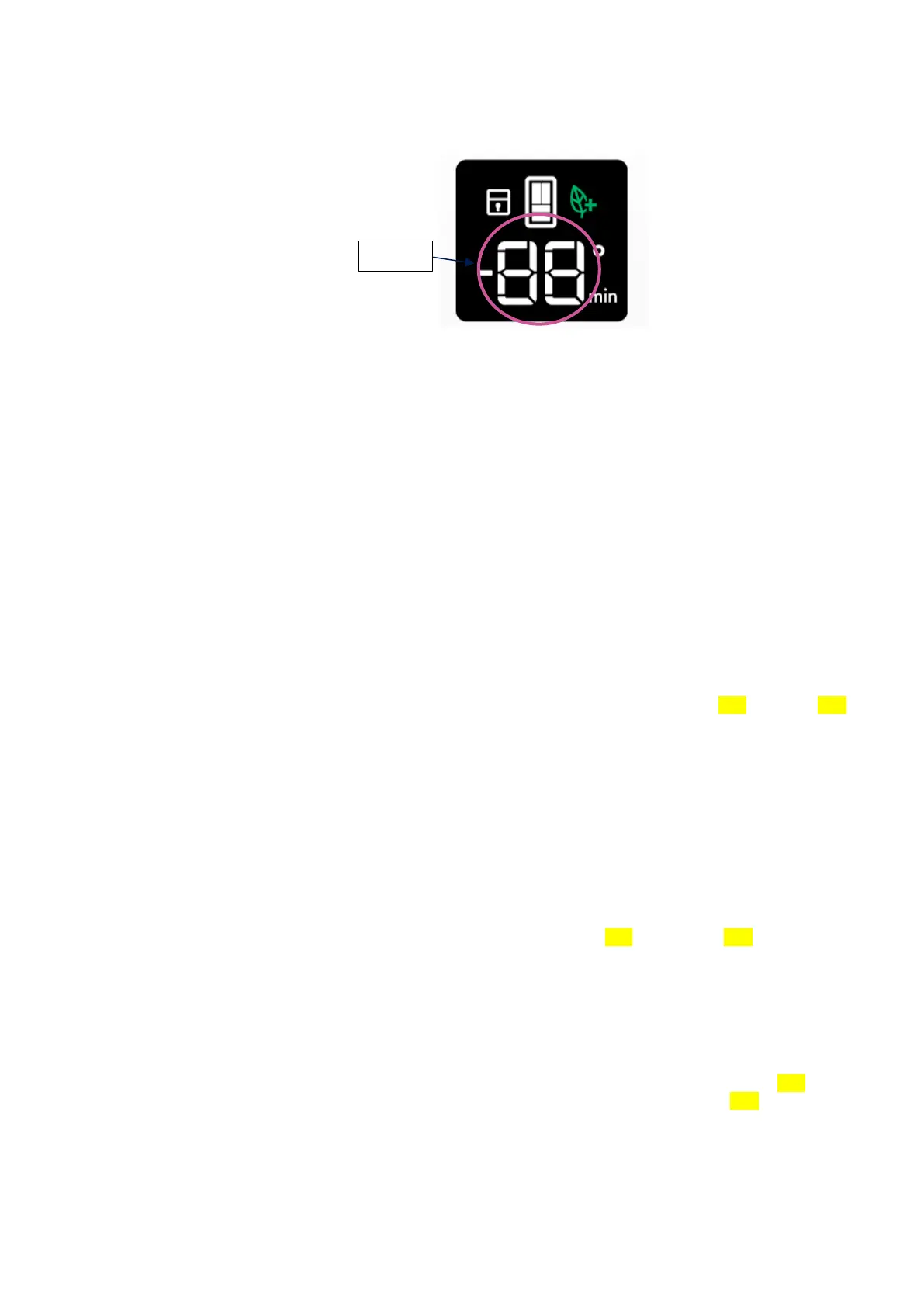

a. Turn On all LED’s into Display of
Ruby UI, External Cobalt UI I&W and
Indigo UI.
-
Second
Screen
-
a. Turn Off all LED’s into Display of
Ruby UI, External Cobalt UI I&W and
Indigo UI.
2
Freezer
Defrost
Heater
Press (MODES) to
change the status
of the Function
a. Heater on when “on”, off when “oF”.
b. Freezer Evaporator Defrost Sensor
temperature is flashed on the display.
c. Watch for temperature increase with
the heater on.
d. It may take a few minutes for the
evaporator to heat up. Maximum 5
minutes ON or 45°C Freezer Evap
Defrost Sensor threshold.
e. Press (MODES) button to change the
status
8
Main Valve
Press (MODES) to
change the status
of the Function
a. Main valve (faucet) is activated when
“on”; stops when “oF”
b. Press (MODES) button to change the
status
11
Cube/Crush
Solenoid
Press (MODES) to
change the status
of the Function
a. Do not leave solenoid activated for
more than 1 minute. It is forced
automatically to off after 1 minutes of
continuous on.
b. Solenoid activated when “on”,
deactivated when “oF”.
c. Press (MODES) button to change the
status
Display
