2. PRODUCT DESCRIPTION

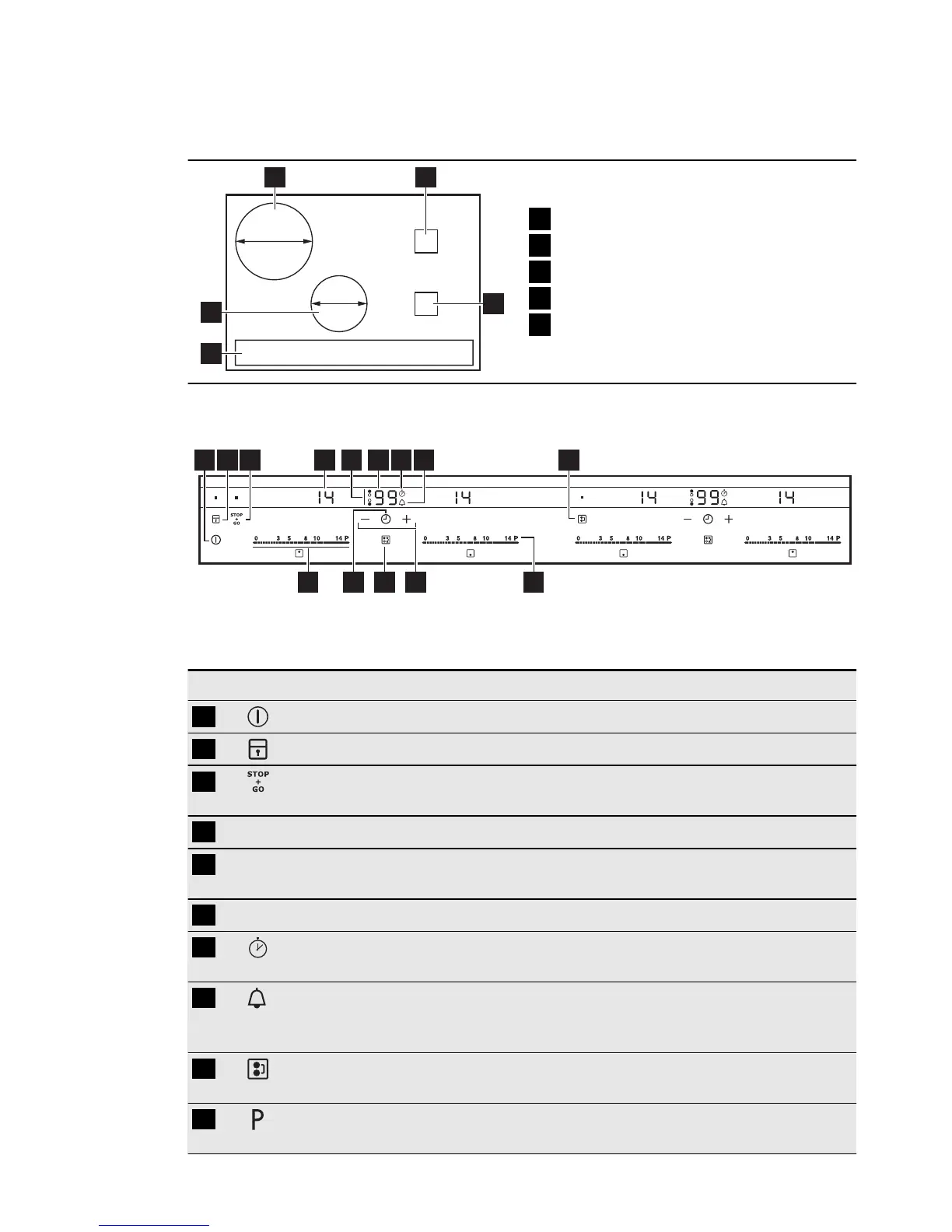

2.1 General overview
1
4
5
210 mm
145 mm
2
3
1
Induction cooking zone
2
Induction cooking zone
3
Induction cooking zone
4
Control panel
5
Induction cooking zone
2.2 Control panel layout
3 8
101214 1113
4 6 721 5 9
Use the sensor fields to operate the appliance. The displays, indicators and
sounds tell which functions operate.
sensor field function
1
To activate and deactivate the appliance.
2
To lock/unlock the control panel.
3
To activate and deactivate the STOP+GO
function.
4
A heat setting display To show the heat setting.
5
Timer indicators of cooking
zones
To show for which of the cooking zones
you set the time.
6
Timer display To show the time in minutes.
7
To show that the Count Up operates (1 to
59 minutes).
8
To show that the Count Down Timer oper-
ates (1 to 99 minutes) or show that Minute
Minder operates.
9
To activate and deactivate the Bridge
function.
10
To activate and deactivate the Power
function.
ENGLISH 5
