Electrolux EHT8 - Plumbing Circuits

22

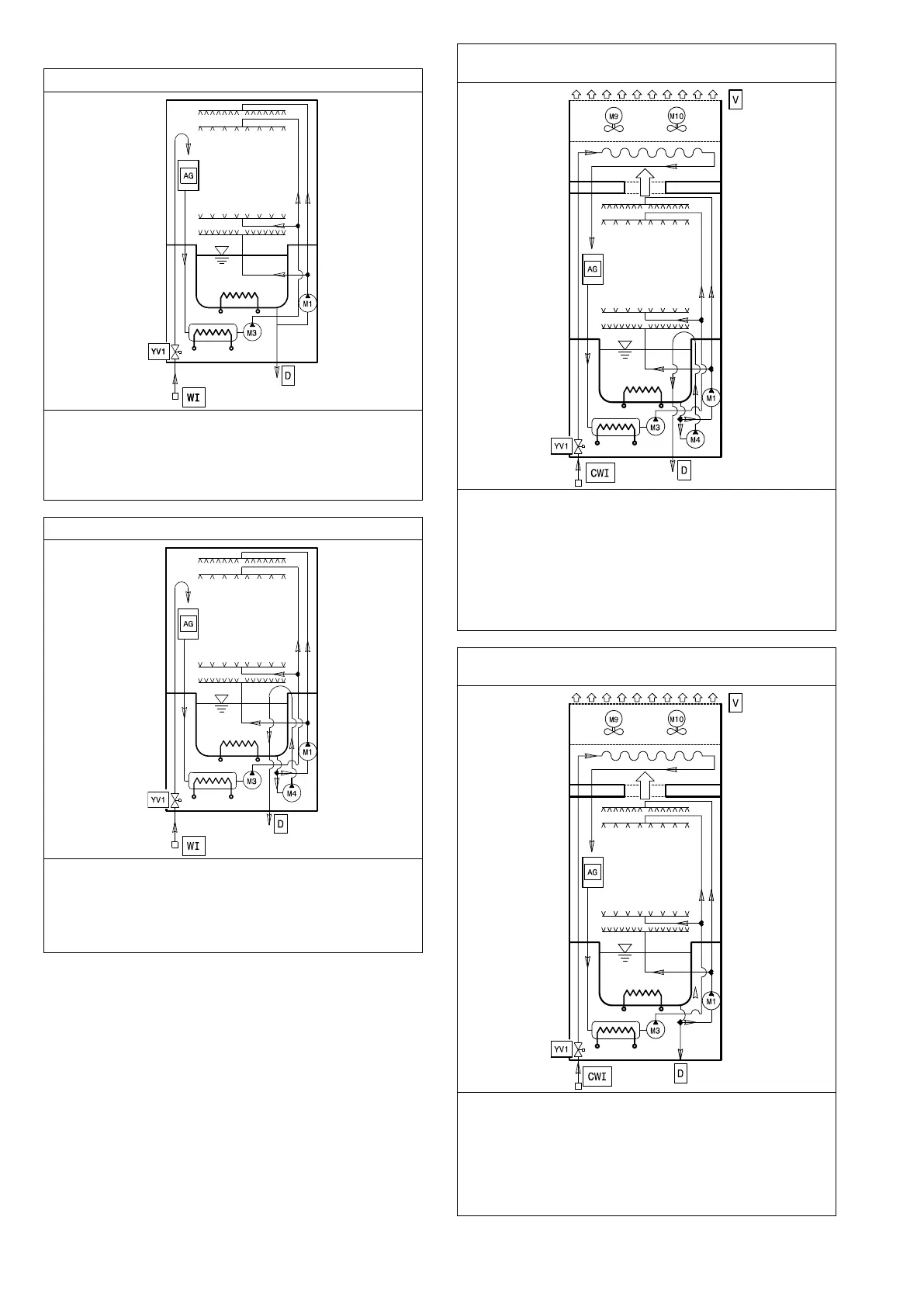

E.9 Plumbing circuits
Hood dishwasher without drain pump
LEGEND
• WI = Water inlet
• D = Drain
• M1 = Wash pump
• M3 = Rinse pump
• AG = Air Gap
YV1 = Filling solenoid
valve
Hood dishwasher with drain pump
LEGEND
• WI = Water inlet
• D = Drain
• M1 = Wash pump
• M3 = Rinse pump
• M4 = Drain pump
• AG = Air Gap
• YV1 = Filling solenoid
valve
Hood dishwasher with drain pump and Energy Saving
Device (ESD)
LEGEND
• CWI = Cold Water inlet
(~15℃)
• D = Drain
• M1 = Wash pump
• M3 = Rinse pump
• M4 = Drain pump
• M9 = ESD fan motor
• M10 = ESD fan motor
• AG = Air Gap
• YV1 = Filling solenoid
valve
• V = Ventilation
Hood dishwasher without drain pump and with Energy
Saving Device (ESD)
LEGEND
• CWI = Cold Water inlet
(~15℃)
• D = Drain
• M1 = Wash pump
• M3 = Rinse pump
• M9 = ESD fan motor
• M10 = ESD fan motor
• AG = Air Gap
• YV1 = Filling solenoid
valve
• V = Ventilation
