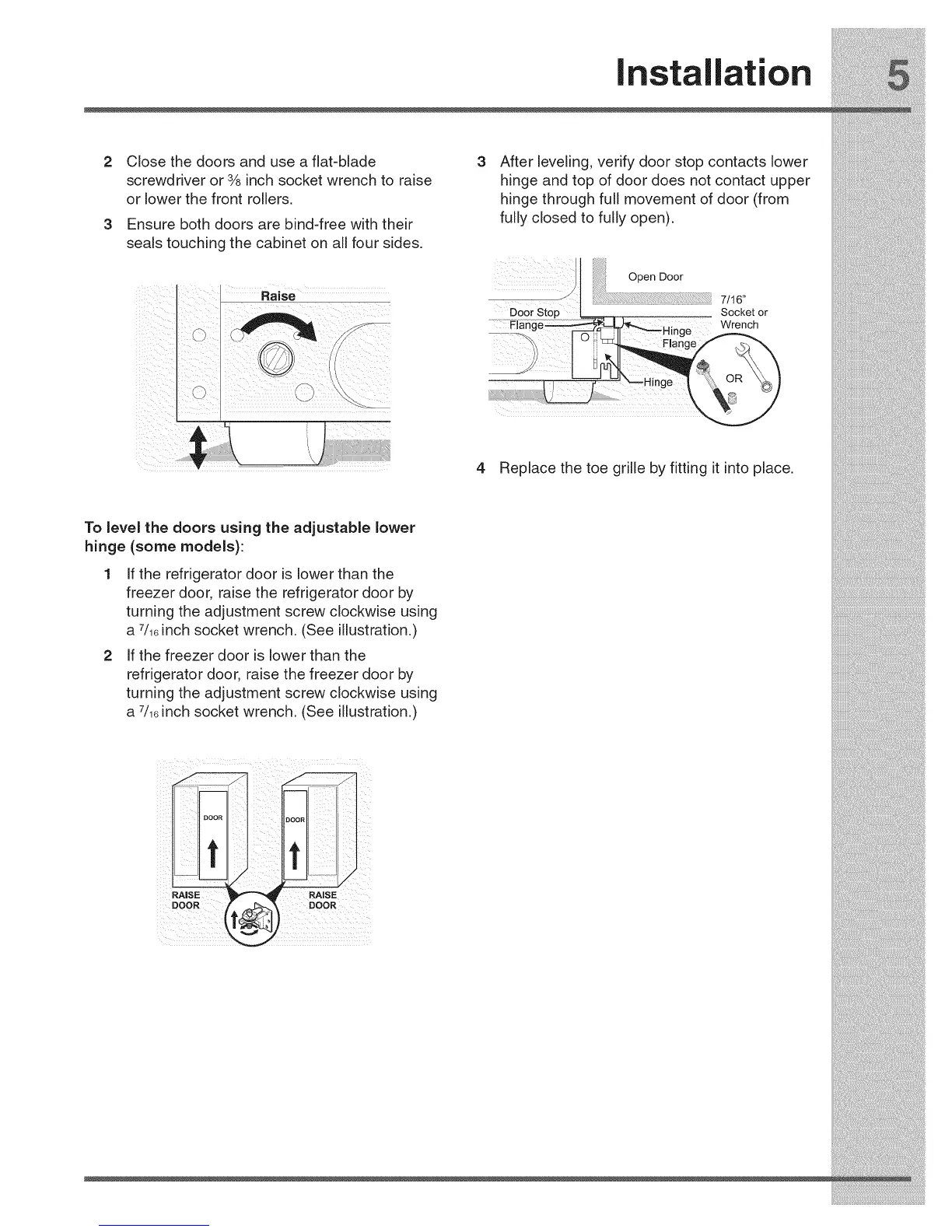

Instal ion
2 Close the doors and use a flat-blade
screwdriver or ¾ inch socket wrench to raise
or lower the front rollers.
3 Ensure both doors are bind-free with their
seals touching the cabinet on all four sides.
3
After leveling, verify door stop contacts lower
hinge and top of door does not contact upper
hinge through full movement of door (from
fully closed to fully open).
Raise
7/16"
Socket or
_Hinae Wrench
4 Replace the toe grille by fitting it into place.
To level the doors using the adjustable lower
hinge (some models):
1 If the refrigerator door is lower than the
freezer door, raise the refrigerator door by
turning the adjustment screw clockwise using
a 7/16inch socket wrench. (See illustration.)
2 If the freezer door is lower than the
refrigerator door, raise the freezer door by
turning the adjustment screw clockwise using
a 7/16inch socket wrench. (See illustration.)
RAISE
PAISE
DOOR
