Instal
ng Door
and[es

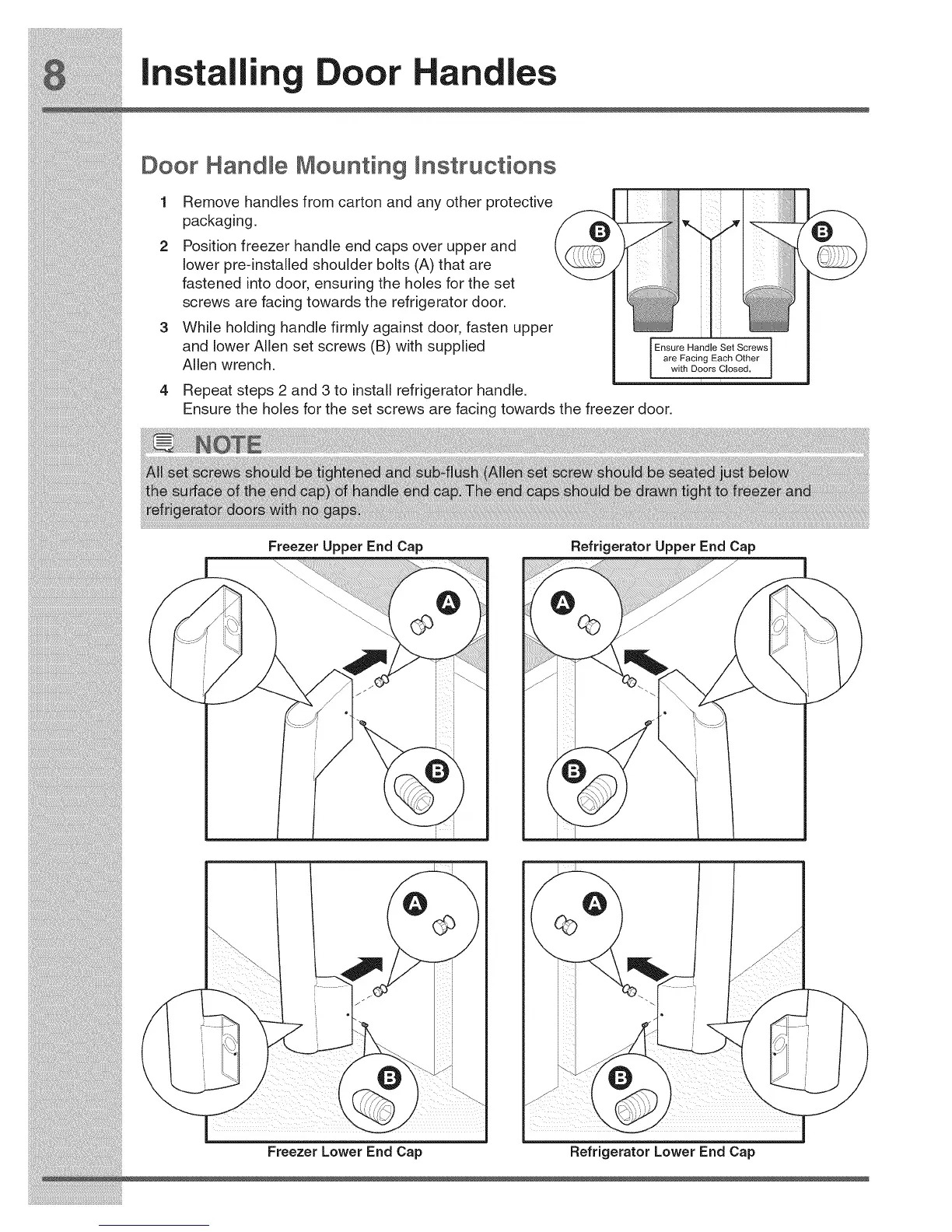

Door Handle Mounting Instructions
1 Remove handles from carton and any other protective
packaging.
2 Position freezer handle end caps over upper and
lower pre-installed shoulder bolts (A) that are
fastened into door, ensuring the holes for the set
screws are facing towards the refrigerator door,
3 While homing handle firmly against door, fasten upper
and lower Allen set screws (B) with supplied
Allen wrench.
4
I Ensure Handle Set Screws
are Facing Each Other
with Doors Closed,
Repeat steps 2 and 3 to install refrigerator handle.
Ensure the holes for the set screws are facing towards the freezer door.
Freezer Upper End Cap Refrigerator Upper End Cap
Freezer Lower End Cap Refrigerator Lower End Cap
To Next Page
