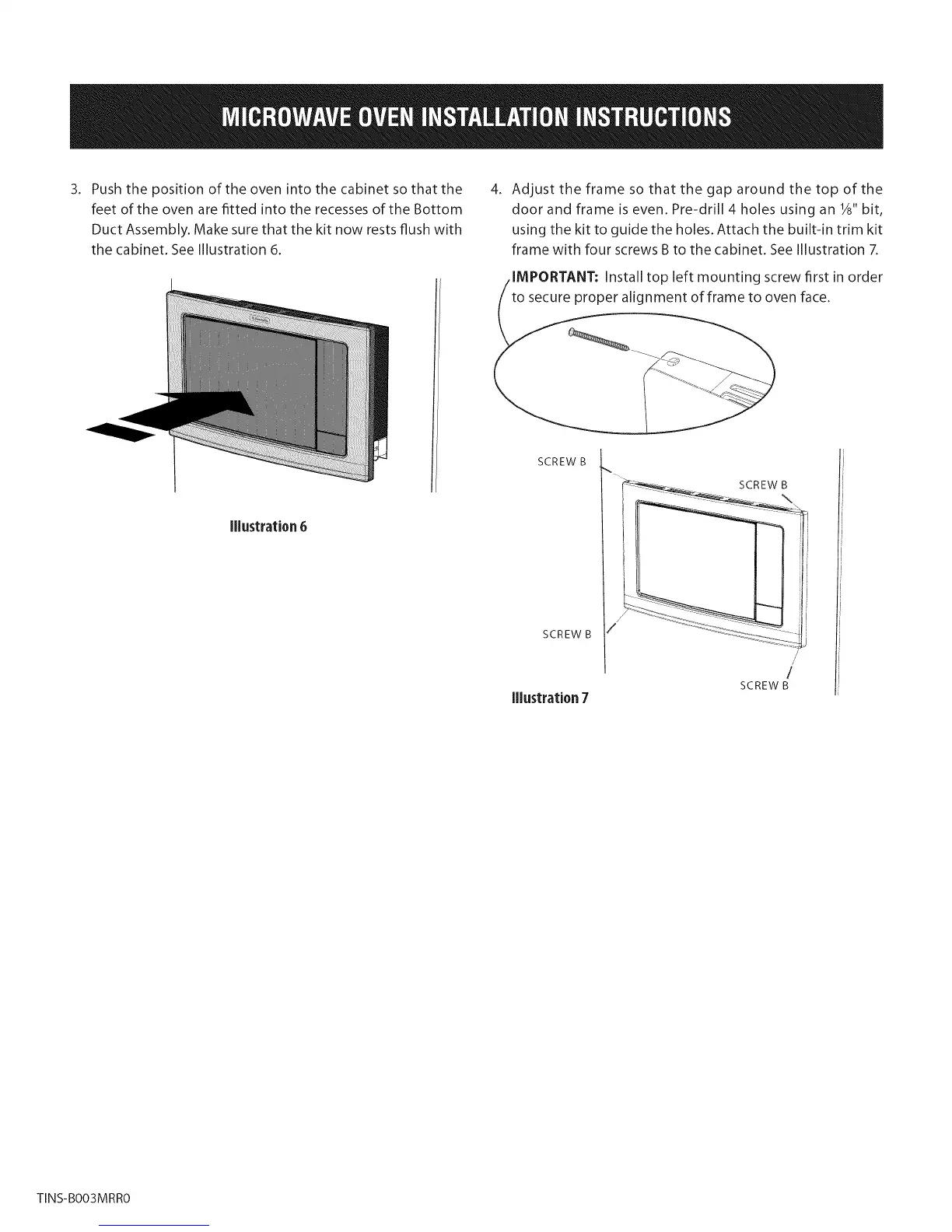

3. Push the position of the oven into the cabinet so that the 4.
feet of the oven are fitted into the recesses of the Bottom
Duct Assembly. Make sure that the kit now rests flush with
the cabinet. See Illustration 6.
Illustration 6
Adjust the frame so that the gap around the top of the
door and frame is even. Pre-drill 4 holes using an 1_,,bit,
using the kit to guide the holes. Attach the built-in trim kit
frame with four screws B to the cabinet. See Illustration 7.
/IMPORTANT: Install top left mounting screw first in order
/
en face.
SCREW B
SCREW B
_ _ SCREW B
Illustration 7
SCREW B
TINS-BOO3MRRO
