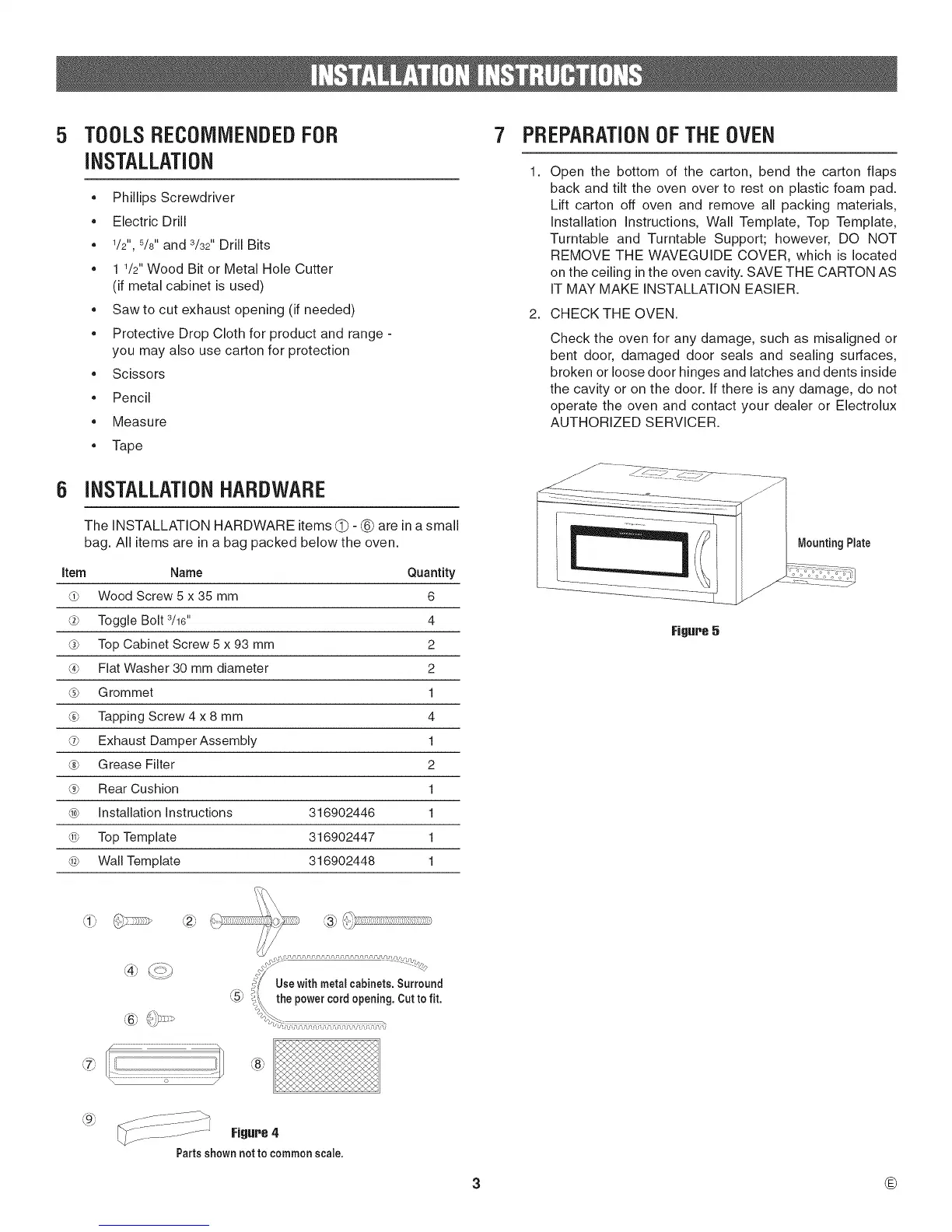

5 7 PREPARATIONOFTHEOVENTOOLSRECOMMENDEDFOR
iNSTALLATiON
= Phillips Screwdriver
• Electric Drill
® 1/2", s/8" and 3/32"Drill Bits
1 1/2"Wood Bit or Metal Hole Cutter
(if metal cabinet is used)
Saw to cut exhaust opening (if needed)
Protective Drop Cloth for product and range -
you may also use carton for protection
• Scissors
Pencil
Measure
Tape
1.
Open the bottom of the carton, bend the carton flaps
back and tilt the oven over to rest on plastic foam pad.
Lift carton off oven and remove all packing materials,
Installation Instructions, Wall Template, Top Template,
Turntable and Turntable Support; however, DO NOT
REMOVE THE WAVEGUIDE COVER, which is located
on the ceiling in the oven cavity. SAVE THE CARTON AS
IT MAY MAKE INSTALLATION EASIER.
2. CHECK THE OVEN.
Check the oven for any damage, such as misaligned or
bent door, damaged door seals and sealing surfaces,
broken or loose door hinges and latches and dents inside
the cavity or on the door. If there is any damage, do not
operate the oven and contact your dealer or Electrolux
AUTHORIZED SERVICER.
6 INSTALLATIONHARDWARE
The INSTALLATION HARDWARE items (_ - @ are in a small
bag. All items are in a bag packed below the oven.
Item Name Quantity
Wood Screw 5 x 35 mm 6
Toggle Bolt 3/16" 4
G Top Cabinet Screw 5 x 93 mm 2
Flat Washer 30 mm diameter 2
@ Grommet 1
® Tapping Screw4 x 8 mm 4
Exhaust Damper Assembly 1
® Grease Filter 2
® Rear Cushion 1
® Installation Instructions 316902446 1
® Top Template 316902447 1
@ Wall Template 316902448 1
Figure 5
Mounting Plate
k!J
k7_J
S_
k6P_ .....
\J
Figure 4
Partsshownnotto commonscale.
3 ®
