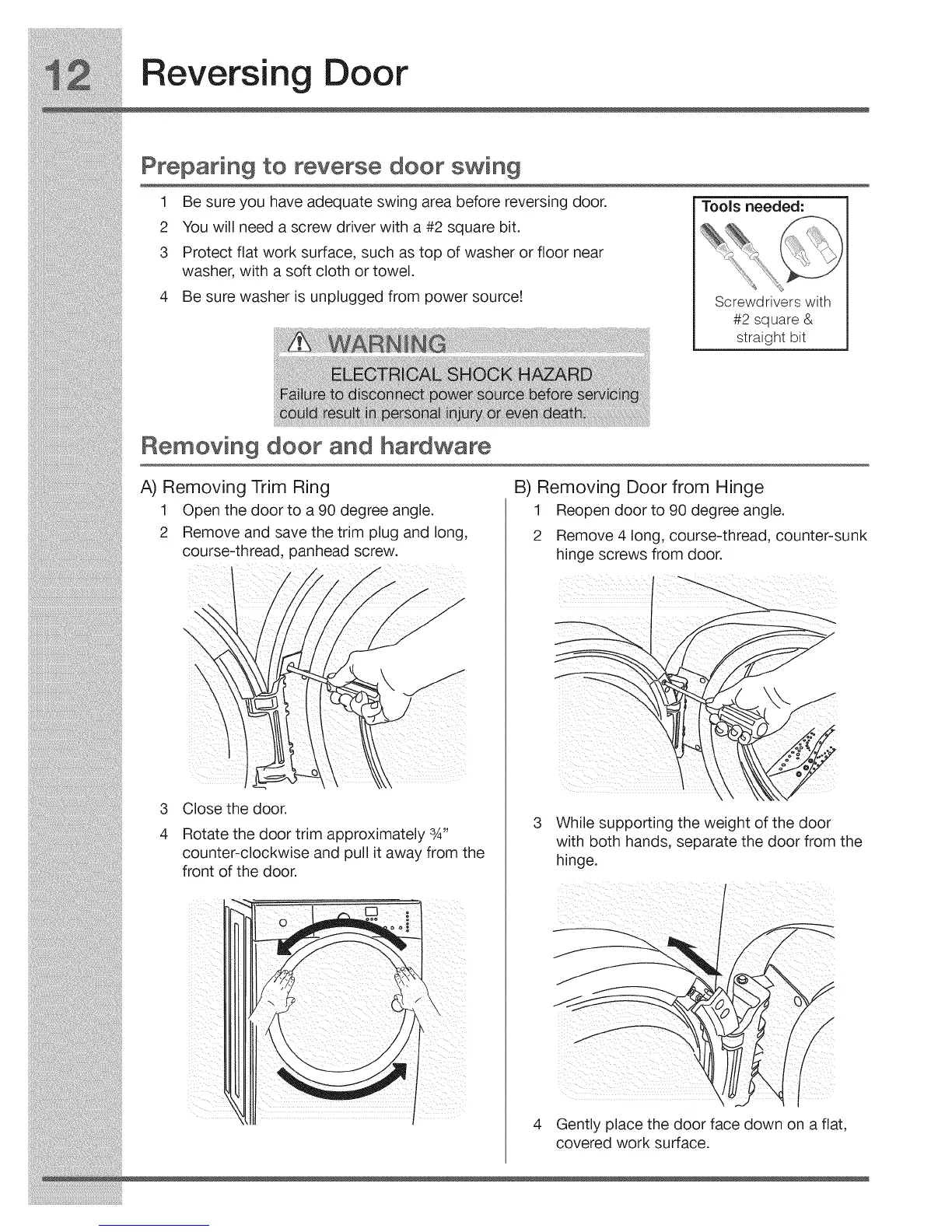

Reversing Door
Preparing to reverse door swing
1 Be sure you have adequate swing area before reversing door.
2 You will need a screw driver with a #2 square bit.
3 Protect flat work surface, such as top of washer or floor near
washer, with a soft cloth or towel.
4 Be sure washer is unplugged from power source!
Tools needed:
Screwdrivers with
#2 square &
straight bit
Removing door and hardware
A) Removing Trim Ring
1 Open the door to a 90 degree angle.
2 Remove and save the trim plug and long,
course-thread, panhead screw.
3
4
Close the door.
Rotate the door trim approximately 3A"
counter-clockwise and pull it away from the
front of the door.
B) Removing Door from Hinge
1 Reopen door to 90 degree angle.
2 Remove 4 long, course-thread, counter-sunk
hinge screws from door.
While supporting the weight of the door
with both hands, separate the door from the
hinge.
f
/
/
1
4 Gently place the door face down on a flat,
covered work surface.
