6 Aeropro PCB 230V/110V motor
6.1 Introduction
Aeropro PCB 230V is a new PCB to support the drive of a 230VAC motor mounted in the Aeropro
nozzle. The motor’s continuous current consumption is maximum 1A. The PCB can also be used without
nozzle motor, and then only support a wired remote control between the cleaners bent end and the cleaners
control unit.
6.2 PCB variants
The 230V variant use single sided PCB. Low voltage variant (100V for USA, Japan) use double sided PCB
together with UL approved coating.
6.3 Electrical overview

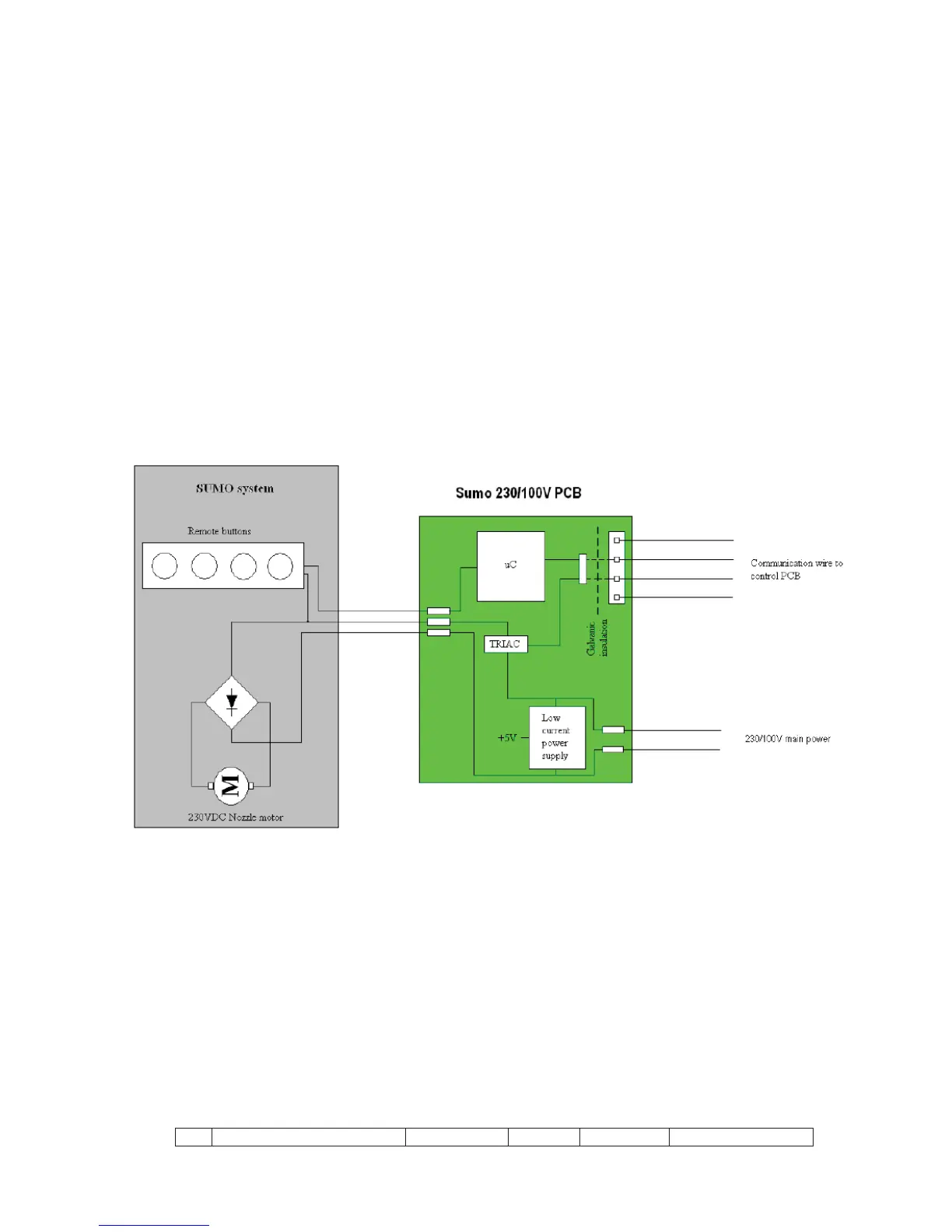

Sketch:
