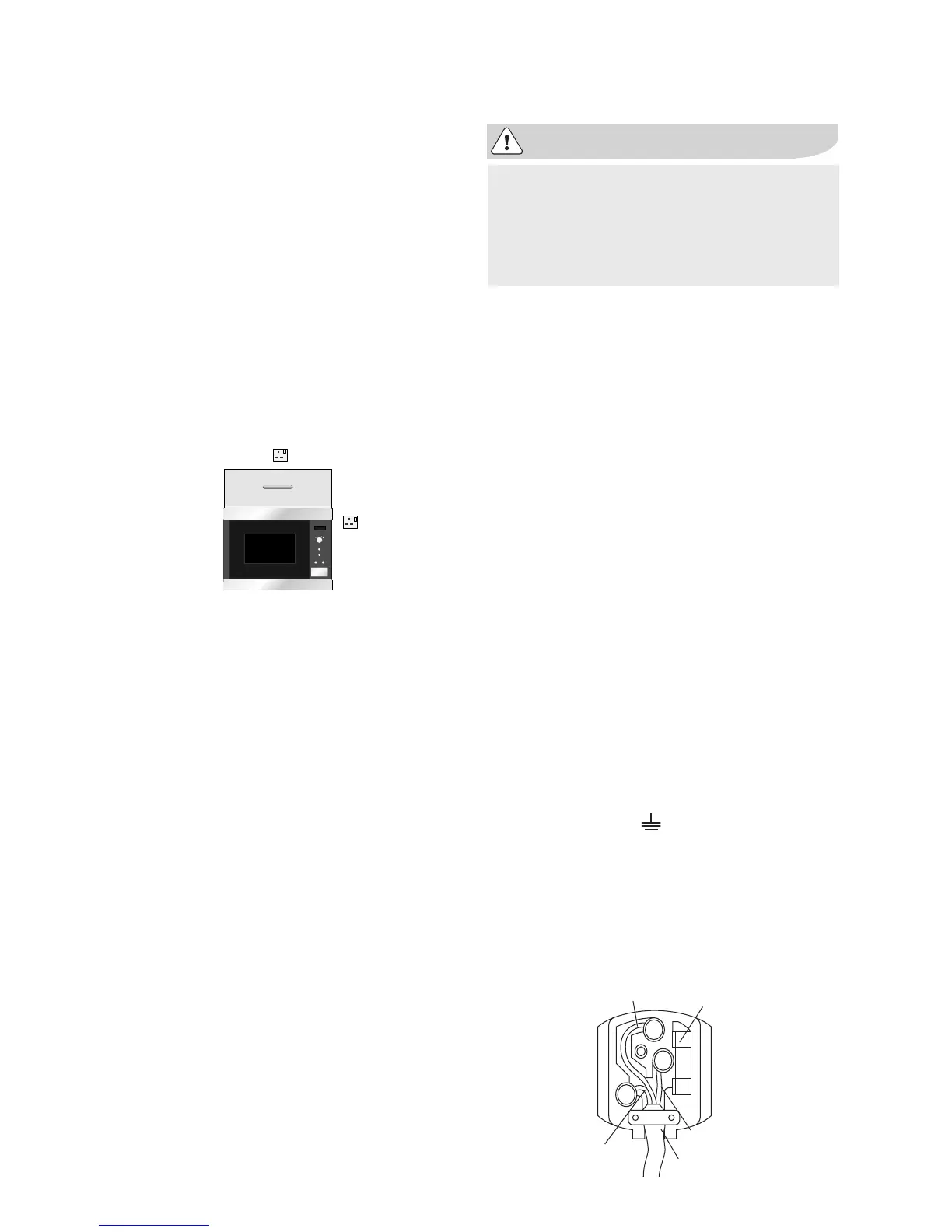

Connecting the appliance to
the power supply
• The electrical outlet should be
readily accessible so that the unit
can be unplugged easily in an
emergency. Or it should be possible
to isolate the oven from the supply
by incorporating a switch in the
fixed wiring in accordance with the
wiring rules.
• The socket should not be
positioned behind the cupboard.
• The best position is above the cupboard,
see (A).
• Connect the appliance to a single
phase 230 - 240 V/50 Hz alternating
current via a correctly installed earth
socket.
• If the appliance is to be operated
in a non-European country, the
supply voltage, current type and
frequency of the appliance
indicated on the rating plate must
correspond with the specification
of your power supply. The rating
plate can be found on the inside
face of the control panel.
• The power supply cord may only
be replaced by an electrician.
• Before installing, tie a piece of string
to the power supply cord to facilitate
connection to point (A) when the
appliance is being installed.
• When inserting the appliance into the
high-sided cupboard, DO NOT crush
the power supply cord.
• Do not immerse the power supply
cord or plug in water or any other
liquid.
Electrical Connections
WARNING: THIS APPLIANCE
MUST BE EARTHED.
The manufacturer declines any
liability should this safety measure
not be observed.
• If the plug that is fitted to your
appliance is not suitable for your
socket outlet, it must be cut off and
the appropriate plug fitted.
• Remove the fuse from the cut off
plug. The cut off plug should then be
disposed of to prevent the hazard of
shocks in case it should be plugged
into a 13 Amp socket in another part
of your home.
IMPORTANT
The wires in the mains lead are coloured
in accordance with the following code:
GREEN AND YELLOW EARTH
BLUE NEUTRAL
BROWN LIVE
If you fit your own plug, the colours of
the wires in the mains lead of your
appliance may not correspond with the
markings identifying the terminals in your
plug, proceed as follows:
• Connect the green and yellow (earth)
wire to the terminal in the plug which
is marked with the letter ”E” or the
earth symbol ( ) or coloured green
and yellow.
• Connect the blue (neutral) wire to the
terminal in the plug which is marked
with the letter ”N” or coloured black.
• Connect the brown (live) wire to the
terminal in the plug which is marked
with the letter ”L” or coloured red.
