suitable power socket. If you require a direct
connection to the electric network (mains), it
will be necessary to fit between the appliance
and the mains an omnipole switch, with a
minimum gap between contacts of 3 mm,
suitable for the required load and in compli-
ance with rules in force. The green & yellow
ground wire must not be interrupted by the
switch and it should be 2-3 cm. longer than
the other cables.
The mains cable and plug are to be connec-
ted to a shockproof socket (230 V~, 50 Hz).
The shockproof socket must be installed in
accordance with the regulations.
The following types of mains cable are suit-
able, taking the necessary rated cross sec-
tion into account: H07 RN-F, H05 RN-F, H05
RR-F, H05 VV-F, H05 V2V2-F (T90), H05
BB-F.
The connection cable must in any case be
laid out so that at no point does it reach 50°C
(over room temperature).
After the connection has been carried out,
the heating elements must be tested by be-
ing operated for about 3 minutes.

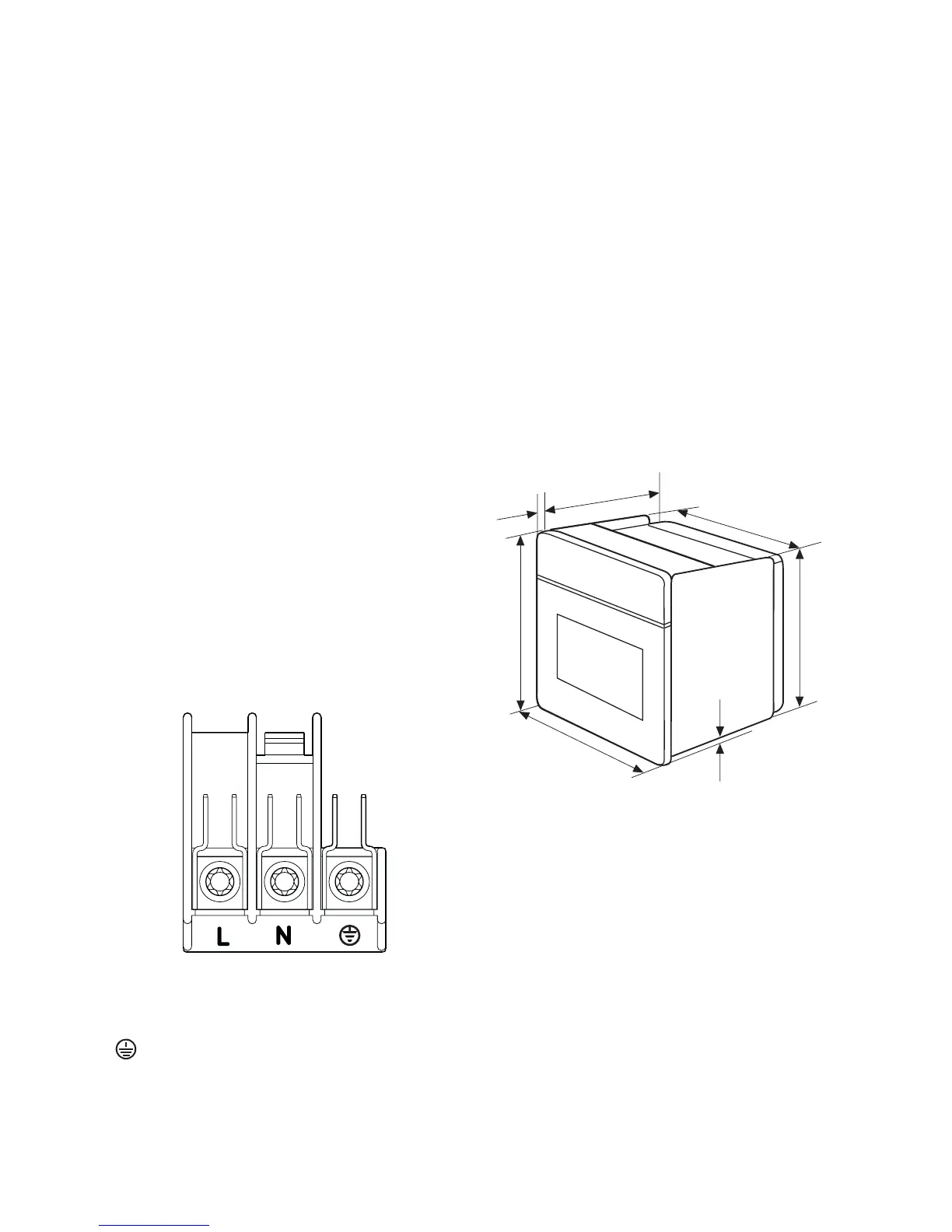

Terminal block
The oven is fitted with an easily accessible
terminal block which is designed to operate
with a single phase power supply of 230 V.
Letter L Live terminal
Letter N Neutral terminal
or E
Earth terminal
Building In
For problem-free functioning of the built-in
appliance, the kitchen unit or the recess into
which the appliance is built must have suita-
ble dimensions.
In accordance with the regulations in force,
all parts which ensure the shock protection
of live and insulated parts must be fastened
in such a way that they cannot be undone
without tools.
These also include the fixing of any end walls
at the beginning or end of a line of built-in
units.
The shock protection must in any case be
ensured by the building in of the appliance.
The appliance can be placed with its back or
a side wall against higher kitchen units, ap-
pliances or walls. However, only other appli-
ances or units of the same height as the ap-
pliance can be placed against the other side
wall.
Overall oven dimensions
594
2
20
570
590
540
560
In column building-in
The recess must have the dimensions shown
in the picture below.
18 electrolux
