Electrolux EOE7C31X - Securing the Appliance to the Cabinet; Electrical Installation; Cable

min. 550
20
595
+-1
18
590
min. 560
594
589
114
21548
3
5
70
60
520
60
20
198
523

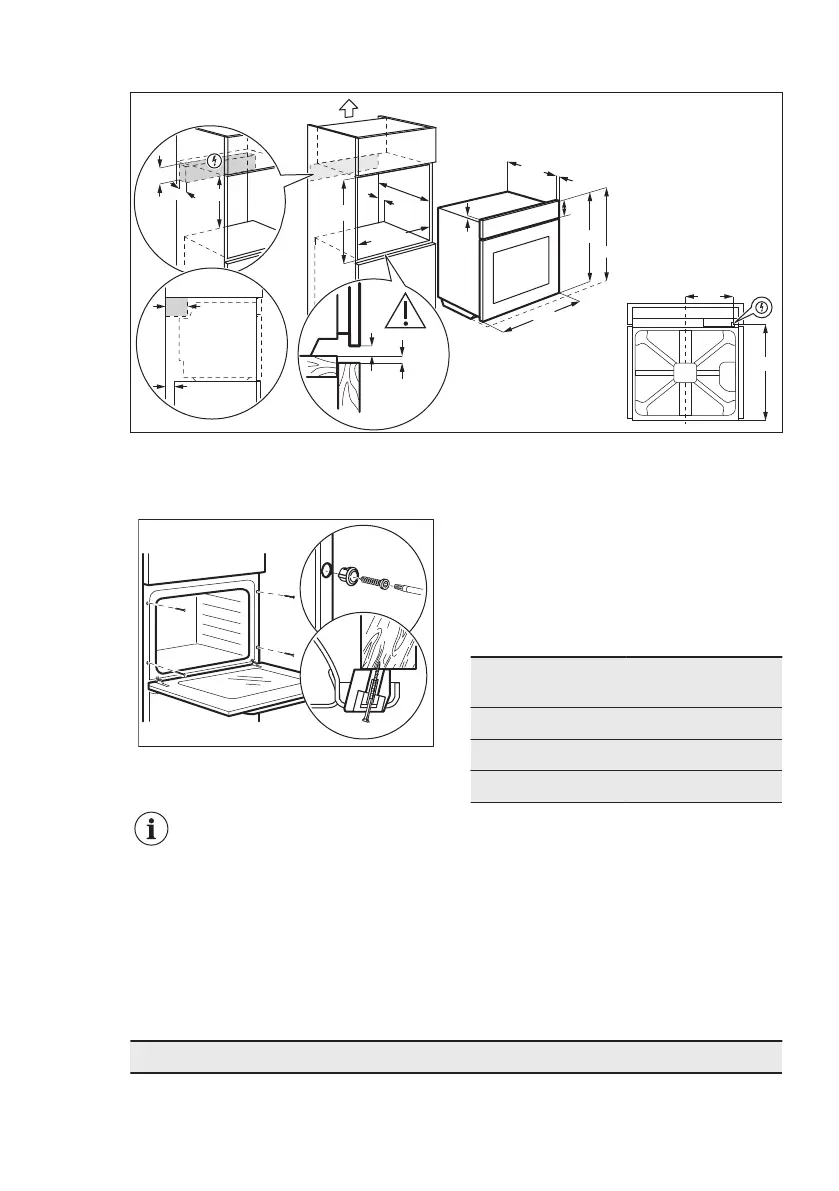

14.2 Securing the appliance to
the cabinet
A
B
14.3 Electrical installation
The manufacturer is not
responsible if you do not
follow the safety precautions
from the Safety chapters.
This appliance is supplied with a main
plug and a main cable.
14.4 Cable
Cable types applicable for installation or
replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05
VV-F, H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the
total power on the rating plate. You can
also refer to the table:
Total power (W) Section of the ca‐
ble (mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable)
must be 2 cm longer than phase and
neutral cables (blue and brown cables).
15. ENERGY EFFICIENCY
15.1 Product Fiche and information according to EU 65-66/2014
Supplier's name Electrolux
ENGLISH 37
